Startdrive commissioning tool
2.3 User interface - parameterization
Commissioning with Startdrive
Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
41
Properties and parameters of the selected object are displayed in the inspector window. You
can edit these properties and parameters. For example, you can specify non-specified S120
drive objects inserted in the device view.
The information and parameters in the inspector window are subdivided into various
information types, which are displayed as main tab
① in the inspector window:
● Properties
● Info
● Diagnostics

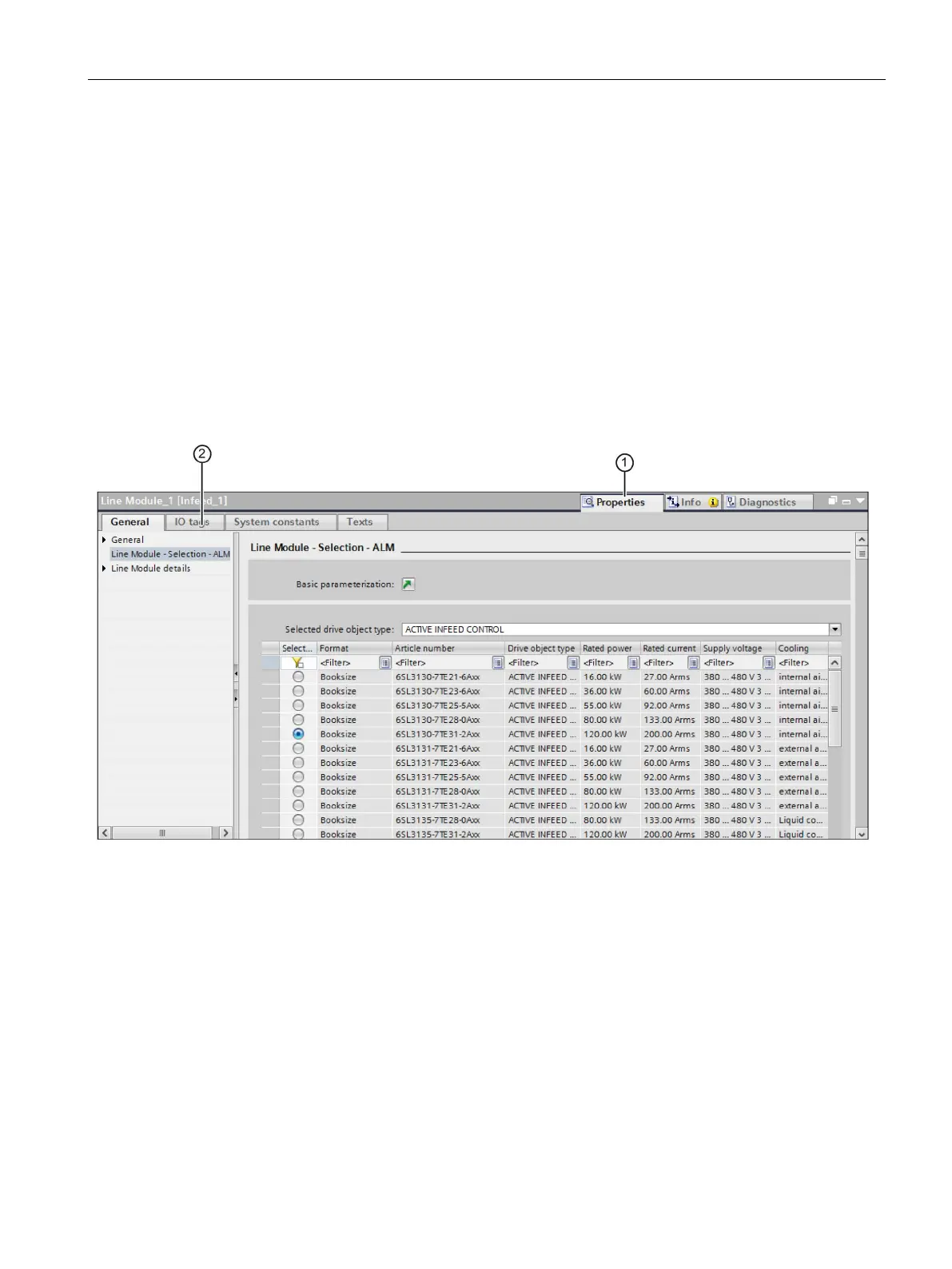

Figure 2-8 Inspector window
Showing or enlarging the inspector window
There are several options available for showing (hiding) the inspector window:
● Use the regular window icons (top right-hand side in the header of the window).
- or -
● Select a non-specified component in the device view and open the "Properties" shortcut
menu.
