Commissioning
4.4 Creating a project offline in Startdrive
Commissioning with Startdrive
130 Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
Inserting the CBE20 in the Control Unit
The CBE20 is a versatile Communication Board that can be used in Startdrive with the
"SINAMICS-Link" communication profile.
1. Open "Supplementary system components > Communication Boards" in the hardware
catalog.
2. Select the "CBE20 Communication Board" in the device overview.
3. Drag the "Communication Board CBE20" into the device view into the light gray border
area of the Control Unit.
The CBE20 is inserted in the drive.

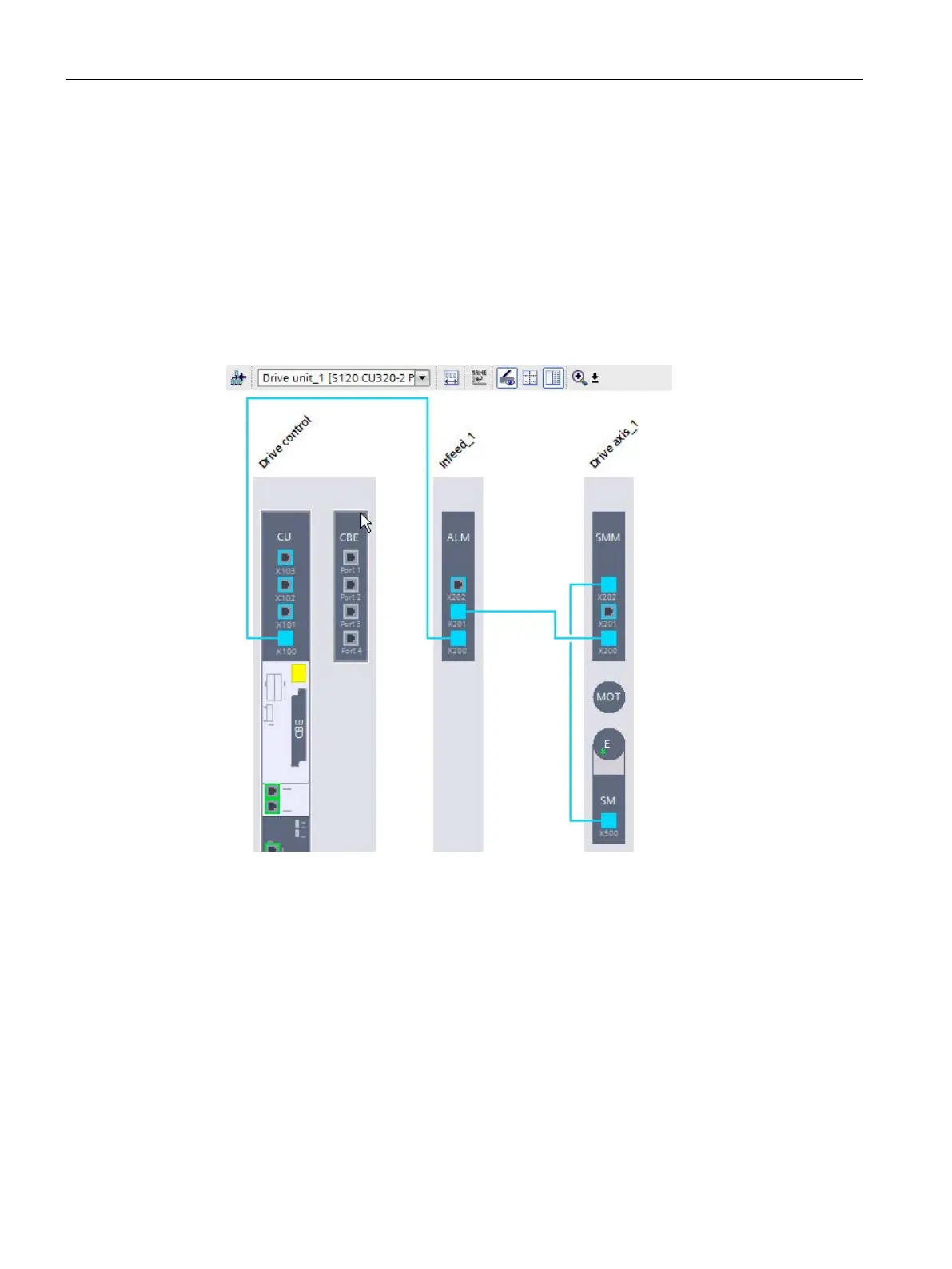

Figure 4-40 CBE20 Communication Board
The CBE20 does not have to be specified any further.
Adding a Terminal Module
Requirement
● A project has been created.
● A Control Unit is contained in the device configuration.
