Commissioning
4.4 Creating a project offline in Startdrive
Commissioning with Startdrive
Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
103
Inserting and specifying a Motor Module
Using the hardware catalog, you insert a Motor Module in an unspecified form.
1. Open "Motor Modules" in the hardware catalog.
A selection can be made from the following Motor Modules:
– Single Motor Modules
– Double Motor Modules
2. Select the required, unspecified Motor Module in the device overview.

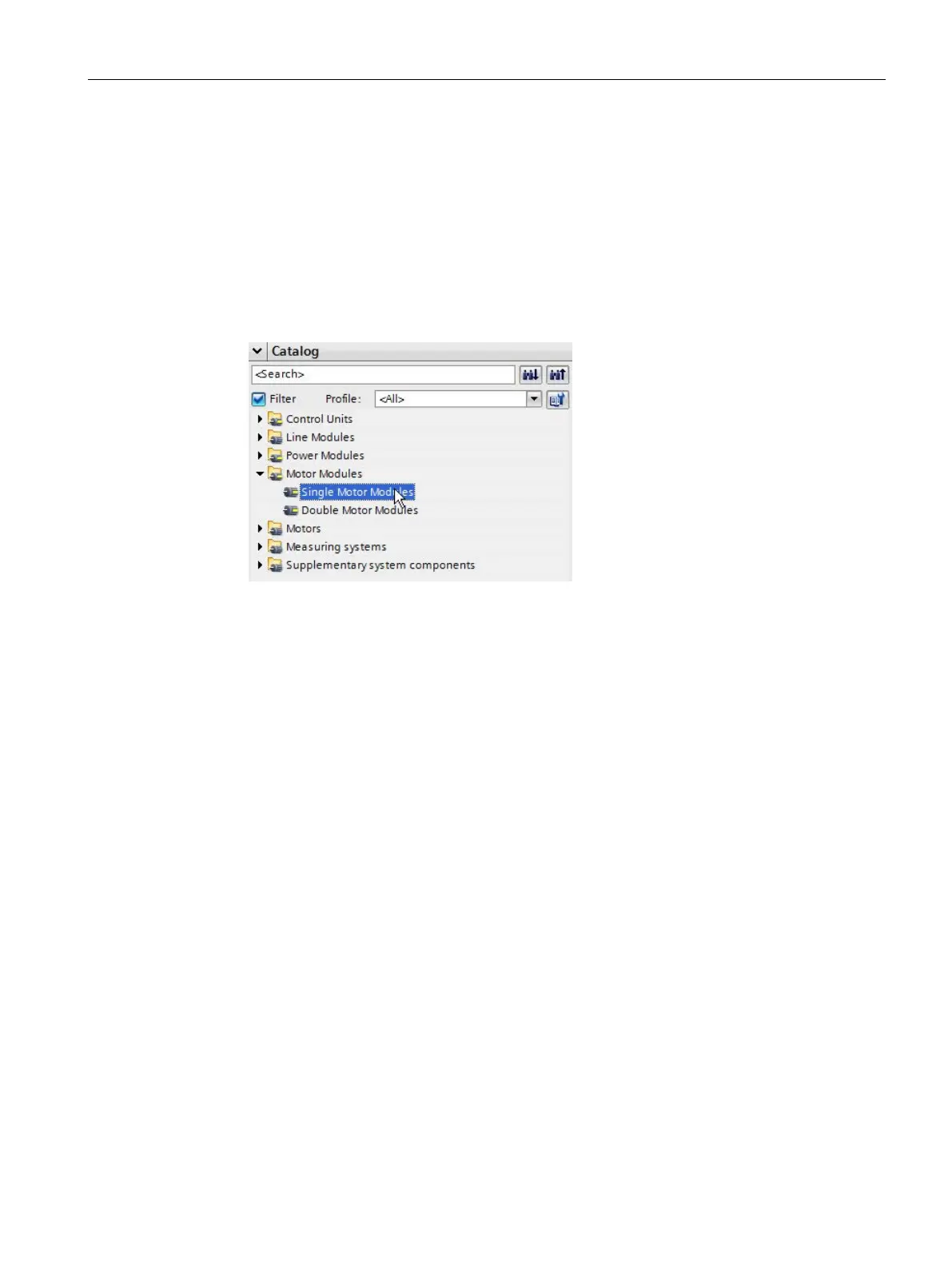

Figure 4-18 Motor Module selected
