Commissioning
4.10 Safety Integrated commissioning
Commissioning with Startdrive
Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
251
4.10.4.8
Communication via SIC/SCC
The following shows the tests of two different brake types:
Test of a motor holding brake

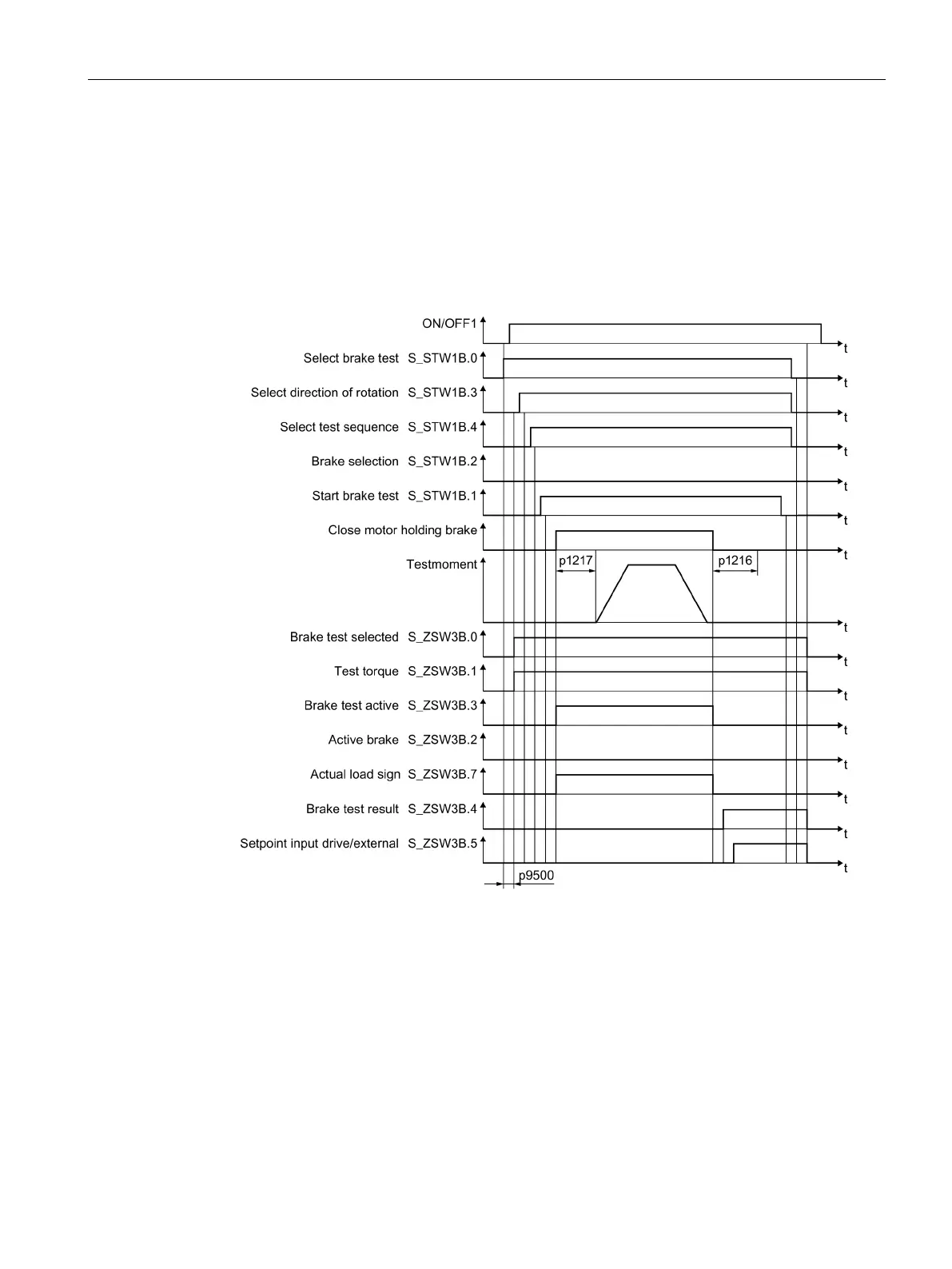

The following figure shows the communication via SIC and SCC during the test of a motor
holding brake:
