Commissioning
4.5 Establishing an online connection to the drive unit
Commissioning with Startdrive
146 Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
Comparing IP addresses
IP address and the subnet mask in the project
After you have assigned an IP address to the drive, check the IP address and subnet mask
set in the project. An online connection can only be established when the settings in the
project and in the device are identical.
To compare the address, proceed as follows:
1. Search for the drive at "Online access" and "Update accessible devices".
The drive is displayed with IP address and subnet mask.
2. Switch to the device view.
3. Select the PROFINET interface.
4. In the Inspector window, select "Properties " > "General".
5. Click "Ethernet addresses".
The properties of the interface are displayed.
6. Compare the IP address and subnet mask with the settings under "Online access".

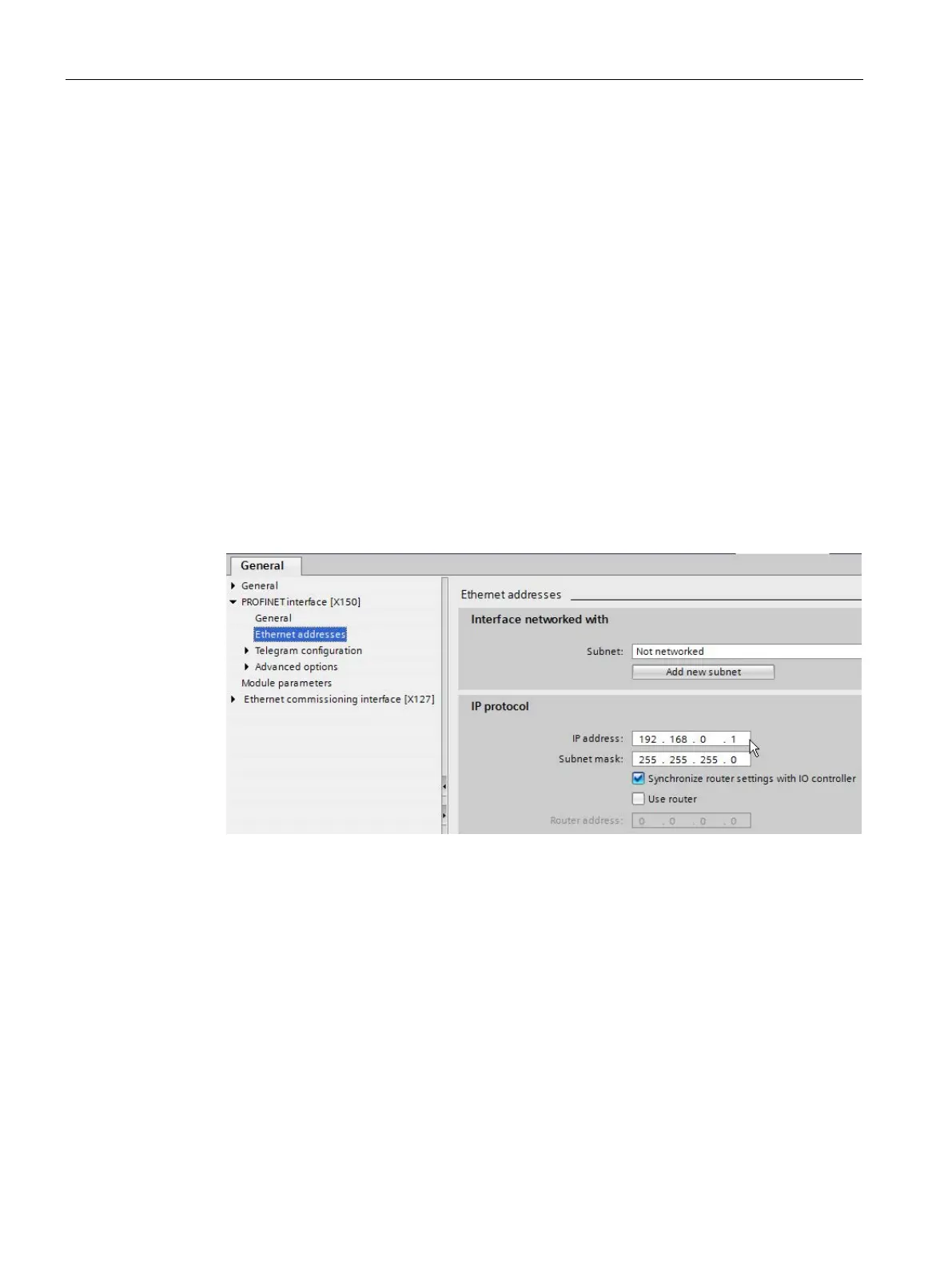

Figure 4-51 IP address in the project
If both settings are the same, you can establish an online connection.
