Siemens WEBUI - Figure 2-9 Remote Setup Webui; Track - Out-Of-Service

SYSTEM VIEW
2-7
SIG-QG-20-02 JANUARY 2021
Version : A.2

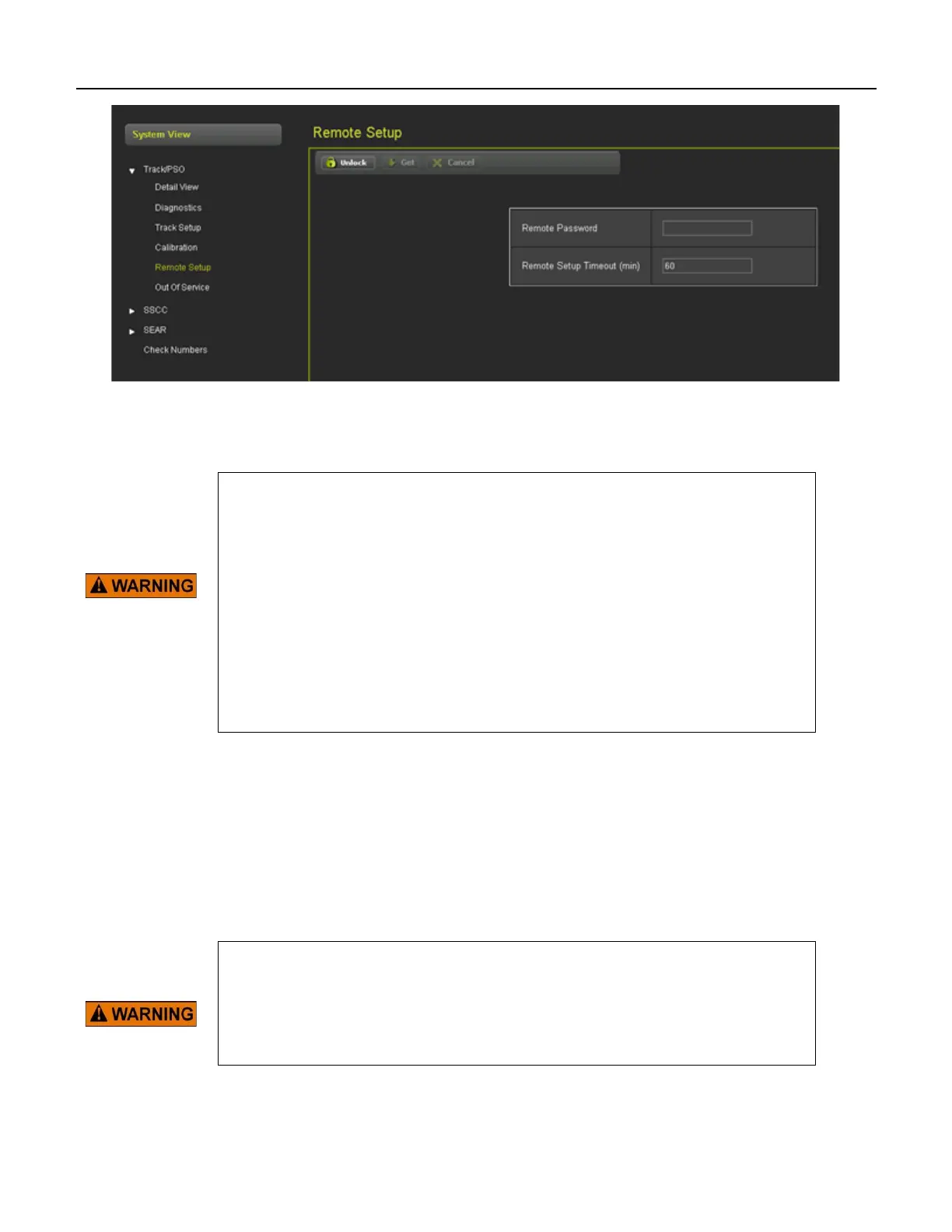

Figure 2-9 Remote Setup WebUI
2.6 TRACK – OUT-OF-SERVICE
WARNING
THE RAILROAD PROCEDURES GOVERNING HOW TO TAKE A TRACK
CIRCUIT OUT OF SERVICE SHALL BE FOLLOWED. THE
INSTRUCTIONS IN THIS SECTION MAY BE FOLLOWED ONLY IF
ALLOWED BY THE RAILROAD.
REQUIRED OPERATIONAL TESTS SHALL BE PERFORMED IN
ACCORDANCE WITH RAILROAD PROCEDURES WHEN RESTORING
TRACKS TO SERVICE.
THE RAILROAD PROCEDURES FOR APPLYING TEMPORARY
JUMPERS MUST BE FOLLOWED WHEN ENERGIZING THE “OUT OF
SERVICE” INPUT(S).
The WebUI can be used to take the GCP approach circuit and the island circuit out of service. There are
three methods of using the Out of Service feature on the GCP. The method used is selected in the GCP
Programming by using OOS Control parameter. The options are:
• Display
• Display + OOS IPs
• OOS IPs
• 4000/5000 Case OOS IP
WARNING
INPUTS FOR “OUT OF SERVICE” SHOULD BE WIRED IN A
PERMANENT MANNER IN ACCORDANCE WITH CIRCUIT PLANS. DO
NOT USE TEST TERMINALS OR SWITCHES THAT CAN VIBRATE
CLOSED TO ENERGIZED OOS INPUTS.
