REPORTS & LOGS
5-5
SIG-QG-20-02 JANUARY 2021
Version : A.2
5.3 TRAIN HISTORY LOG
The train history log contains a log of the last 100 train moves. The log shows the following:
• Track - which track the train was detected on.
• WT – the recorded warning time in seconds.
• Det Spd – the detected train speed.
• Isl Spd – the train speed at the island.
• Avg Spd – the average train speed.
If the units are set to standard in the Site Configuration, the speeds are shown in mph. If the units are set
to metric, the speeds are shown in km/h.

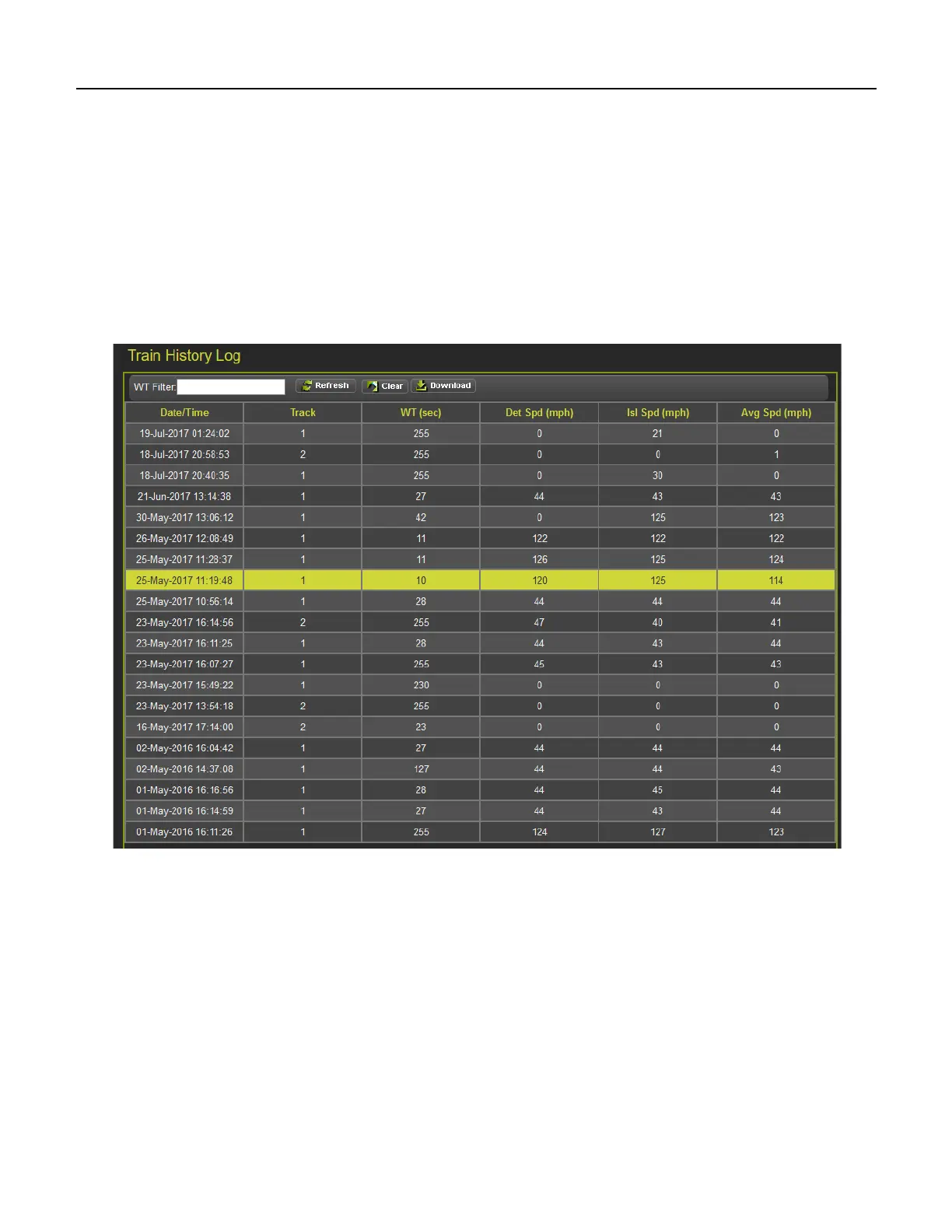

Figure 5-9 WebUI Train History Log
Select the Clear button to clear the event in the train history.
