level by Universal Knob. The threshold voltage level is for decoding, and it
will be regard as the trigger voltage level when set the trigger type to
serial.
d. Press the softkey to return previous menu.

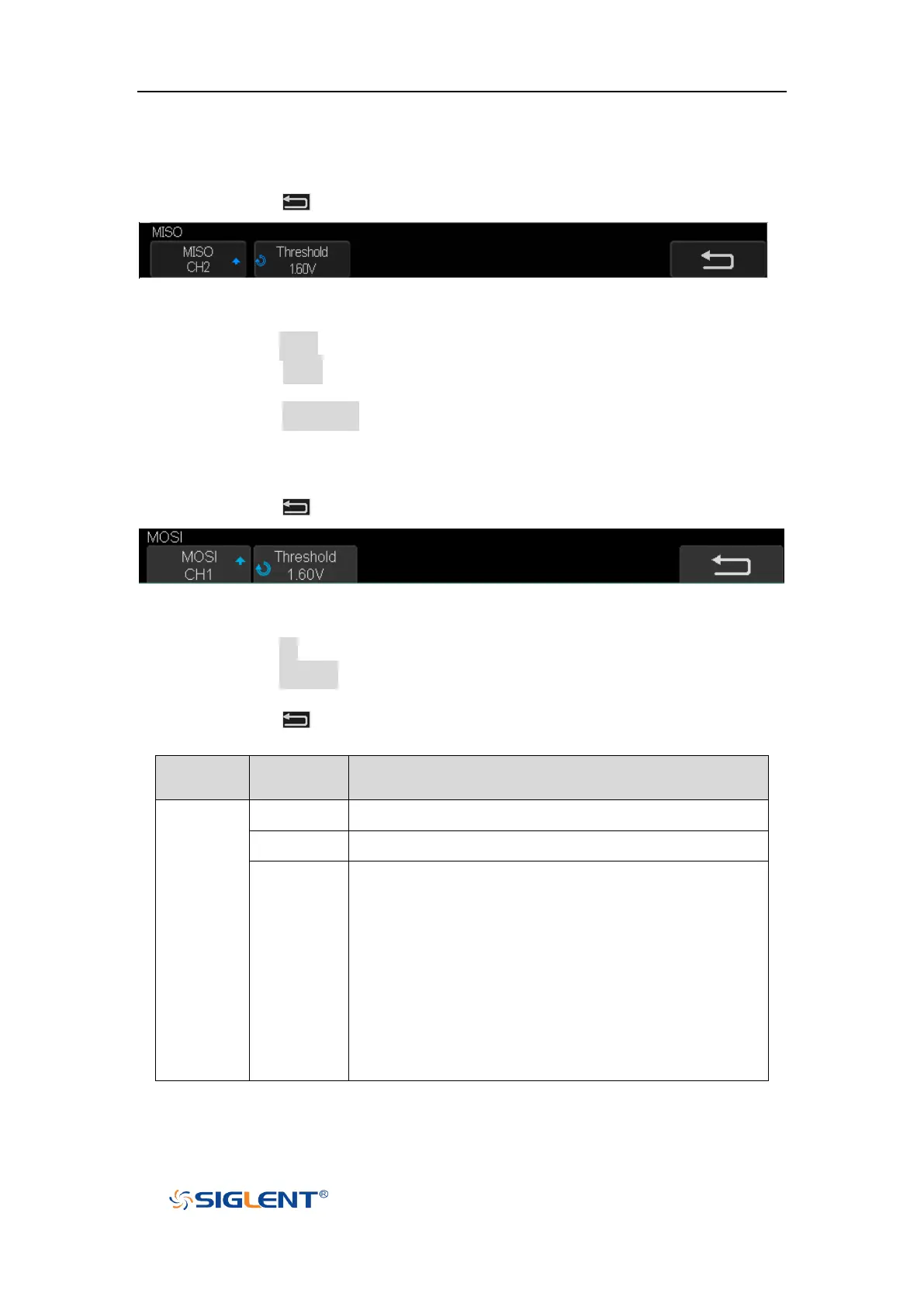

Figure 48 MISO Menu
7. Set MOSI:
a. Press the MOSI softkey to enter the MOSI menu.
b. Press the MOSI softkey to select the channel that is connected to the SPI
MOSI signal.
c. Press the Threshold softkey to set the SPI MOSI signal’s threshold voltage
level by Universal Knob. The threshold voltage level is for decoding, and it
will be regard as the trigger voltage level when set the trigger type to
serial.
d. Press the softkey to return previous menu.
Figure 49 MOSI Menu
8. Set CS:
a. Press the CS softkey to enter the MOSI menu.
b. Press the Cs Type softkey to select the chip select type.
c. Modify the Cs type’s value.
d. Press the softkey to return previous menu.
low voltage level of CS signal is available
high voltage level of CS signal is available
If the time between two edges of clock signal is less
than (or equal to) the value of timeout, the signal
between the two edges is treat as a frame. The
range of clock timeout is 100ns-5ms.
This setting is suitable for case where CS signal is
not connected, or the number of oscilloscope
channels is insufficient (such as 2-channel
oscilloscopes).
Table 1 Menu Explanations of the CS Type Parameters
