SDS1000X-E&SDS1000X-U User Manual

101

WWW.SIGLENT.COM

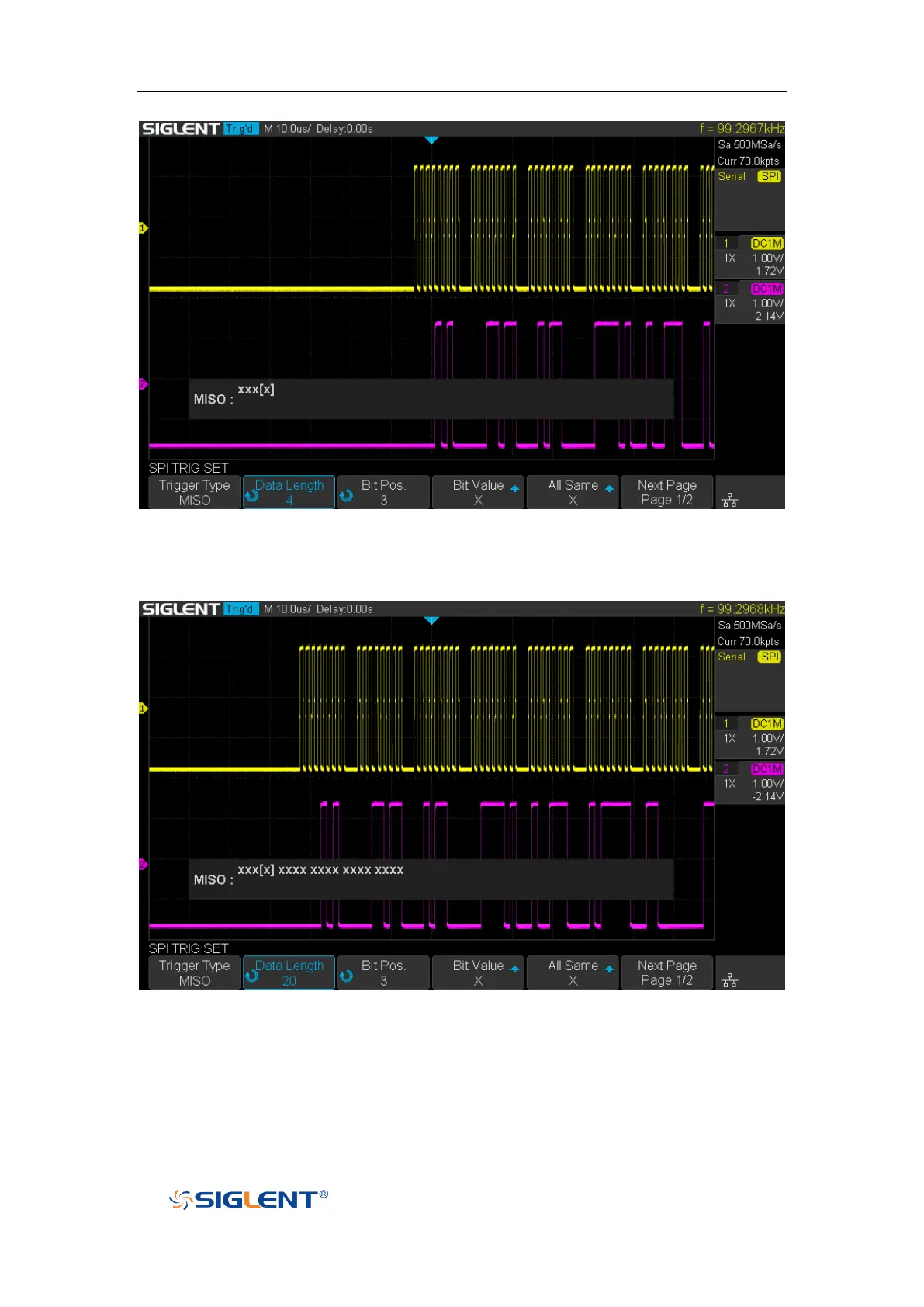

If the data width is set to be greater than 8 bits (such as 16 bits), the clock idle time

between 8-bit data packets T2, and then set the timeout time to a value between

T1/2+T2 and T3.
