Operating Manual - English Triax QUATTRO
- 92 - Copyright Silca 2011
1
7.14 SAFETY MICROSWITCH REPLACEMENT
1. Remove the rear metal plate.
2. Loosen the two screws (J1) and remove the microswitch support plate (Fig. 46).
3. Disconnect the wires connecting the two microswitches (J4).
4. Loosen the two nuts (J7) and replace the faulty part.
5. Secure the microswitches with the two nuts and connect the two wires (the wire marked SX on the left
and the wire marked DX on the right).
6. Replace the microswitch support plate with the screws (J1) without tightening them.
7. Adjust the position of the plate so that when the safety shield (V) is moved the microswitches click.
8. Secure the microswitch plate by tightening the screws (J1).

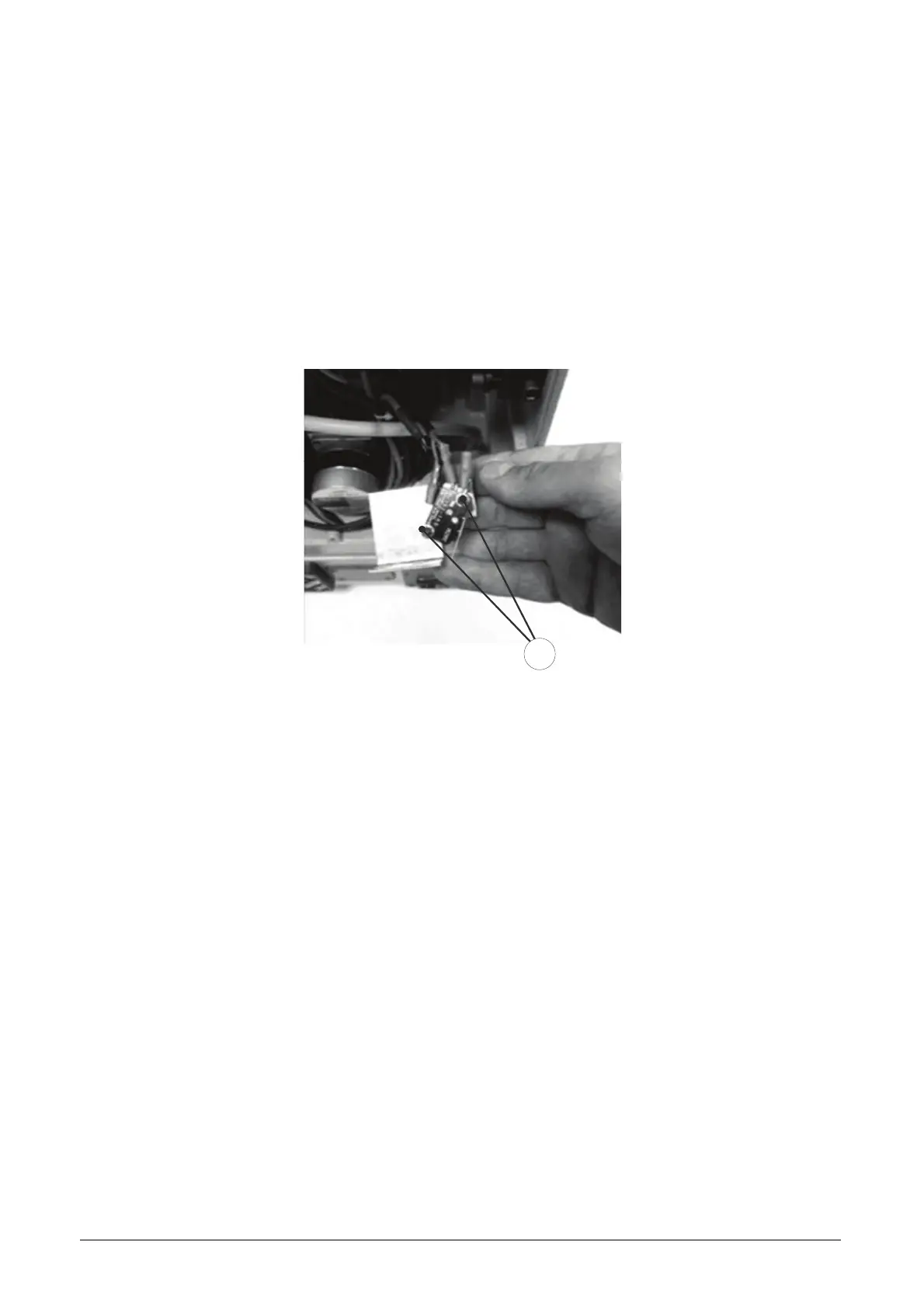

J7
Fig. 48
