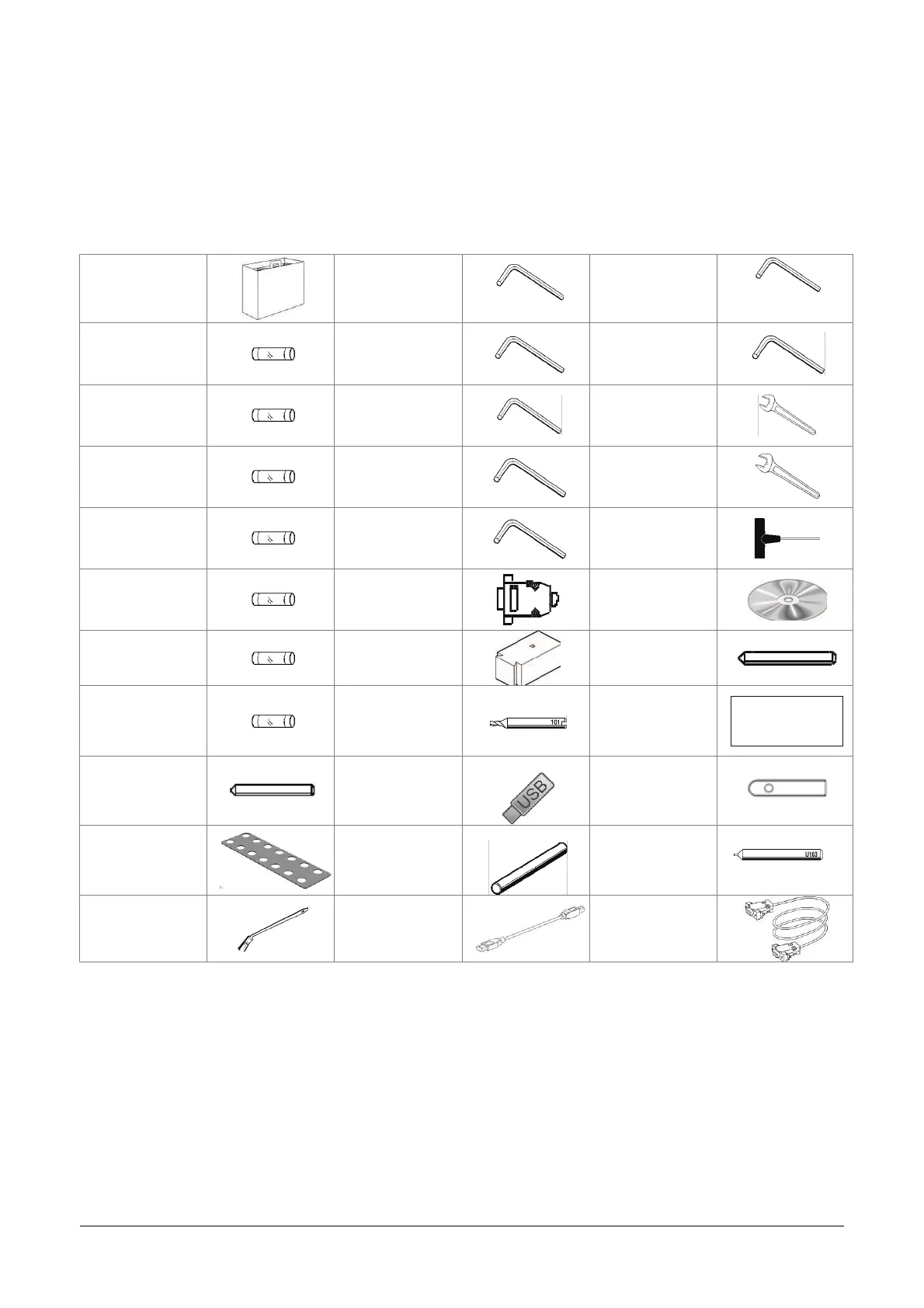

1.2 ACCESSORIES PROVIDED
Triax QUATTRO comes with a set of accessories for use and maintenance (tools, hex keys, fuses ...) held in a
special tool box:
Tool box
2 mm hex key
6 mm hex key
1.6 Amp delayed
fuse (230V)
D904184ZR
2.5 mm hex key
5 mm hex key
2 Amp delayed fuse
D912423ZR
3 mm hex kex
10 mm spanner
315 mA delayed fuse
D911912ZR
4 mm hex key
13 mm spanner
4 Amp delayed fuse
D908726ZR
1.5 mm hex key
2.5 mm T-shaped
hex key
6.3 Amp delayed fuse
D910652ZR
Z4 serial test
receptacle
D
916661ZR
“SILC
A ENGRAVING
PROGRAM” CD
8 Amp delayed fuse
D917515ZR
Calibration template
Z5
W146 cutter
D734267ZB
146
5 Amp delayed fuse
(120V)
D917042ZR
W101 cutter
D709238ZB
Adhesive to attach
to safety shield
ATTENTION
DANGEROUS
MOBILE PARTS
W500 cutter
D738590ZB
USB PEN
D937449ZR
Steel bar
Adhesive to attach
to tool housing
D937255ZR
Calibration pin
D904174ZR
Tracer point U103
D911108ZR
Bent brush
D906935ZZ
USB-USB cable
D929095ZR
Serial cable
D909281ZR
