Silca Triax Quattro - Work Station Description

Operating Manual - English Triax QUATTRO
- 8 - Copyright Silca 2011
1

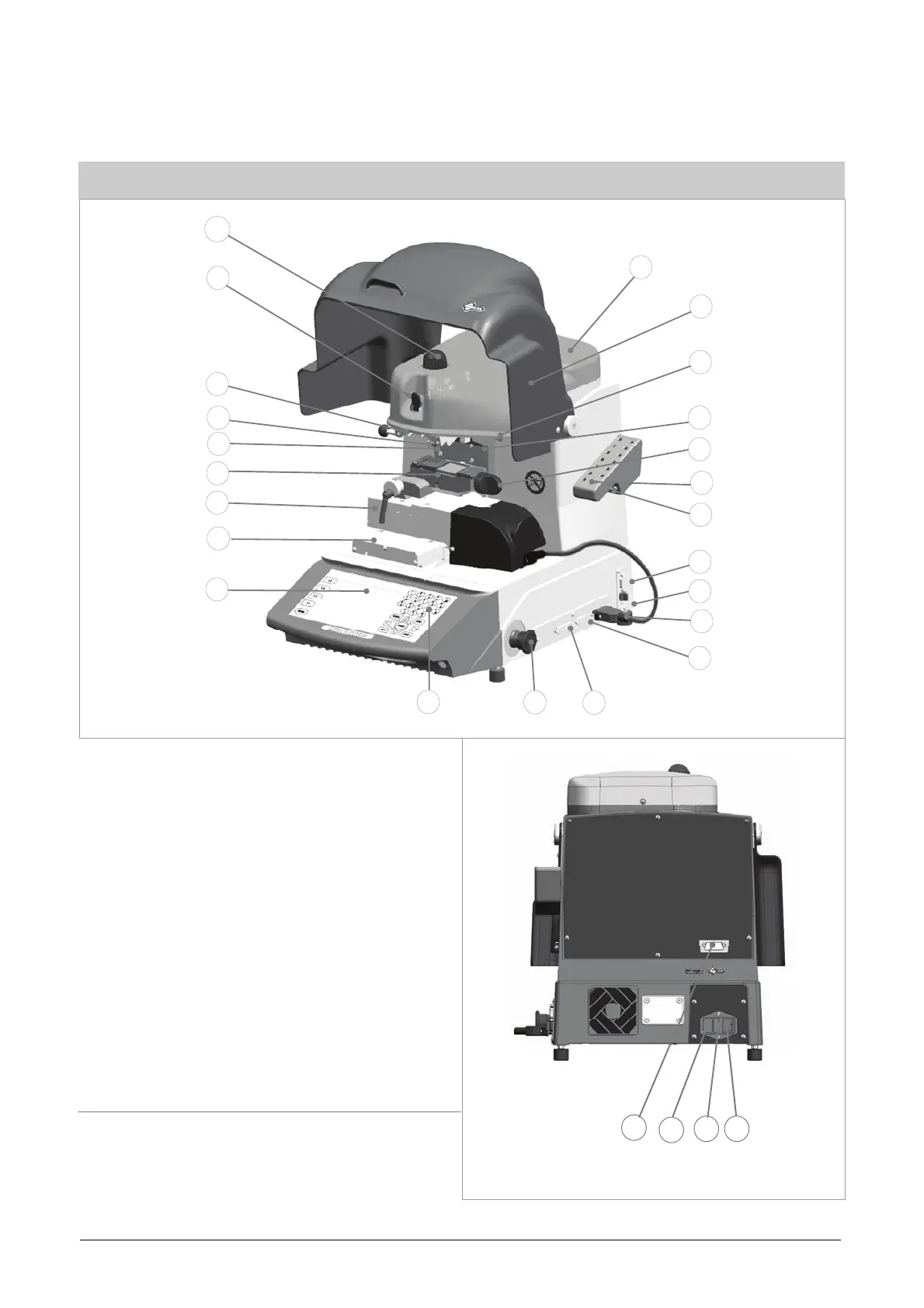

1 MACHINE WORKING PARTS
1.1 TRIAX QUATTRO
A
B
U
R
S
T D
J
M
Q
P
O
N
L
K
I
H
G
F
E
C
V
Z1
Fig. 5
A - tool-locking knob
B - spindle-locking lever
C - Tracer Tower lever
D - spindle
E - cutter
F - clamp R1+R12
G - upper carriage
H - lower carriage
I - display
J - keypad
K - emergency button
L - IN/OUT port
M - B axis
N - upper axis connector
O - USB port for PC
P - serial port for PC
Q - USB PEN holder
R - tool holder
S - clamp knob
T - vertical carriage
U – lamp
V - safety shield
W- vacuum system connector
X - power socket
Y - fuse holder
Z - ON/OFF switch
Z1 - Belt cover
Y
X
Z
W
Fig. 6
