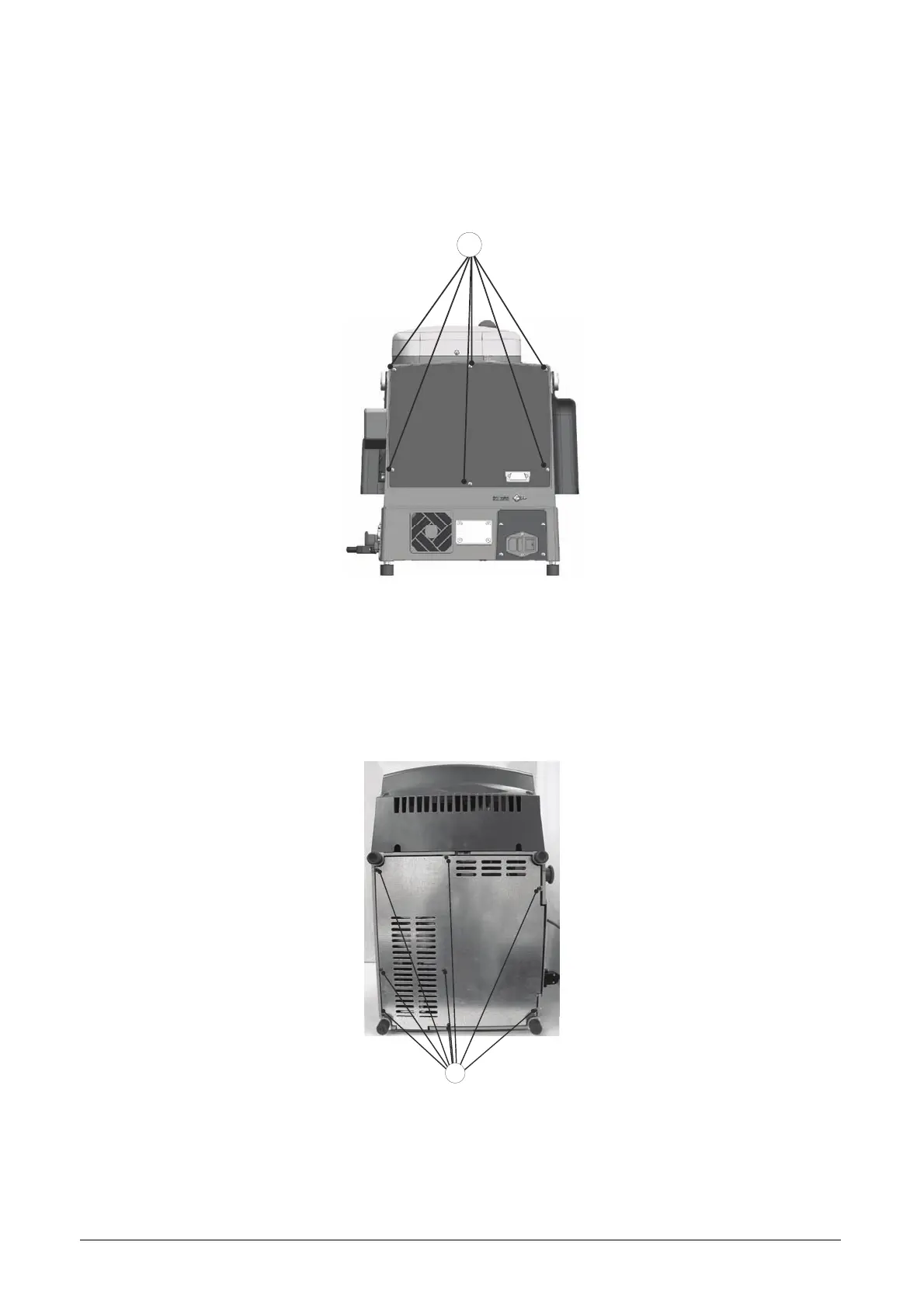

7.7 ACCESS TO REAR COMPARTMENT
To access the rear compartment follow the instructions below:
1. switch off the machine and disconnect the power lead.
2. loosen the 6 screws (B1) fixing the back metal plate and remove.
B1
Fig. 29
7.8 ACCESS TO BOTTOM PART
To access the bottom part of the machine, follow the instructions below:
1. switch off the machine and disconnect the power lead.
2. turn the machine onto its back.
3. loosen the 8 fixing screws (D1) and remove the bottom metal plate
D1
Fig. 30
