KEY CUTTING BY ENTERING CUTS
From the Search Menu in use enter the cuts into the cut field (see Table 1).
Only the depth symbols allowed by the SSN in use will be valid.
F1
F2
F3
F1 Key decoding function.
F2 Engraving function.
F3 Code entry function.
F4 to access other function buttons.
(see Ch. 5.5)
F4

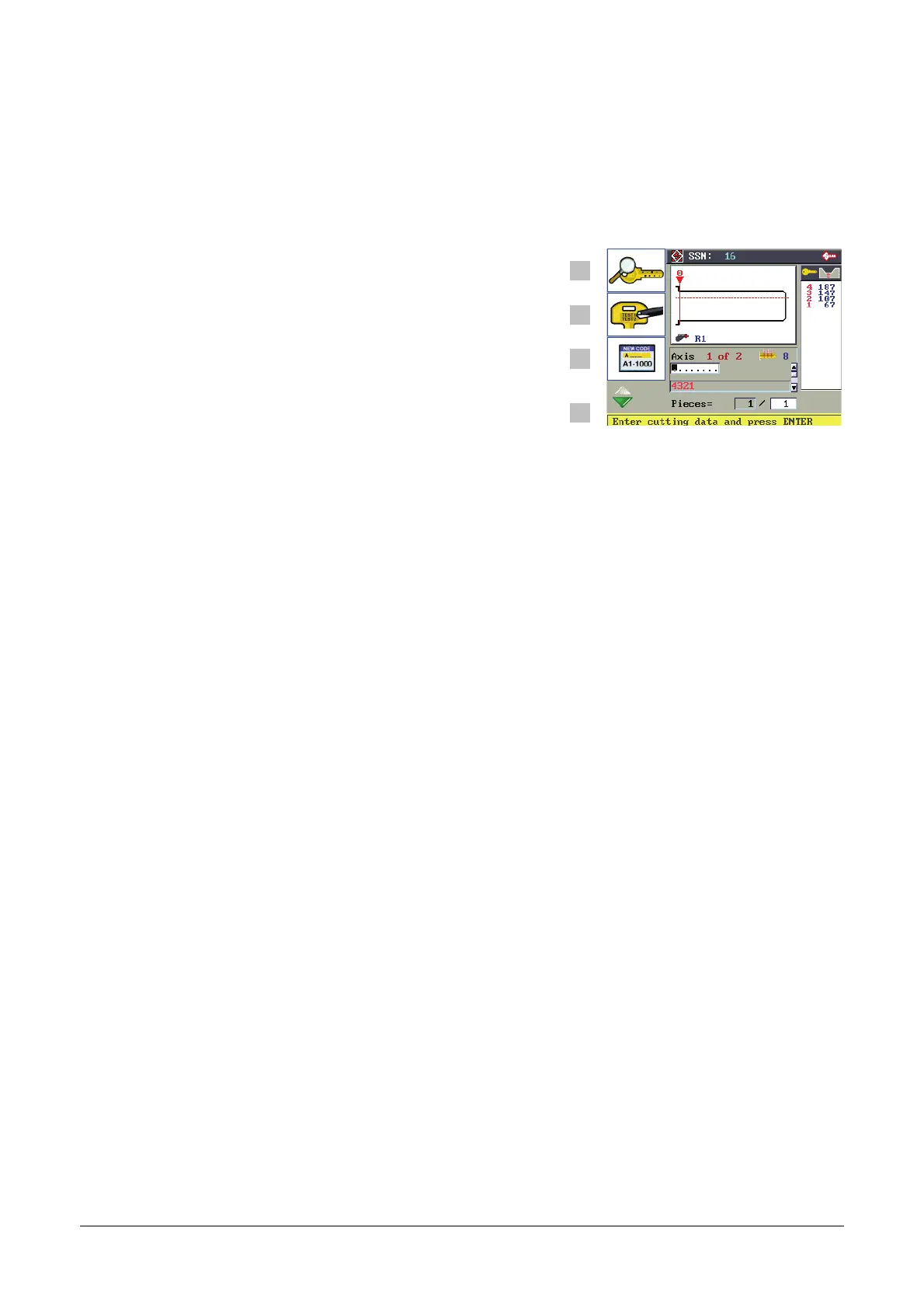

INDICATIONS on Display
SSN:
Silca Serial Number associated to type of key.
Clamp:
Clamp R1 to use for securing the key.
Axis
Cutting axis viewed
Positions of cuts
Maximum number of positions of cuts for the axis shown.
Cuts:
(........) field for entering cuts for the axis shown
Depth symbols and values
Symbols for depths admitted with relative values (1/100 mm) for the
axis shown.
Pieces:
Number of keys to cut.
PROCEDURE for entering cuts
With the cursor in the cut field, use :
L/H-R/H arrow key to skip a position.
Up-down arrow key to change cutting axis.
CLEAR button to delete the value entered (cursor to the far left deletes the whole field; cursor to the far right
deletes the last value entered only; cursor in intermediate position deletes the value it is on).
After entering the cuts for all the axes included in the SSN in use, set the number of pieces (keys to cut).
Press ENTER to continue.
INDICATIONS on display and key-cutting PROCEDURE
For the full cutting flow see paragraph 5.4.2.1
