Silca Triax Quattro - U102 Tt-U103 Tt Decoding Device Replacement (Tracer Tower)

Operating Manual - English Triax QUATTRO
Copyright Silca 2011 - 93 -
7.15 U102TT-U103TT DECODING DEVICE REPLACEMENT (TRACER TOWER)
1. Loosen the screw (K1) or (K2) according to the decoder to be replaced.
2. Remove the broken decoder from its seat.
3. Place the new decoder in the seat and align with the top part of the TRACER TOWER .
4. Tighten the screw (K1) or (K2) according to the decoder to be replaced.
5. Calibrate the Tracer Tower.
K1
K2
F3

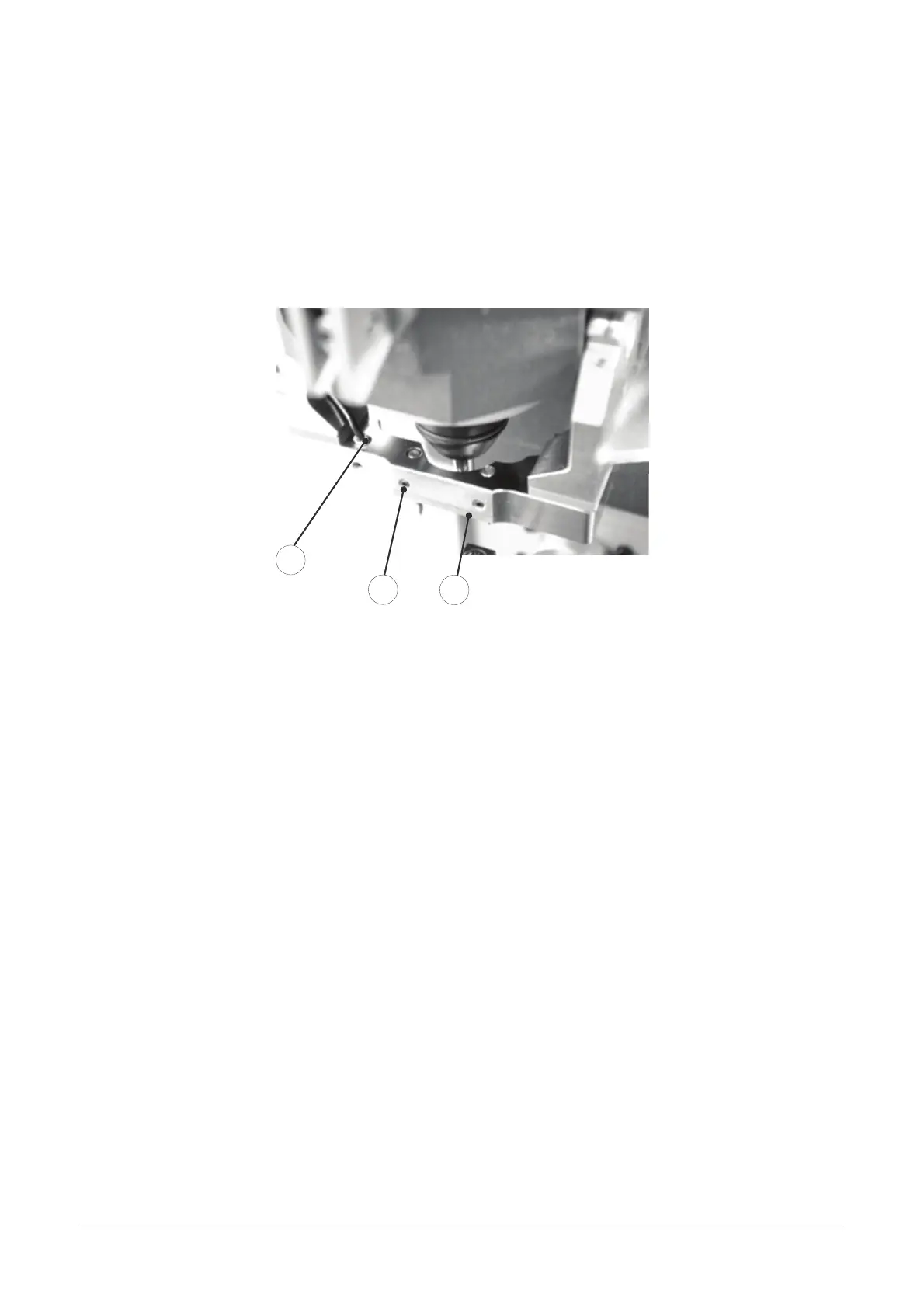

Fig. 49
