7.12 MOTOR CIRCUIT BOARD REPLACEMENT
1. Switch off the machine and disconnect the power lead.
2. Access the rear compartment.
3. Disconnect all the wires from the circuit board connectors.
4. Loosen the 3 fixing screws (M4).
5. Remove the circuit board and replace with a new one.
6. Tighten the three fixing screws (M4).
7. Connect all the wires to the circuit board connectors (each connector is polarized and its position cannot be
changed).
8. Close the rear compartment.
M4

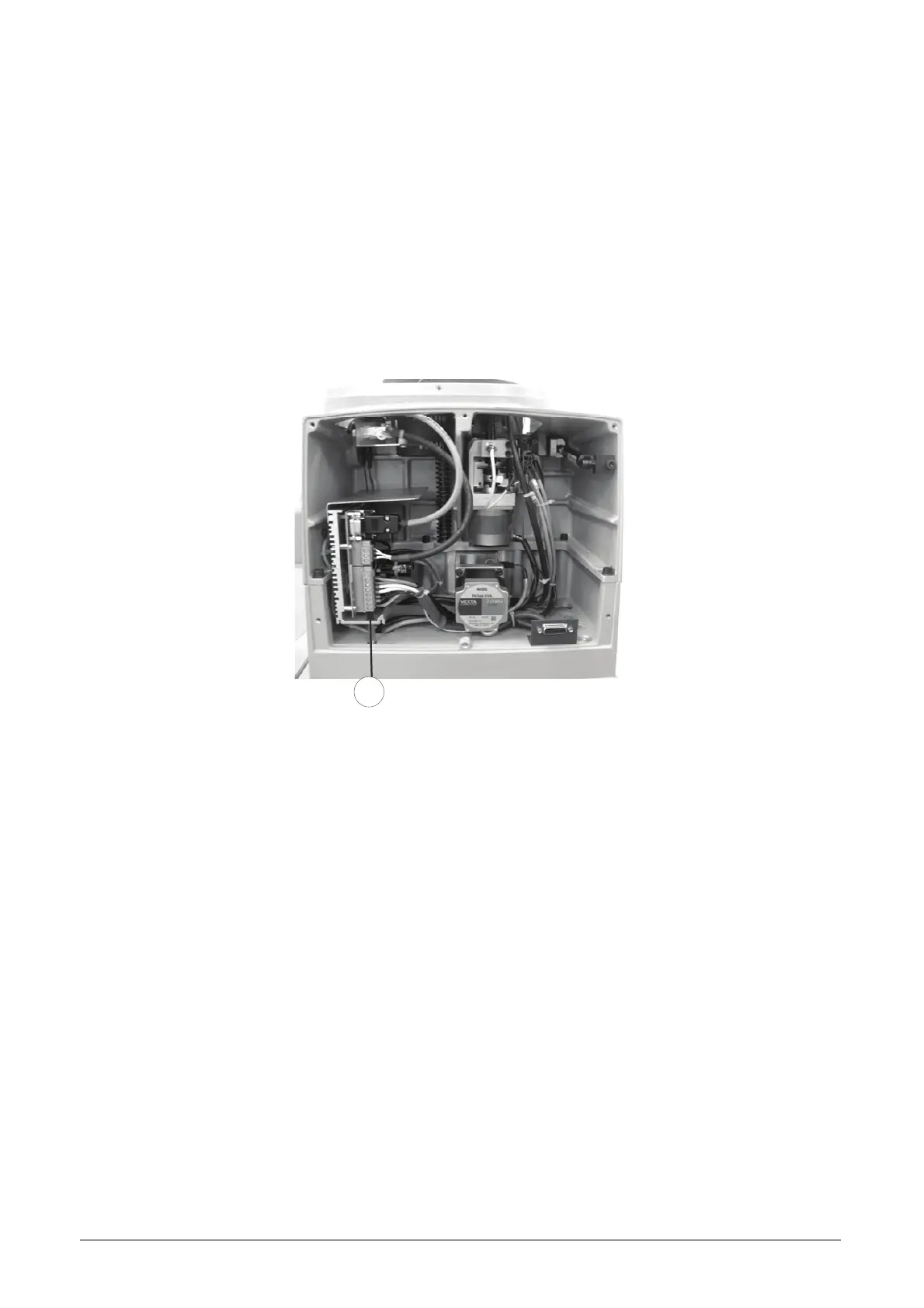

Fig. 45
