Operating Manual - English Triax QUATTRO
- 78 - Copyright Silca 2011
1
7.4 BELT REPLACEMENT AND TIGHTENING
ATTENTION: before performing this operation lower the tracer tower so that the tracer points
are not in a dangerous position for the operator.
1. Turn off the master switch and disconnect the power lead.
2. Loosen the 3 screws and remove the belt cover.
tightening:

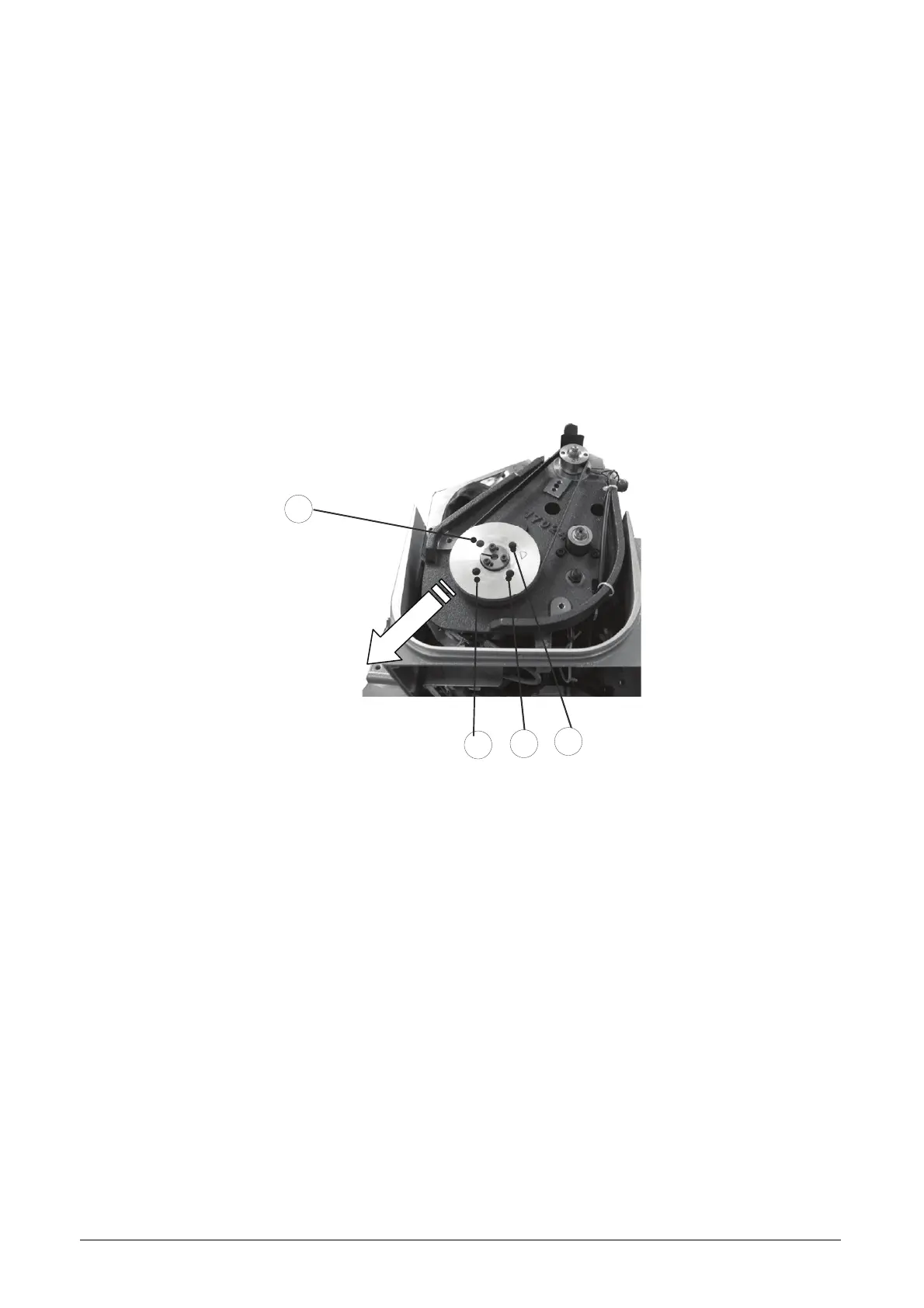

- increase tension on the belt by loosening the 4 screws (C1, C2, C3, C4) with the Allen wrench
provided and pushing the pulley back. Tighten the 4 screws.
replacement:
- remove the belt and replace
3. Replace the belt cover and secure with the 3 screws.
C1
C2
C4
C3
Fig. 24
