Silca Triax Quattro - Replacing Sensor for Vertical Axis (Z)

Operating Manual - English Triax QUATTRO
- 84 - Copyright Silca 2011
1
7.9.2
REPLACING SENSOR FOR VERTICAL AXIS (Z)
1. Switch off the machine and disconnect the power lead.
2. Remove rear metal plate (see ACCESS TO REAR COMPARTMENT).
3. Remove belt cover
4. Disconnect the sensor connector (G3) from the circuit board
5. Loosen the nut (G1), unscrew the sensor from the plate and remove
6. Place the new sensor in position, screw down until it almost touches the pin (G4) and secure with the
nut (G1).
7. Connect the sensor connector to the circuit board.
8. Replace the rear metal plate and belt cover.

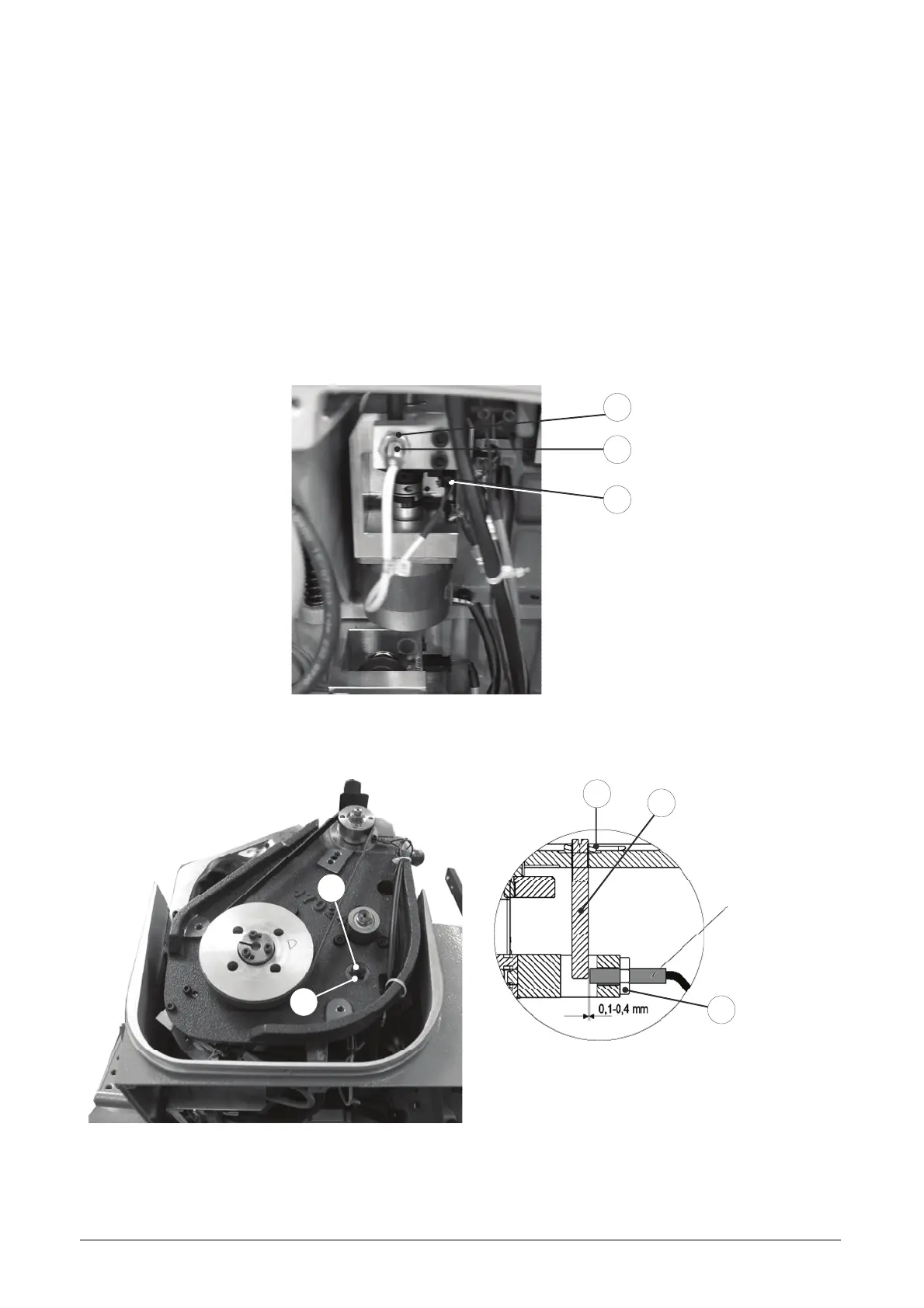

G2
G1
G3
Fig. 33
Drawing references for SENSOR REPLACEMENT AND REGULATION (see MACHINE MACHINE ZEROS).
G5
G4
Fig. 34
G1
G5
G4
Z axis sensor
Fig. 35
