Silca Triax Quattro - Calibration Functions

Operating Manual - English Triax QUATTRO
- 50 - Copyright Silca 2011
1

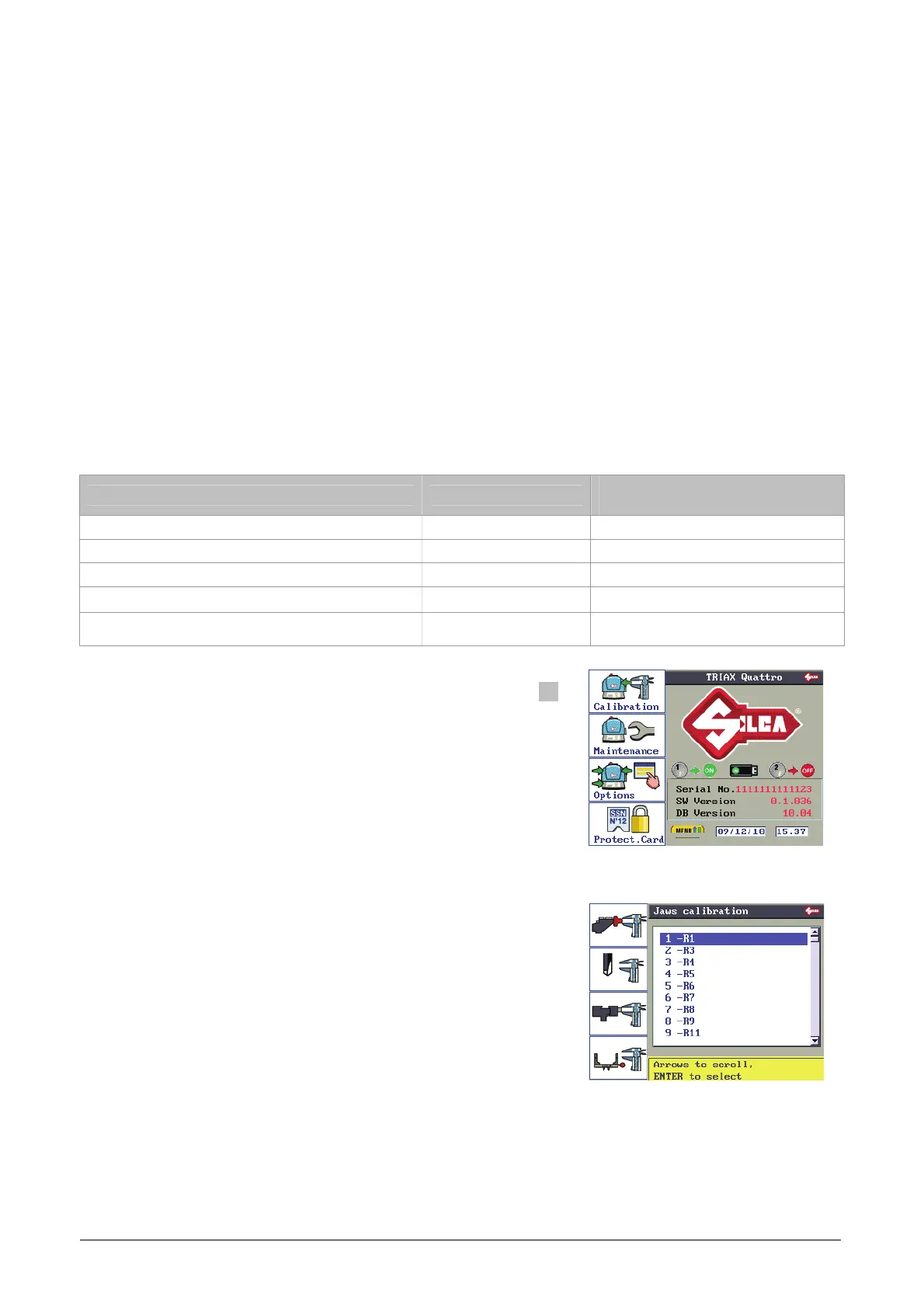

5.10 CALIBRATION FUNCTIONS
For the following components the machine comes with a “self-calibration” system which uses special templates
and procedures:
CLAMPS
TRACER TOWER
The CUTTERS do not need an automatic calibration system; however, if the operator wishes s/he can make
certain variations (see CUTTER CALIBRATION).
The ADAPTERS do not need an automatic calibration system; however, if the operator wishes s/he can adjust key
cutting values (see ADAPTER CALIBRATION).
In the events shown in the table it may be necessary to repeat one or all the calibration operations on the
clamps in your possession. This operation is semi-automatic and requires careful attention to the instructions
below.
These adjustments must be made when the following events occur:
CALIBRATION TABLE
EVENT CLAMP calibration
TRACER TOWER
calibration
Photocell replacement YES YES
Electronic circuit board replacement YES YES
Sensor replacement YES YES
Ball screw replacement * YES YES
Tracer Tower decoder replacement or maintenance NO YES
F1
F2
F3
From the initial screen press MENU.
F1 to enable the function.
F4
CLAMP CALIBRATION
CUTTER CALIBRATION
ADAPTER CALIBRATION
TRACER TOWER AUTOMATIC CALIBRATION

