7.11 ELECTRONIC CIRCUIT BOARD REPLACEMENT
1. Switch off the machine and disconnect the power lead.
2. Access the rear compartment.
3. Disconnect all the wires from the circuit board.
4. Loosen the nuts (N1) and remove the circuit board.
5. Fit the new board onto the threaded pins and tighten the nuts (N1).
6. Connect all the wires (each connector is polarized and its position cannot be changed).
7. Close the bottom compartment.
8. Carry out the calibration operations (see MACHINE ZEROS; CLAMP ; AUTOMATIC CALIBRATION OF TRACER
TOWER DEVICE).
N1

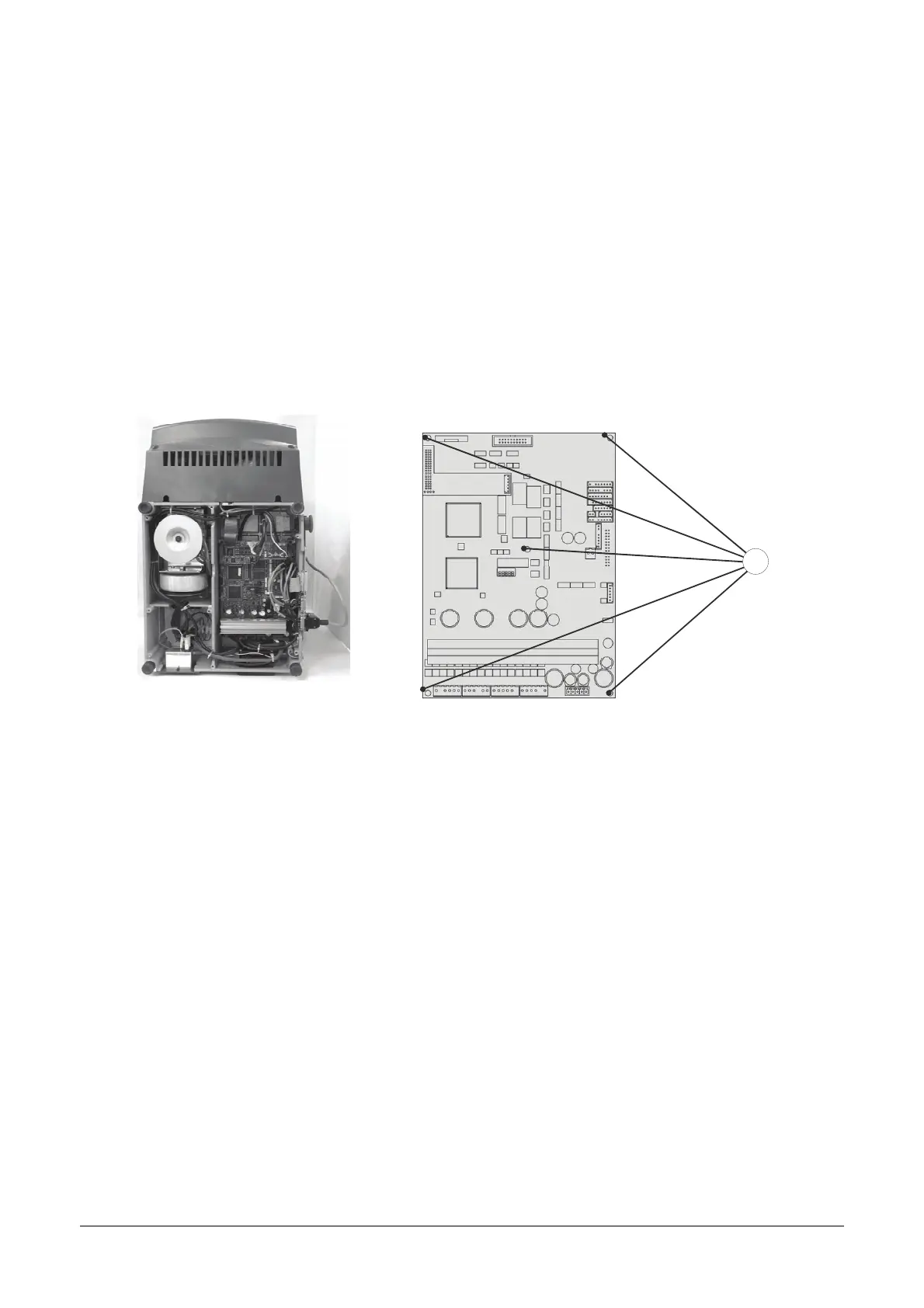

Fig. 44
