Operating Manual - English Triax QUATTRO
Copyright Silca 2011 - 19 -
bar
STOP 0
STOP 3
Head stop Tip stop

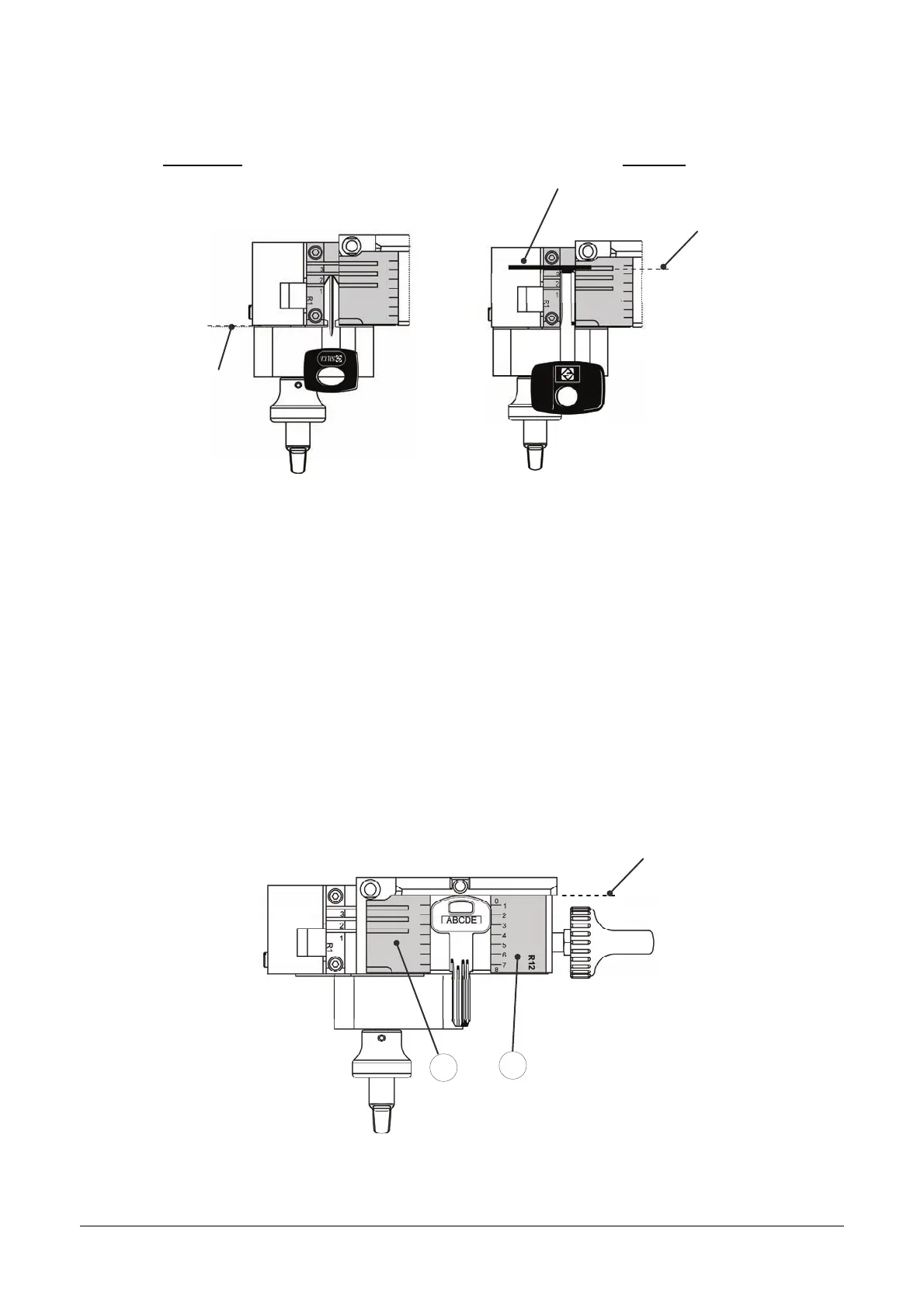

Fig. 15
The R12 clamp (Fig. 15) is prepared to house keys* and medals* to be engraved.
To open the clamp jaws (A3 and A4) and fit the key or medal to be engraved, turn the knob (S)
clockwise.
Turn the knob (S) anticlockwise to close the jaws (A3 and A4) and secure the object (key or medal) to be
engraved.
On top of the 2 jaws on the R12 clamp there are positions numbered 0 to 8 which are used as a
reference and aid the operator in positioning the key or medal to be engraved.
Cutter to use for engraving: W146.
ATTENTION: (*) the keys and medals must be metal.
Engraving cannot be carried out on other materials (wood, paper, ceramics, etc.).
(*) the maximum dimensions of the object to be engraved are: 38x40 mm (see Fig. 17-
Fig. 18).
A3
A4
Reference 0
Fig. 16
