Operating Manual - English Triax QUATTRO
- 80 - Copyright Silca 2011
1

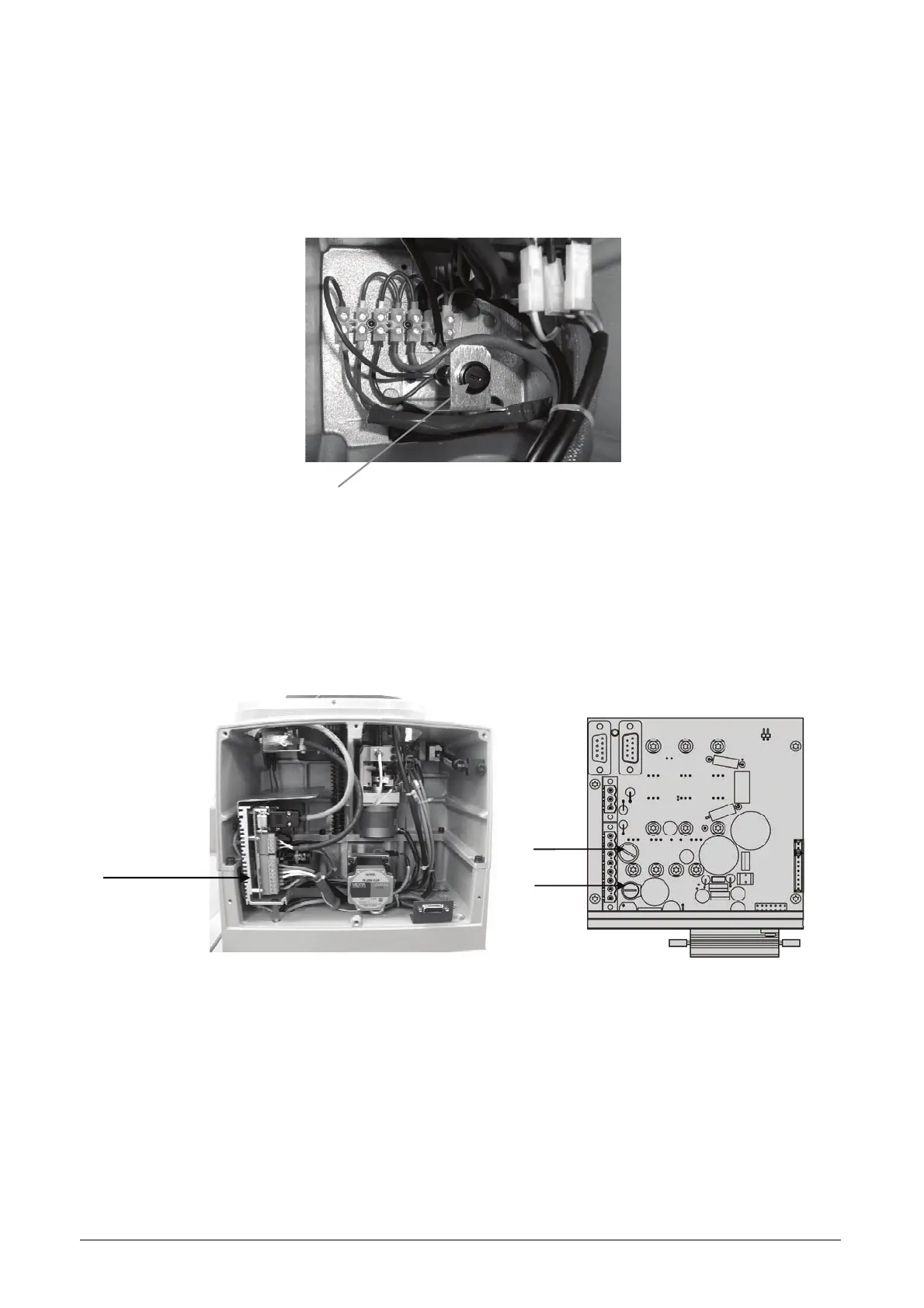

 1 fuse: F5 :
1.6 Amps delayed (230V) - 2 Amps delayed (100V/120V)
Protects the main electronic circuit board transformer.
Situated in the bottom of the base.
F5
 2 fuses: F6, F7 :
1 fuse: F6 : 8 Amps delayed
Protects motor power.
1 fuse: F7 : 315mA delayed
Protects the motor circuit board.
Situated on the motor circuit board at the rear of the base.
Motor circuit
board
F7
F6
