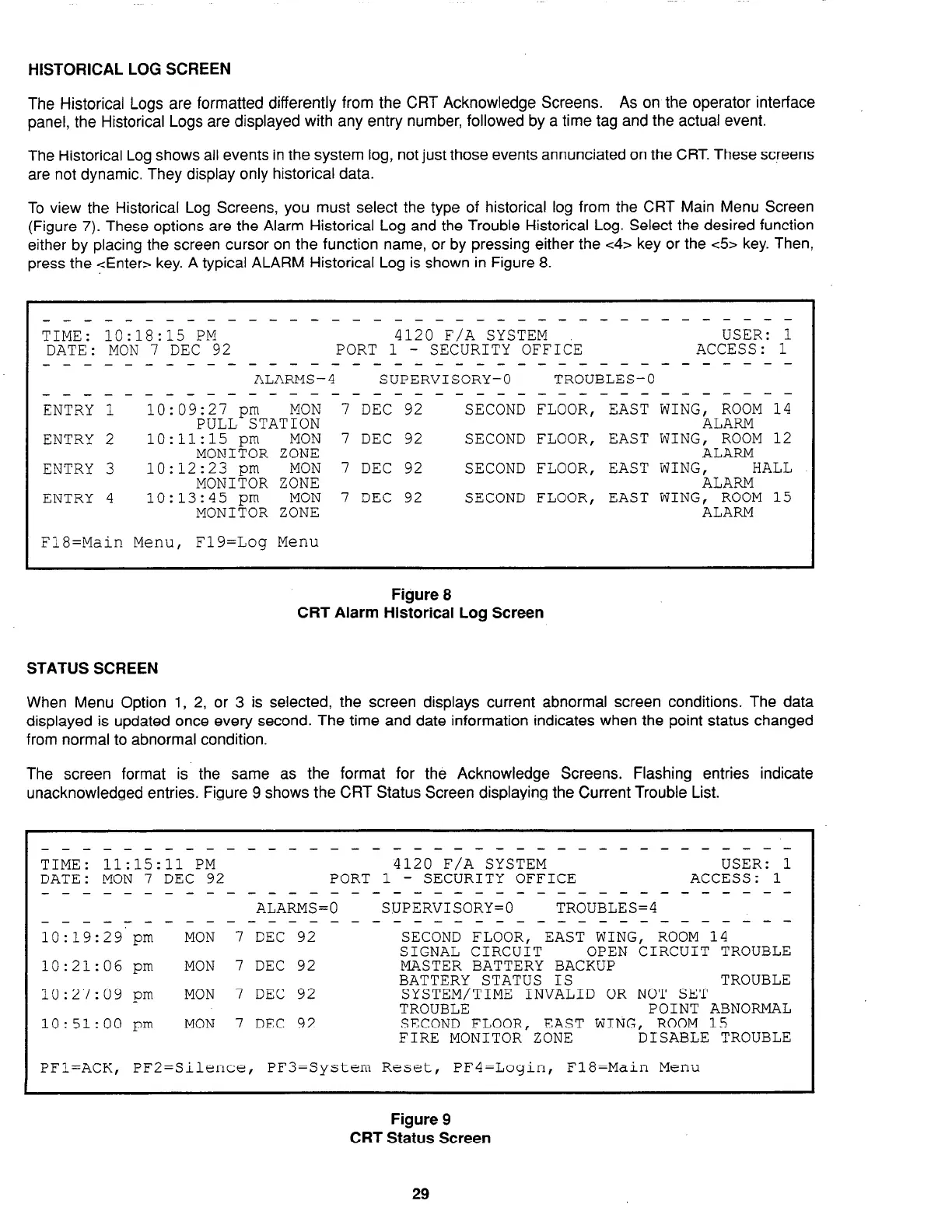

HISTORICAL LOG SCREEN
The Historical Logs are formatted differently from the CRT Acknowledge Screens. As on the operator interface
panel, the Historical Logs are displayed with any entry number, followed by a time tag and the actual event.
The Historical Log shows all events in the system log, not just those events annunciated on the CRT. These screens
are not dynamic. They display only historical data.
To view the Historical Log Screens, you must select the type of historical log from the CRT Main Menu Screen
(Figure 7). These options are the Alarm Historical Log and the Trouble Historical Log. Select the desired function
either by placing the screen cursor on the function name, or by pressing either the c4> key or the c5> key. Then,
press the <Enter> key. A typical ALARM Historical Log is shown in Figure 8.
________----------___________________
TIME: 10:18:15 PM 4120 F/A SYSTEM USER: 1
DATE: MON 7 DEC 92 PORT 1 - SECURITY OFFICE ACCESS: 1
________- - - - --- - - -_______-_- - - - - - ----
ALARMS=4 SUPERVISORY=0 TROUBLES=0
________----------__~~~~~-~~---------
ENTRY 1 10:09:27 pm MON 7 DEC 92 SECOND FLOOR, EAST WING, ROOM 14
PULL STATION
ALARM
ENTRY 2 10:11:15 pm MON 7 DEC 92 SECOND FLOOR, EAST WING, ROOM 12
MONITOR ZONE
ALARM
ENTRY 3 10:12:23 pm MON 7 DEC 92 SECOND FLOOR, EAST WING, HALL
MONITOR ZONE
ALARM
ENTRY 4 10:13:45 pm MON 7 DEC 92 SECOND FLOOR, EAST WING, ROOM 15
MONITOR ZONE
ALARM
F18=Main Menu, F19=Log Menu
Figure 8
CRT Alarm Historical Log Screen
STATUS SCREEN
When Menu Option 1, 2, or 3 is selected, the screen displays current abnormal screen conditions. The data
displayed is updated once every second. The time and date information indicates when the point status changed
from normal to abnormal condition.
The screen format is the same as the format for the Acknowledge Screens. Flashing entries indicate
unacknowledged entries. Figure 9 shows the CRT Status Screen displaying the Current Trouble List.
-----------------v------------------m
TIME: 11:15:11 PM 4120 F/A SYSTEM USER: 1
DATE: MON 7 DEC 92 PORT 1 - SECURITY OFFICE ACCESS: 1
_-------------------------~----------
ALARMS=0 SUPERVISORY=0 TROUBLES=4
----------------------------------e-w
10:19:29
pm
MON 7 DEC 92 SECOND FLOOR, EAST WING, ROOM 14
SIGNAL CIRCUIT
OPEN CIRCUIT TROUBLE
10:21:06 Drn MON 7 DEC 92 MASTER BATTERY BACKUP
L
BATTERY STATUS IS
TROUBLE
10:27:09 pm MON
7 DEC 92 SYSTEM/TIME INVALID OR NOT SET
TROUBLE
POINT ABNORMAL
10:51:00 pm
MON 7 DEC 92 SECOND FLOOR, EAST WING, ROOM 15
FIRE MONITOR ZONE
DISABLE TROUBLE
PFl=ACK, PF2=Silence, PF3=System Reset, PF4=Login, F18=Main Menu
Figure 9
CRT Status Screen
29
