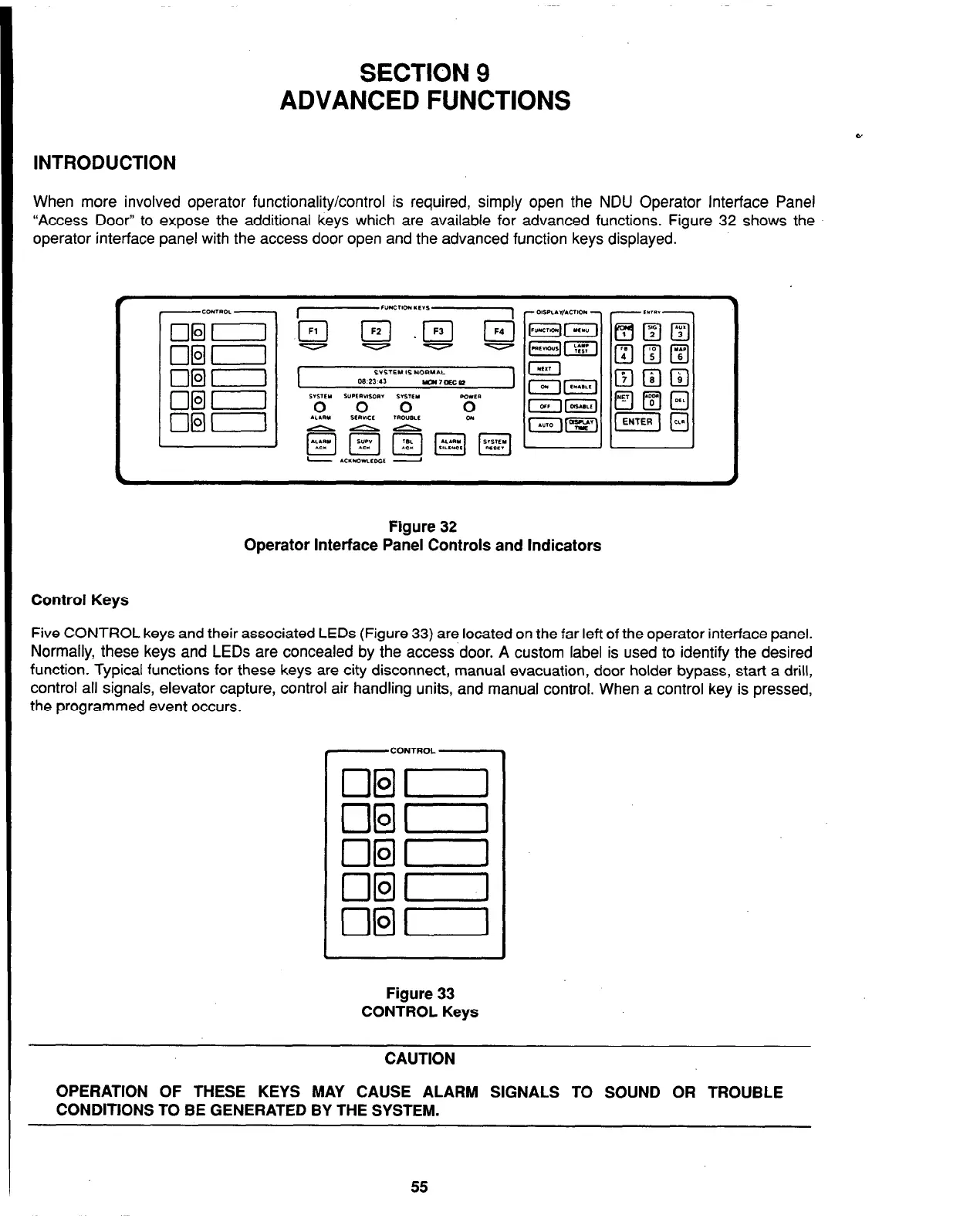

SECTION 9
ADVANCED FUNCTIONS
INTRODUCTION
When more involved operator functionality/control is required, simply open the NDU Operator Interface Panel
“Access Door” to expose the additional keys which are available for advanced functions. Figure 32 shows the
operator interface panel with the access door open and the advanced function keys displayed.
Figure 32
Operator Interface Panel Controls and Indicators
Control Keys
Five CONTROL keys and their associated LEDs (Figure 33) are located on the far left of the operator interface panel.
Normally, these keys and LEDs are concealed by the access door. A custom label is used to identify the desired
function. Typical functions for these keys are city disconnect, manual evacuation, door holder bypass, start a drill,
control all signals, elevator capture, control air handling units, and manual control. When a control key is pressed,
the programmed event occurs.
-CONlROL
Figure 33
CONTROL Keys
CAUTION
OPERATION OF THESE KEYS MAY CAUSE ALARM SIGNALS TO SOUND OR TROUBLE
CONDITIONS TO BE GENERATED BY THE SYSTEM.
55
