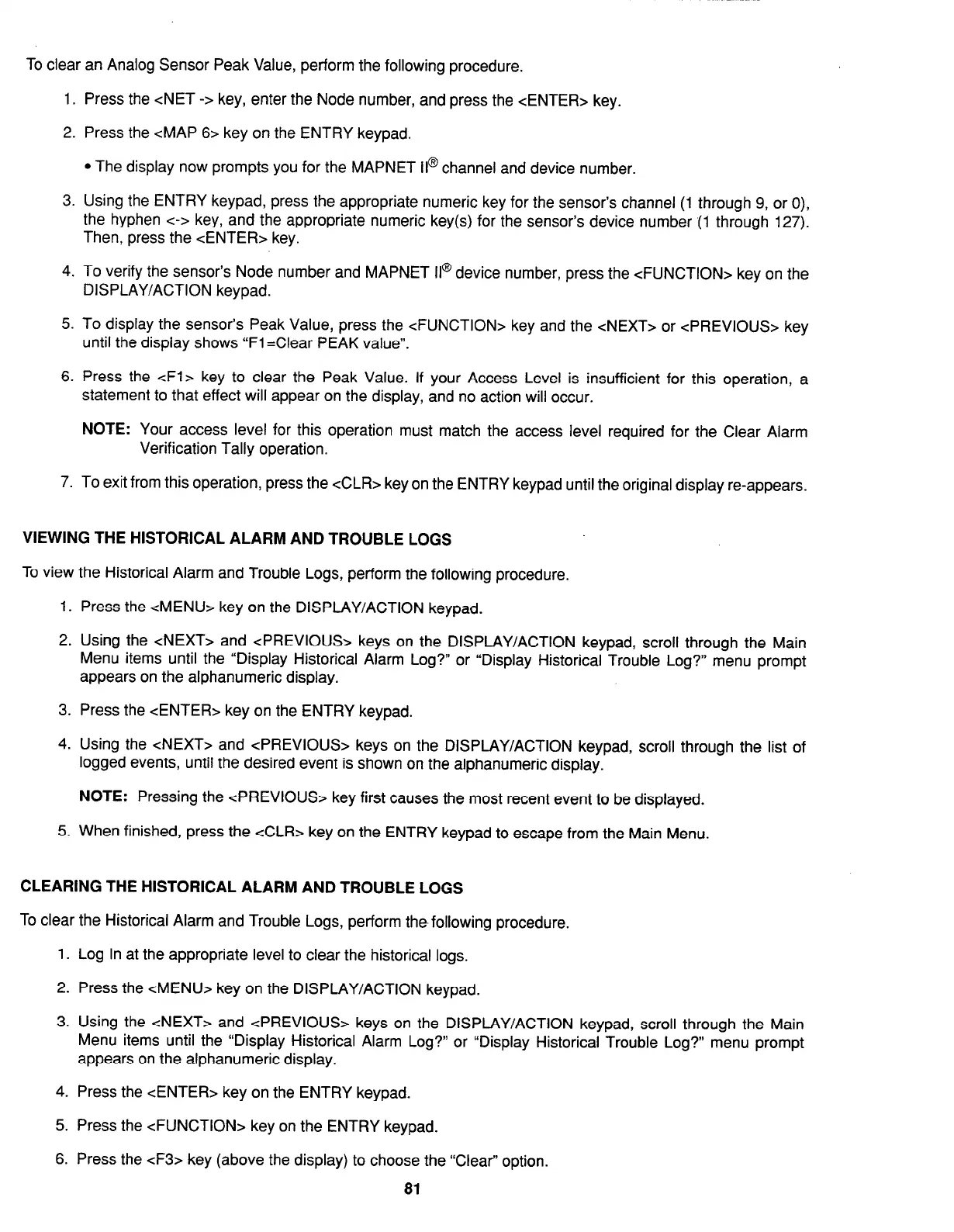

To clear an Analog Sensor Peak Value, perform the following procedure.
1. Press the <NET -> key, enter the Node number, and press the <ENTER> key.
2. Press the <MAP 62 key on the ENTRY keypad.
l
The display now prompts you for the MAPNET II@ channel
and
device number.
3. Using the ENTRY keypad, press the appropriate numeric key for the sensor’s channel (1 through 9, or 0),
the hyphen c-> key, and the appropriate numeric key(s) for the sensor’s device number (1 through 127).
Then, press the <ENTER> key.
4. To verify the sensor’s Node number and MAPNET II@ device number, press the <FUNCTION> key on the
DISPLAY/ACTION keypad.
5. To display the sensor’s Peak Value, press the <FUNCTION> key and the <NEXT> or cPREVIOUS> key
until the display shows “Fl =Clear PEAK value”.
6. Press the cFl> key to clear the Peak Value. If your Access Level is insufficient for this operation, a
statement to that effect will appear on the display, and no action will
occur.
NOTE:
Your access level for this operation must match the access level required for the Clear Alarm
Verification Tally operation.
7. To exit from this operation, press the <CLR> key on the ENTRY keypad until the original display re-appears.
VIEWING THE HISTORICAL ALARM AND TROUBLE LOGS
To view the Historical Alarm and Trouble Logs, perform the following procedure.
1. Press the <MENU> key on the DISPLAY/ACTION keypad.
2. Using the <NEXT> and <PREVIOUS> keys on the DISPLAY/ACTION keypad, scroll through the Main
Menu items until the “Display Historical Alarm Log
?” or “Display Historical Trouble Log?” menu prompt
appears on the alphanumeric display.
3. Press the <ENTER> key on the ENTRY keypad.
4. Using the <NEXT> and cPREVIOUS> keys on the DISPLAY/ACTION keypad, scroll through the list of
logged events, until the desired event is shown on the alphanumeric display.
NOTE:
Pressing the <PREVIOUS> key first causes the most recent event to be displayed.
5. When finished, press the <CLR> key on the ENTRY keypad to escape from the Main Menu.
CLEARING THE HISTORICAL ALARM AND TROUBLE LOGS
To clear the Historical Alarm and Trouble Logs, perform the-following procedure.
1. Log In at the appropriate level to clear the historical logs.
2. Press the <MENU> key on the DISPLAY/ACTION keypad.
3. Using the <NEXT> and <PREVIOUS> keys on the DISPLAY/ACTION keypad, scroll through the Main
Menu items until the “Display Historical Alarm
Log
?” or “Display Historical Trouble Log?” menu prompt
appears on the alphanumeric display.
4. Press the <ENTER> key on the ENTRY keypad.
5. Press the <FUNCTION> key on the ENTRY keypad.
6. Press the <F3> key (above the display) to choose the “Clear” option.
81
