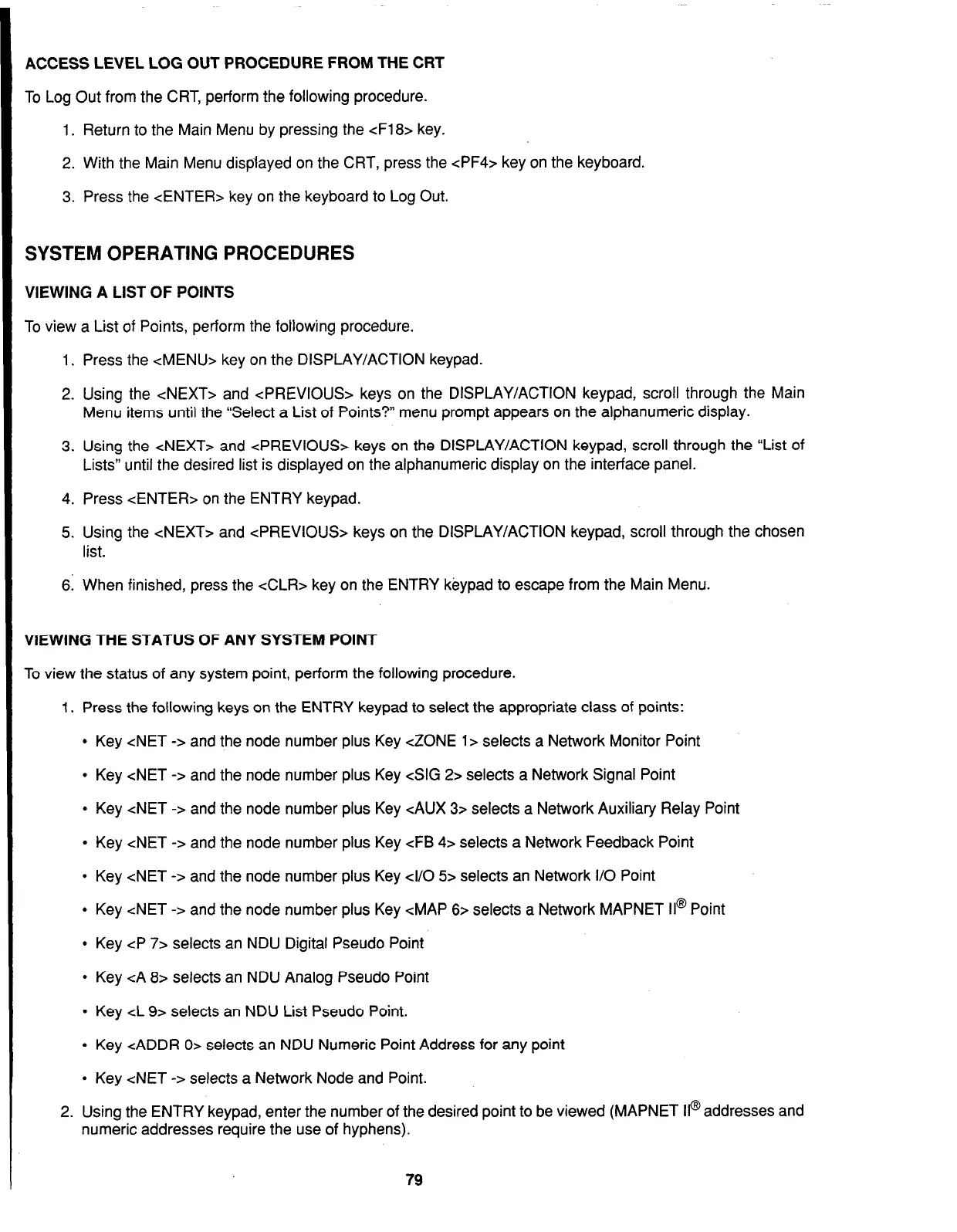

ACCESS LEVEL LOG OUT PROCEDURE FROM THE CRT
To Log Out from the CRT, perform the following procedure.
1. Return to the Main Menu by pressing the <F18> key.
2. With the Main Menu displayed on the CRT, press the <PF42 key on the keyboard.
3. Press the <ENTER> key on the keyboard to Log Out.
SYSTEM OPERATING PROCEDURES
VIEWING A LIST OF POINTS
To view a List of Points, perform the following procedure.
1. Press the <MENU> key on the DISPLAY/ACTION keypad.
2. Using the <NEXT> and <PREVIOUS> keys on the DISPLAY/ACTION keypad, scroll through the Main
Menu items until the “Select a List of Points?” menu prompt appears on the alphanumeric display.
3. Using the <NEXT> and <PREVIOUS> keys on the DISPLAY/ACTION keypad, scroll through the “List of
Lists” until the desired list is displayed on the alphanumeric display on the interface panel.
4. Press <ENTER> on the ENTRY keypad.
5. Using the <NEXT> and <PREVIOUS> keys on the DISPLAY/ACTION keypad, scroll through the chosen
list.
6. When finished, press the cCLR> key on the ENTRY keypad to escape from the Main Menu.
~ VIEWING THE STATUS OF ANY SYSTEM POINT
To view the status of any system point, perform the following procedure.
1. Press the following keys on the ENTRY keypad to select the appropriate class of points:
l
Key <NET -> and the node number plus Key <ZONE l> selects a Network Monitor Point
l
Key <NET -> and the node number plus Key <SIG 2> selects a Network Signal Point
l
Key <NET -> and the node number plus Key cAUX 3~ selects a Network Auxiliary Relay Point
l
Key <NET -> and the node number plus Key cFB 4~ selects a Network Feedback Point
l
Key <NET -> and the node number plus Key <I/O 5> selects an Network I/O Point
l
Key <NET -> and the node number plus Key <MAP 6> selects a Network MAPNET II@ Point
l
Key <P 7> selects an NDU Digital Pseudo Point
l
Key <A 8> selects an NDU Analog Pseudo Point
l
Key <L 9> selects an NDU List Pseudo Point.
l
Key cADDR 0~ selects an NDU Numeric Point Address for any point
l
Key <NET -> selects a Network Node and Point.
2. Using the ENTRY keypad, enter the number of the desired point to be viewed (MAPNET ll@ addresses and
numeric addresses require the use of hyphens).
79
