3.6 Hydraulic connection diagrams
Fig.
8
Pumps with follower plate and low-level signal
Pump without follower plate and with low-level signal
Pumps with follower plate, without low-level signal
Pump without follower plate and without low-level signal

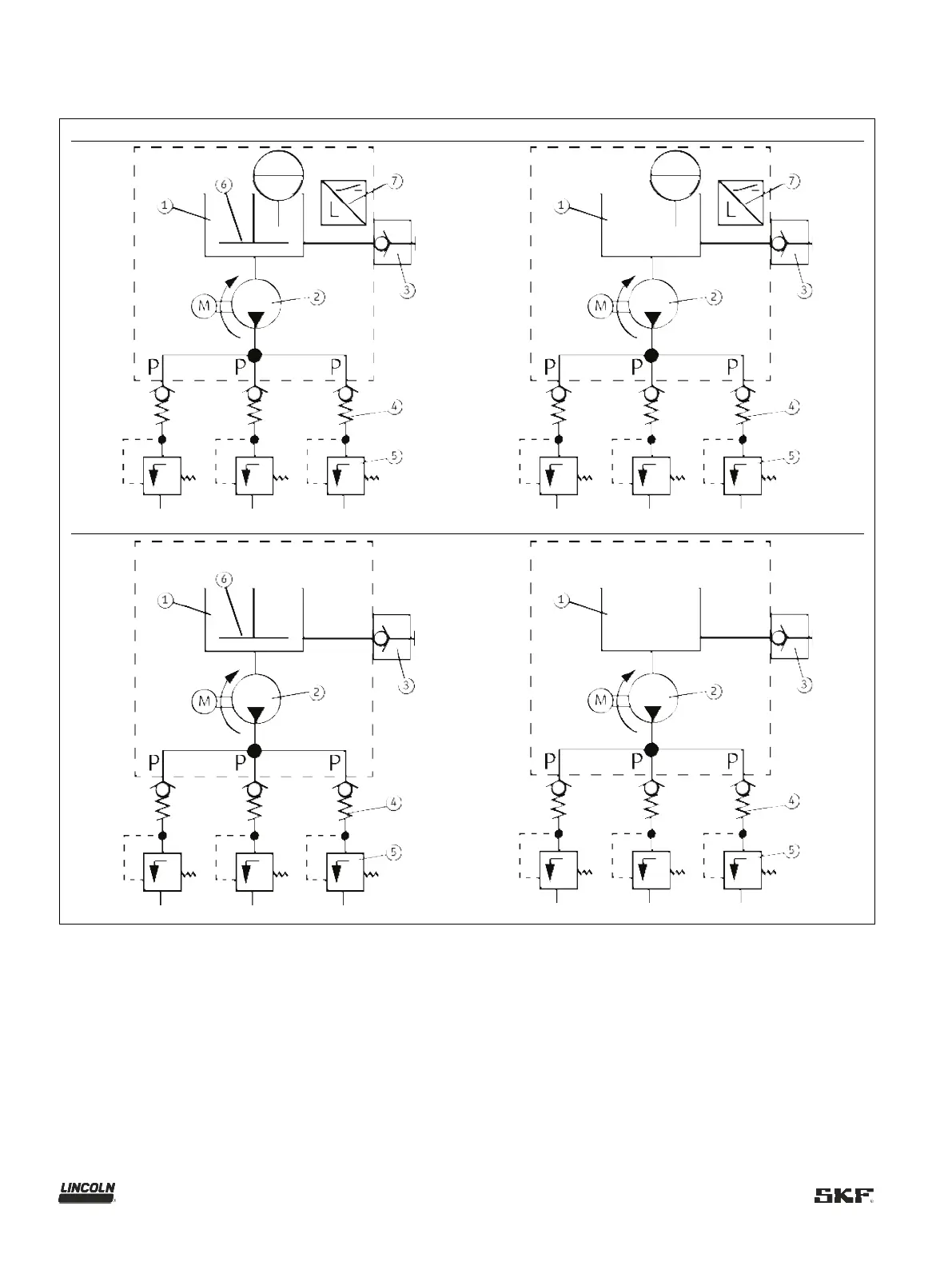

Hydraulic connection diagrams
1 Reservoir
2
Pump
3
Filler nipple
4 Check valve*
5 Pressure limiting valve*
6
Follower plate
7
Low-level signal
P Pressure line
* Does not come included with the pump
