SKF P203 - Tightening Torques

32

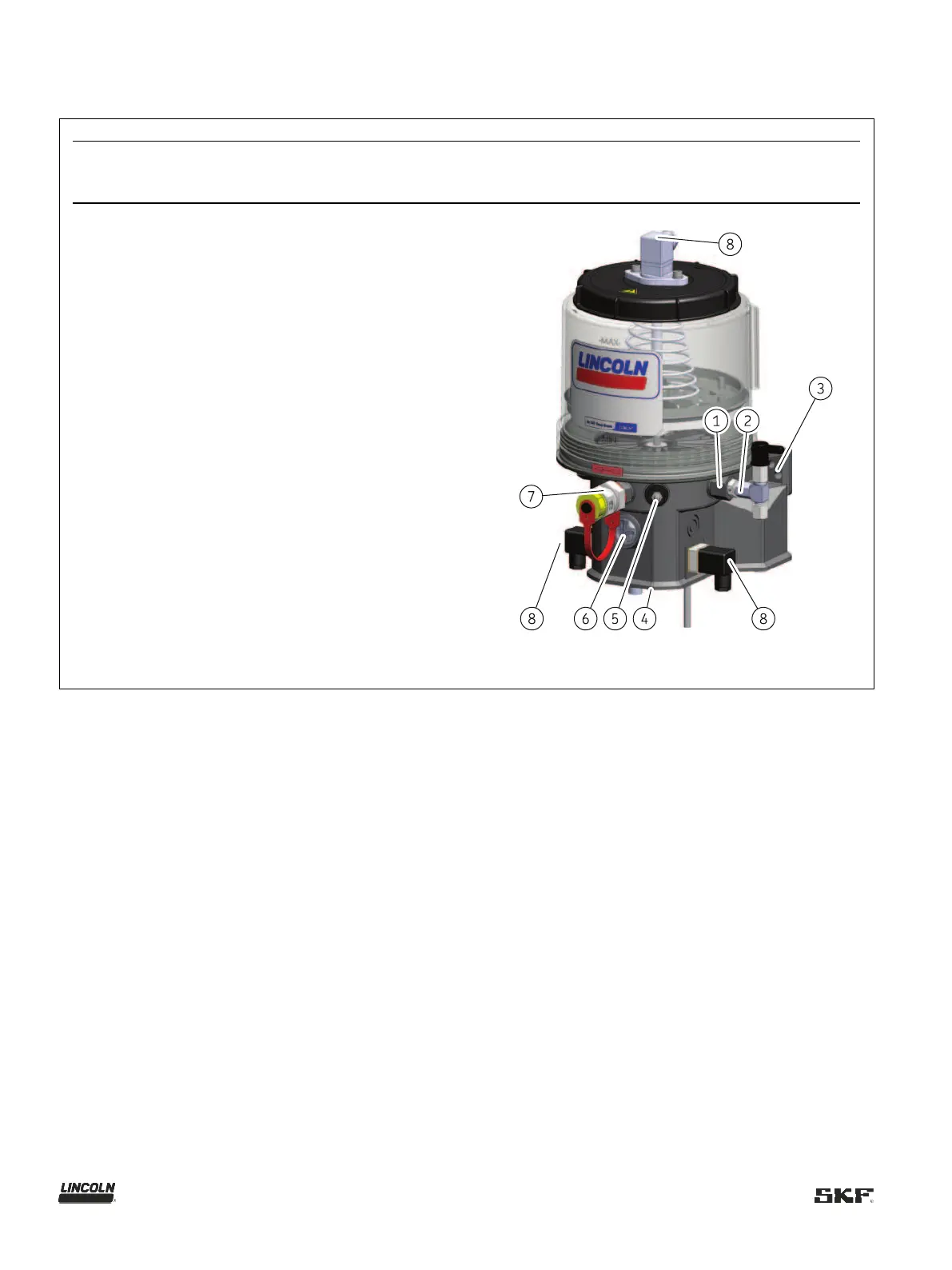

4.11 Tightening torques
Table
21
Tightening torques
Component
Tightening torque
1
Pump element on pump
20 Nm ± 2.0 Nm
[14.75 ft.lb. ± 1.4 ft.lb.]
2
Pressure limiting valve on pump
element
6 Nm - 0.5 Nm
[4.43 ft.lb. - 0.37 ft.lb.]
3
Fastening the pump
18 Nm ± 1.0 Nm
[13.27 ft.lb. ± 0.74 ft.lb.]
4
Housing cover (bottom) when
replacing
0.75 Nm ± 0.1 Nm
[0.55 ft.lb. ± 0.07 ft.lb.]
5
Plug screw or adapter with
cone-type grease nipple
10 Nm + 1.0 Nm
[7.38 ft.lb. ± 0.74 ft.lb.]
6
Screw cap
2 Nm ± 0.2 Nm
[1.48 ft. lb. ± 0.15 ft.lb.]
7
Optional fill connection
20 Nm ± 2.0 Nm
[14.75 ft.lb. ± 1.4 ft.lb.]
8
Rectangular connector, M3
screw
0.5 Nm [0.37 ft.lb.]
Not shown
Ultrasonic sensor
(for BIBO reservoirs)
1.5 Nm ±0.2 Nm
[1.11 ft.lb. ±0.15 ft.lb.]
M12 connector
(for BKBO reservoirs)
6 Nm ± 0.5 Nm
[4.43 ft.lb. ± 0.37 ft.lb.]
