SKF P203 - Modifying the Lubrication Time and Pause Time Using Jumpers

54
6.9.3 Modifying the lubrication time and pause time using jumpers

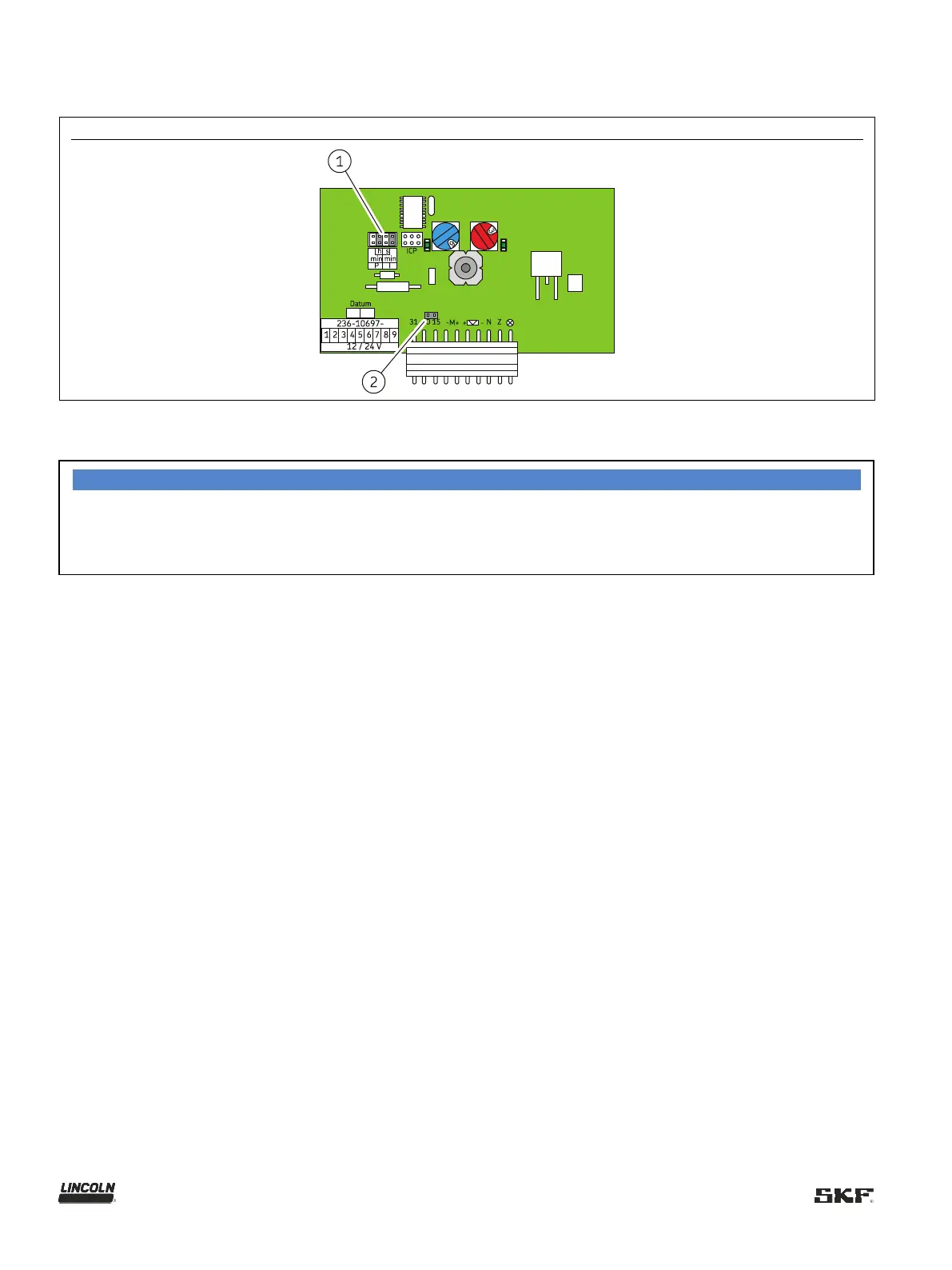

Fig.
35
Location of the jumpers on the control circuit board
1 Jumpers for “time range” for rotary switches
2 Jumper for “bridge at terminal 15/30”
NOTICE
Damage to the main machine
The jumper settings on the control circuit board should not be modified if possible. Modified jumper settings
are not immediately obvious to other people and could therefore lead to incorrect settings of the
lubrication
and pause times.
The jumpers (Fig. 35/1) on the control circuit board can be used to modify the time range that is adjustable using the rotary
switches.
The jumper (Fig. 35/2) can be used to bridge the terminals 15 / 30. If terminal 15 (machine contact/driver switch) is jumpered
to terminal 30 (+) and if there is voltage on terminal 30, then the pump can work even if the main machine is not working or
running. Without a jumper, the pump works only if the machine contact is actively switched on.
