SKF P203 - Assembly Holes for 15 L, 20 L, and 25 L Reservoirs

44
6.3.3 Assembly holes for 15 l, 20 l, and 25 l
reservoirs
NOTE
The pump is fastened using 2 fastening points at the
bottom of the pump housing and 1
fastening plate
(XBD 15
l) or 2 fastening plates (XBD 20 l /XID 20 l
and 25
l) in the pump's aluminum profile. The
fastening plates are included separately with the
pump
and must be installed by the customer.
Installing the fastening plates:
The fastening plates (Z) are installed in the pump's
aluminum profile using the fastening hardware included
with the pump.
For each fastening plate:
• 4 x hexagon head screws M8x12 (8.8) A4 DIN EN ISO
4017
• 4 x T-slot nuts M8 A2 10M with spring leaf DIN 508
• 4 x washers A4 8 200 HV
Loctite 274 or equivalent is used to secure the screws.
Tightening torque: 15 Nm ± 1.5 Nm
[11.1 ft.lb. ± 1.1 ft.lb.]
Installing the pump:
The pump must be installed on the main machine using
fastening hardware provided by the customer.
For each hole:
• Screw M8 (8.8)
• Hexagon nut M8 (8.8)
• Washers 8 200 HV
Diameter of the holes:
∅ 9 mm [0.35 in.]
Tightening torque: 18 Nm ± 1.0 Nm
[13.27 ft.lb. ± 0.75 ft.lb.]
Table
26
Assembly holes
<Content>
Reservoir size
A
B
C
Unit
15l
555
---
---
mm
20l
737
367
370
mm
25l
920
455
465
mm

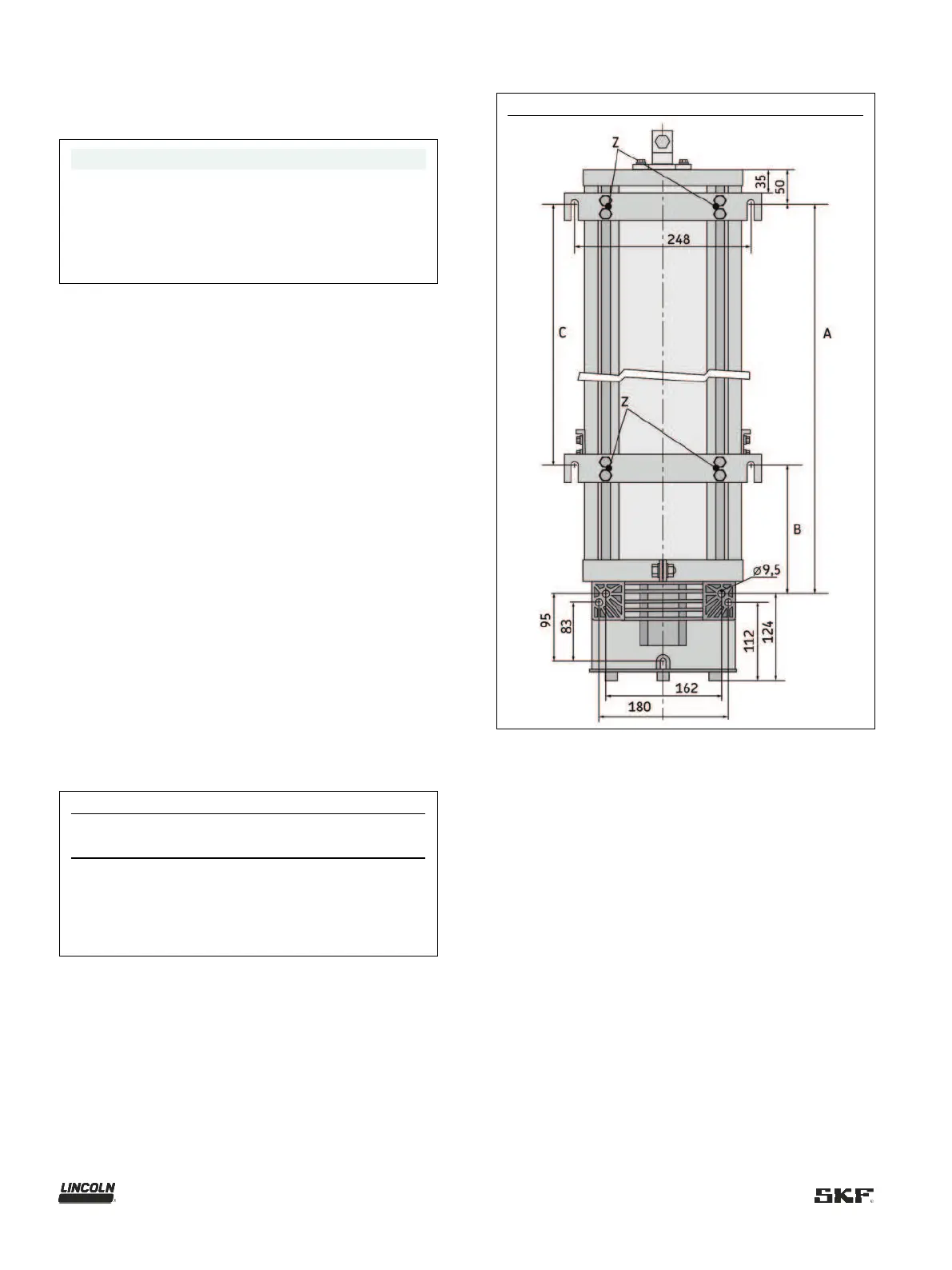

Fig.
22
Assembly holes for 15 l, 20 l, and 25 l reservoirs
