4.12.2 Pump elements
P203
X
X
-
LL
X
X
XX
-
123
-
DC
-
11
22
33
44
-
V23
L
SSSS
Pump elements
1)
:

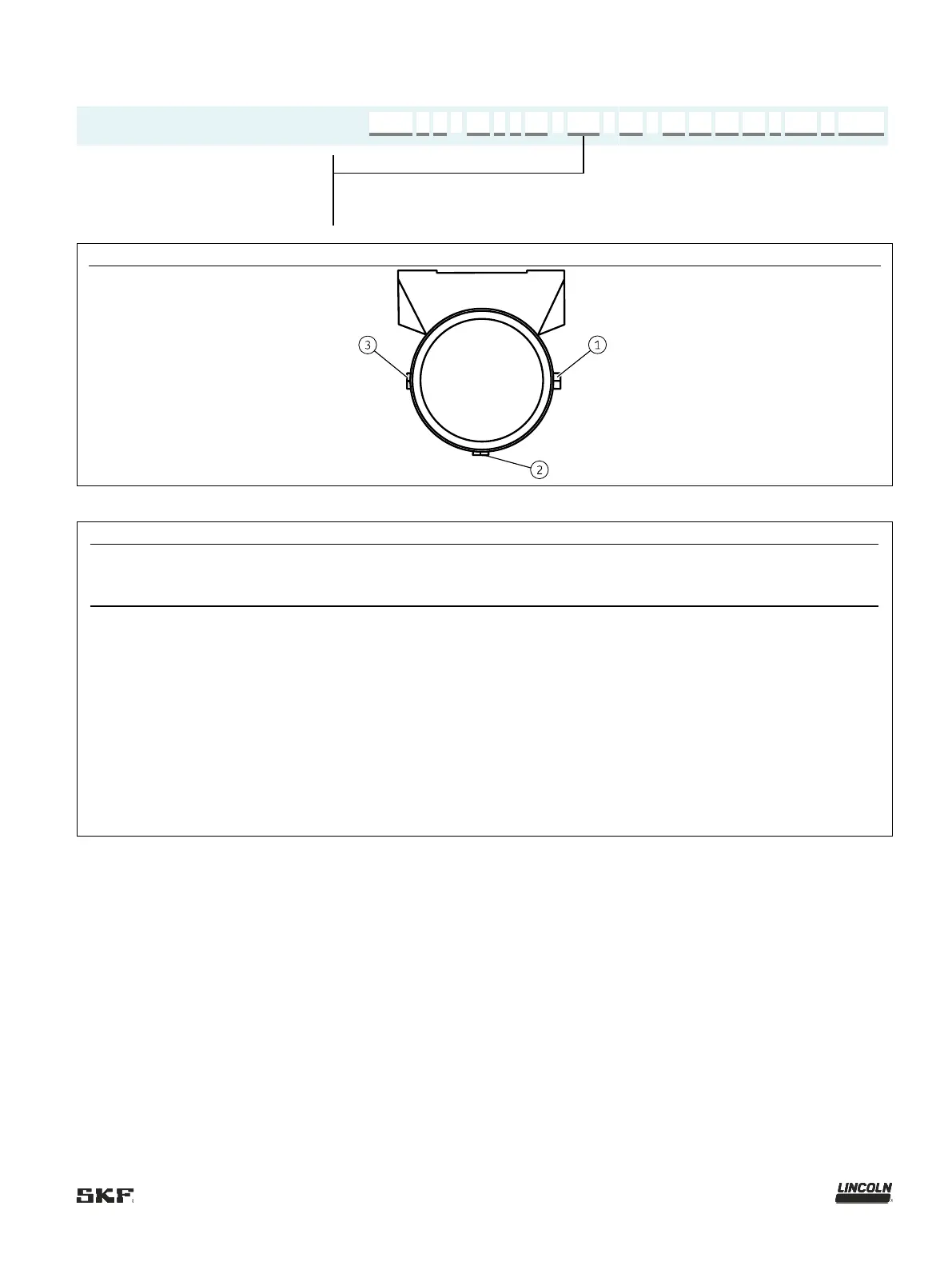

Position sequence: Right (Fig. 17/1),
Center (Fig. 17/2) and Left (Fig. 17/3).
For coding, see Table 23
Fig.
17
Layout of pump elements
Table
23
Pump elements
1)
Code
Description
0
Without/no pump element
5
Piston diameter = 5 mm
L
Piston diameter = 5 mm; delivery rate 0.03 ccm (only suitable for grease of NLGI Grade 00)
6
Piston diameter = 6 mm
7
Piston diameter = 7 mm
R
Piston diameter = 7 mm, adjustable pump element
B
Piston diameter = 7 mm, delivery volume equivalent to pump element 5 (piston diameter = 5 mm)
C
Piston diameter = 7 mm, for chisel paste
Thread:
Connection
Outlet (lubrication line)
M22x1.5
G1/4″
