SKOPE TME/SKT ActiveCore
Replacement Procedures
Service Manual
Doors
Alignment
Adjustment
If a door is out of alignment, realign it by loosening the top hinge bracket fixing screws, and
move the top of the door as required.
Height
Adjustment
A height adjustment block is fitted below the bottom hinge. As standard, the notched edges on
the bottom of the hinge and the top of the height adjustment block align to set the door to the
correct level. If the door is not at the correct height when at the standard setting, follow the
steps below to adjust the height.
Note: The door height cannot be adjusted on solid door cabinets, and on the middle door on
three door models.
4. To provide adequate space for tube removal, undo and remove the middle locating screw and
loosen the two outside slot screws to lower the top reflector (with LED tube).
5. Rotate and remove the failed LED tube, and fit the new LED tube.
6. Slide the top reflector back up as far as the slots allow, refit the middle locator screw and tighten the
outside screws to fix the top reflector in place.
7. Reassemble the fridge and reconnect to the power supply.
WARNING
For safe door operation the door bottom hinge bracket must
always be fitted with a split pin.

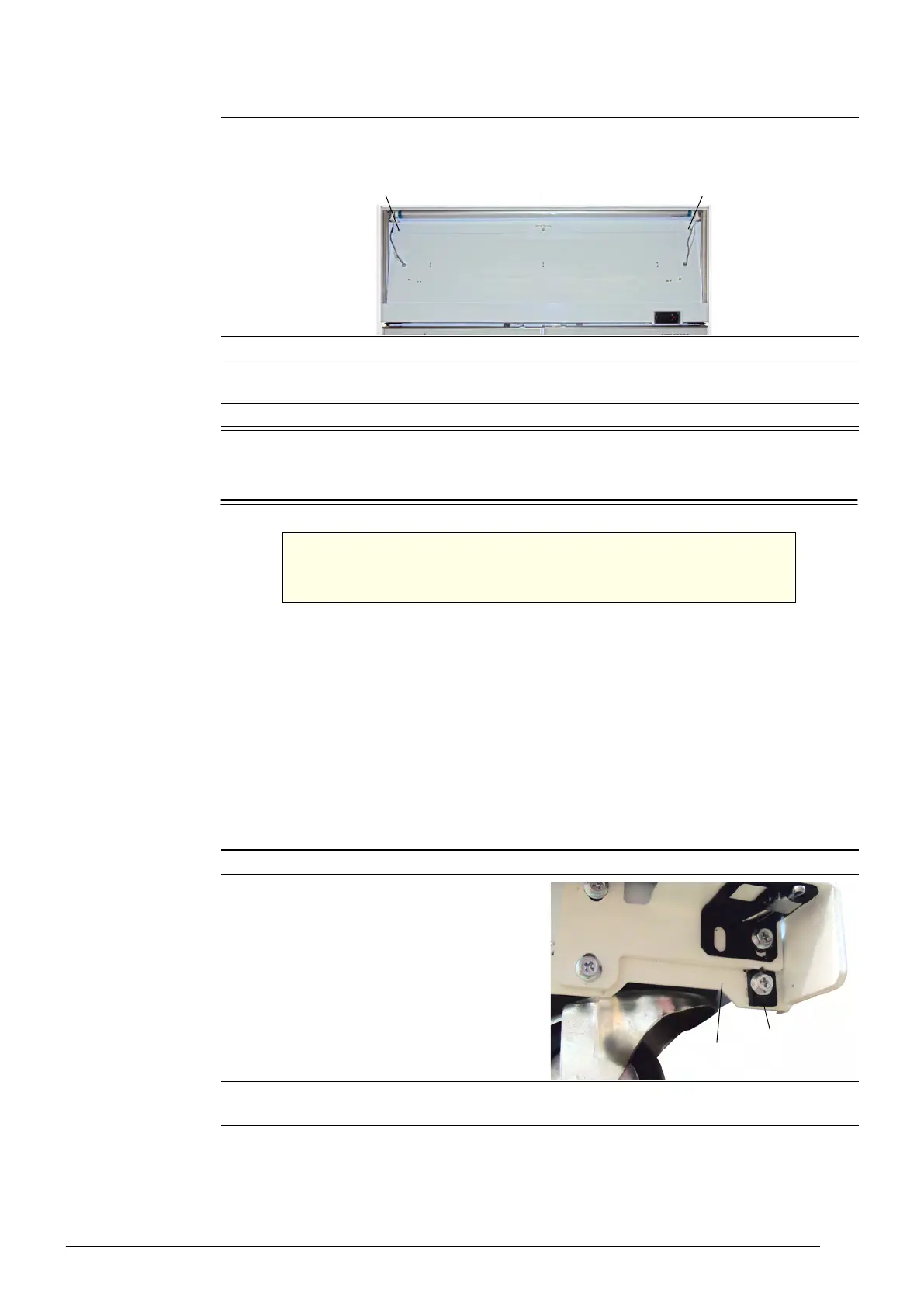

Procedure 16: To replace the sign light (continued)
Middle locating screw
(remove)
Outside slot screw
(loosen)
Outside slot screw
(loosen)
Procedure 17: To adjust the door height
1. Isolate the fridge from the power supply.
2. Loosen off the bottom hinge, and remove the
height adjustment block.
3. Set the door to the correct height, rotate and refit the height adjustment block to the most
appropriate setting and tighten up the bottom hinge screws.
Bottom hinge
Height adjustment
block
