SKOPE TME/SKT ActiveCore
Spare Parts
Service Manual
Lit Sign Assembly
Note:
Check the part colour before ordering. If the colour differs from the list above, state the specific colour when ordering.
1
2
3

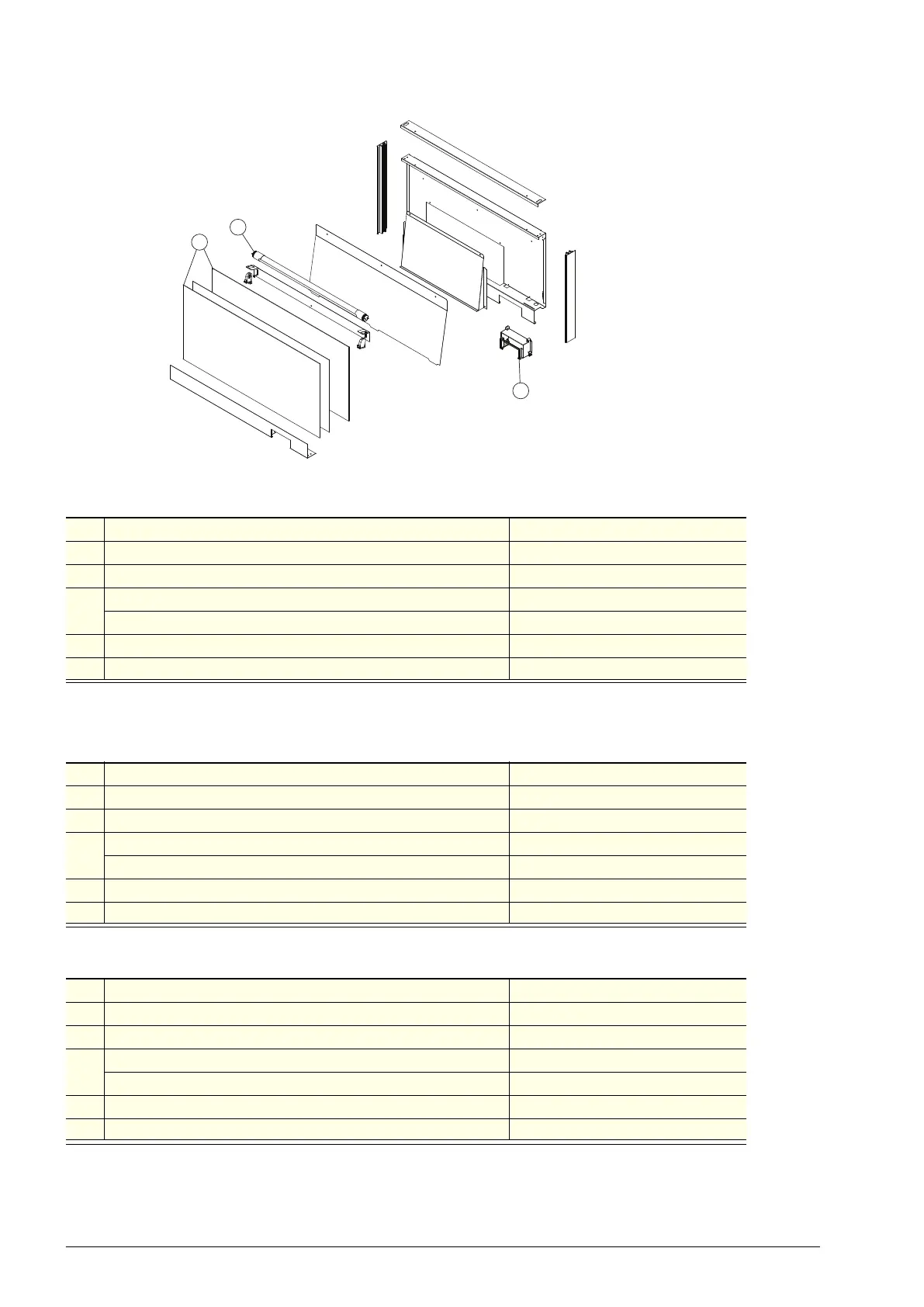

Table 27: Parts – Lit sign assembly TME650-AC/ACX, SKT650-AC/ACX
No. Description SKOPE Part No.
Sign assembly (excluding LED tube) HB0070825410
1
Eco-Point 11 watt frosted T8 LED tube (Ø26 mm × 600 mm) ELL10741
2
Sign panel (transparent) HB0070206409
Sign panel (opal) PLY11242-MT65
3
Controller surround HB0070206332
–
Sign extension flex (not shown) HB0070400627
Table 28: Parts – Lit sign assembly TME1000-AC/ACX, SKT1000-AC/ACX
No. Description SKOPE Part No.
Sign assembly (excluding LED tube) HB0070825408
1
Eco-Point 17 watt frosted T8 LED tube (Ø26 mm × 1034 mm) ELL11288
2
Sign panel (transparent) HB0070206408
Sign panel (opal) PLY11242-MT10
3
Controller surround HB0070206332
–
Sign extension flex (not shown) HB0070400627
Table 29: Parts – Lit sign assembly TME1500-AC/ACX, SKT1500-AC/ACX
No. Description SKOPE Part No.
Sign assembly (excluding LED tube) MT15BV/T61
1
Eco-Point 22 watt frosted T8 LED tube (Ø26 mm × 1500 mm) ELL10743
2
Sign panel (transparent) PLY11241-MT15
Sign panel (opal) PLY11242-MT15
3
Controller surround HB0070206332
–
Sign extension flex (not shown) HB0070400627
