Skope TME ActiveCore - UTSCCR-0001 (Remote)

68
Spare Parts
Service Manual
SKOPE TME/SKT ActiveCore
UTSCCR-0001 (Remote)
*Note: When ordered as a spare part, the refrigeration unit does not include evaporator box lid and top metal strap
bracket. If required, these items must be ordered in addition to the refrigeration unit (items 21 and 22).
9
2
3
4
6
7
810 1
11
12
13
14
16
17
18
19
20
15
5
21
22

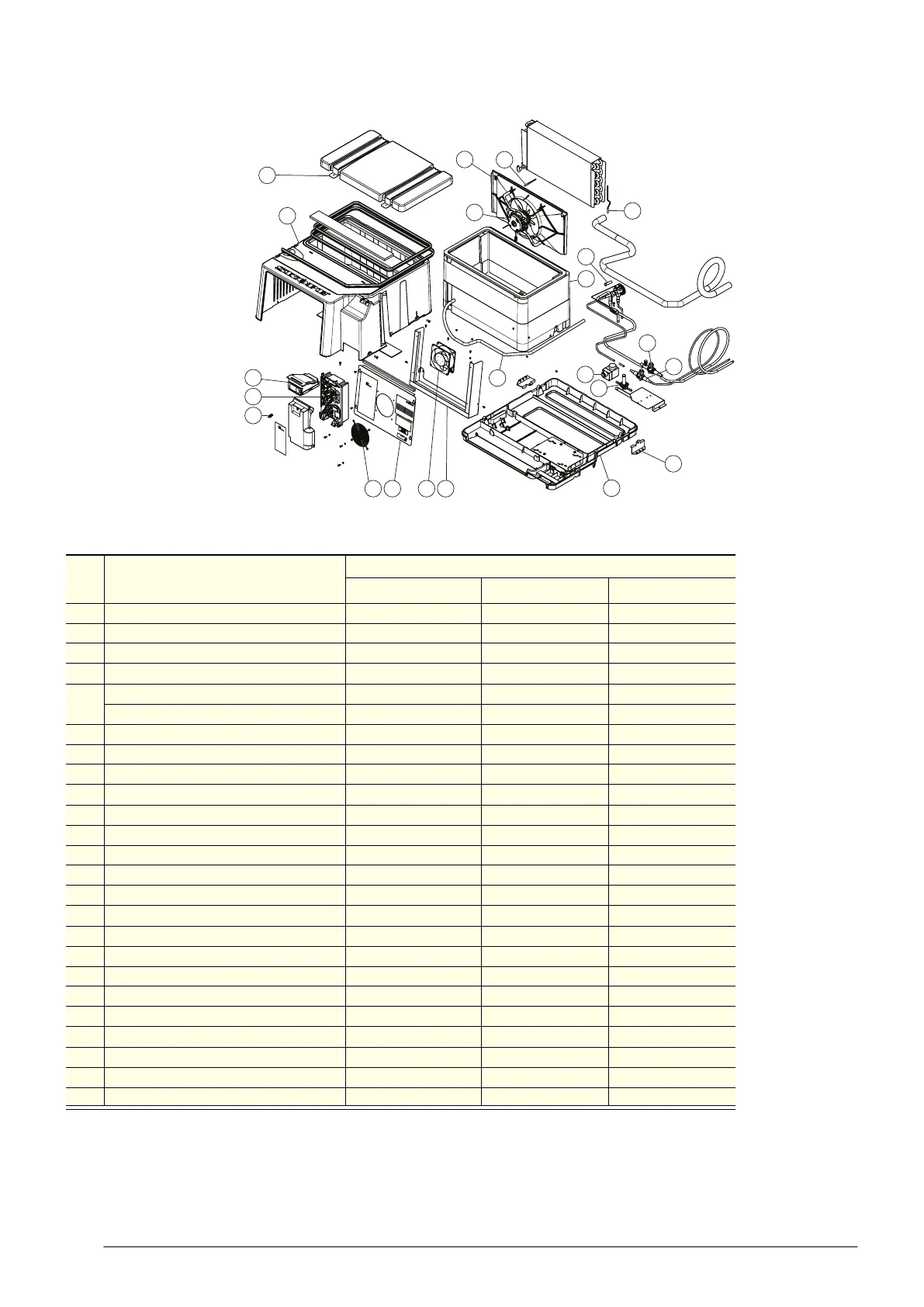

Table 32: Parts – Unit assembly UTSCCR-0002 (remote)
No. Description
SKOPE Part No.
Unpainted/standard Colour: White Colour: Black
Unit assembly* UTSCCR-0001 – –
1 Ventilation fan ELM10347 – –
2 Tyco 2-way bridge ELZ11199-RD – –
3 Evaporator tub HB0070510928A – –
4
Evaporator fan motor HB0074000581 – –
Evaporator fan blade HB0074000313A – –
5 Evaporator fan shroud HB0070206123
6 Remote unit plastic top cover UP02N00003A – –
7 Remote unit plastic bottom UP01N00003A – –
8 Ventilation fan panel UTSC CR/G51 – –
9 Ventilation fan surround UTSCCR/G51A – –
10 Fan guard WRK11151 – –
11 Drain tube PLE1057-1090 – –
12 Valve coil ELZ7654 – –
13 Defrost probe HB0070400506 – –
14 Control probe HB0070400542 – –
15 No. 00 orifice REF7596 – –
16 Ball valve – 3/8” + Schrader VAL11572 – –
17 Ball valve – 1/4” VAL11573 – –
18 Valve body VAL7653 – –
19 Electronic controller assembly HB0070825231 – –
20 Unit electrics box assembly HB0070825230 – –
21 Hold down bracket HB0070110815 – –
22 Top metal strap bracket HB0070110816 – –
23 Evaporator box lid HB0070511356 – –
