SKOPE TME/SKT ActiveCore
Installation
Service Manual
Door Handles
Fitting Door
Handles
For transit purposes door handles may be packed separately inside the cabinet. If the door
handle/s are packed separately, follow the procedure below.
Removing
Door Handles
The door handles can be removed for transporting and moving the cabinet through doorways,
or for refitting.
Procedure 1: To fit a door handle
1. Remove the handle/s from inside the cabinet by carefully cutting the cable ties securing the
handle, and remove the packaging.
A metal spring clip is fitted inside the handle mounts
at each end of the handle.
2. Ensure that the spring clips point up.
3. Place BOTH handle mounts simultaneously
onto both door brackets.
4. Push the handle down onto the brackets until
the handle locks into place.
Troubleshooting
• If the handle does not lock into place, ensure the spring clips are pointing up and try again.
• If only one end of the handle locks into place, unscrew the door handle (See “To remove a door
handle” on page 8), and refit, ensuring both the handle mounts are placed onto the brackets before
pushing the handle down and locking into place.

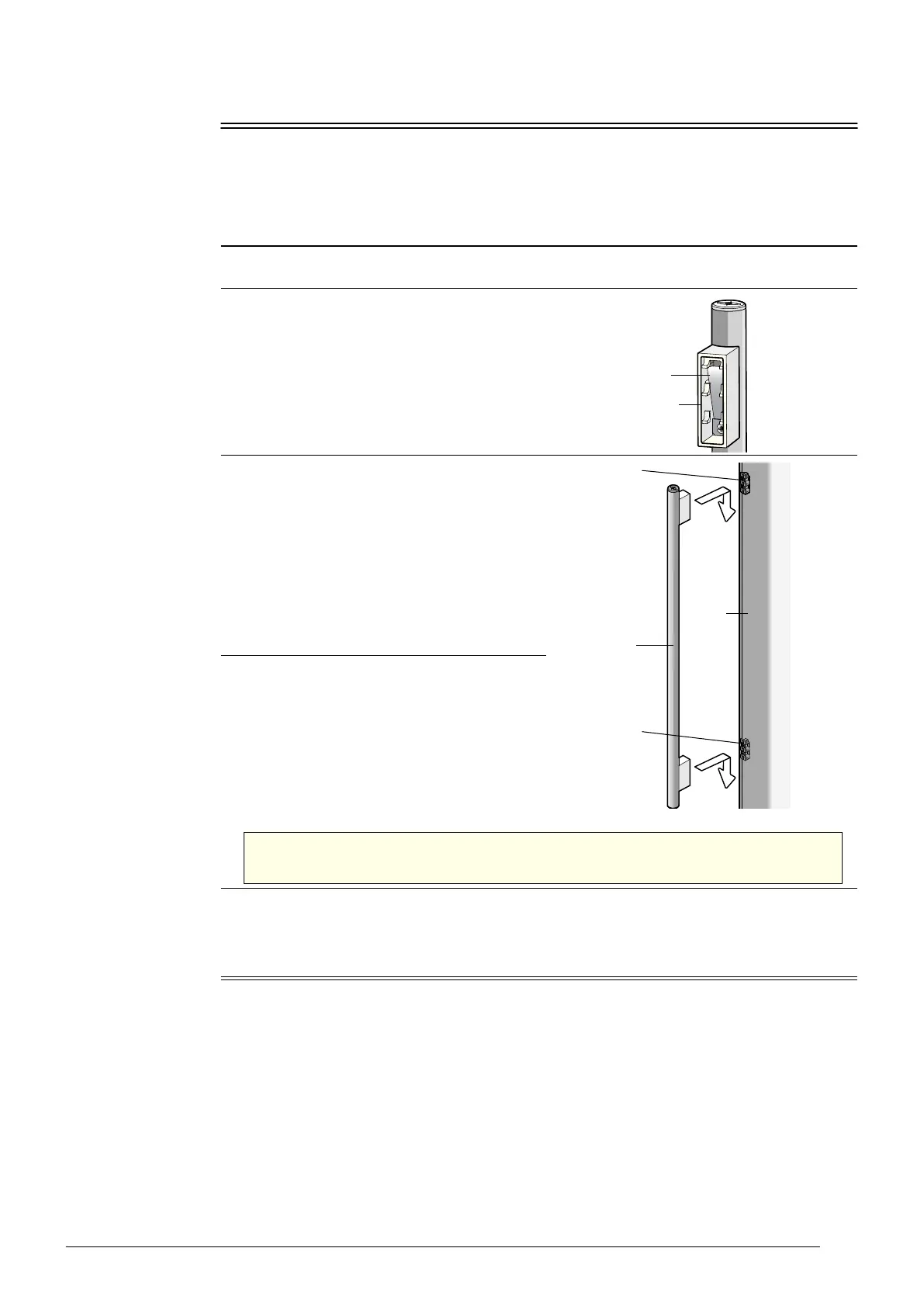

Handle mount
Spring clip
(pointing up)
Handle
Bracket
Front of
door
Bracket
CAUTION
Ensure BOTH handle mounts are in position before pushing down.
