28
Replacement Procedures
Service Manual
SKOPE TME/SKT ActiveCore
Replacing the
Gasket
The one-piece door gasket clips into the door frame and runs around the perimeter of the door.
Remove the gasket by peeling it from the door frame, starting at a corner.
If the gasket is out of shape after refitting, use a hair dryer to heat and reshape it.
Removing and
Refitting the
Door
For ease of servicing and to reverse the hinging, the door can be removed from the cabinet.
Refer to image below for door hinging components.
Adjusting Door
Tension
The door has an internal torsion bar, pretensioned at the factory, that lets the door self-close.
If necessary, the door tension can be further adjusted by rotating the capstan mounted in the
bottom hinge bracket.

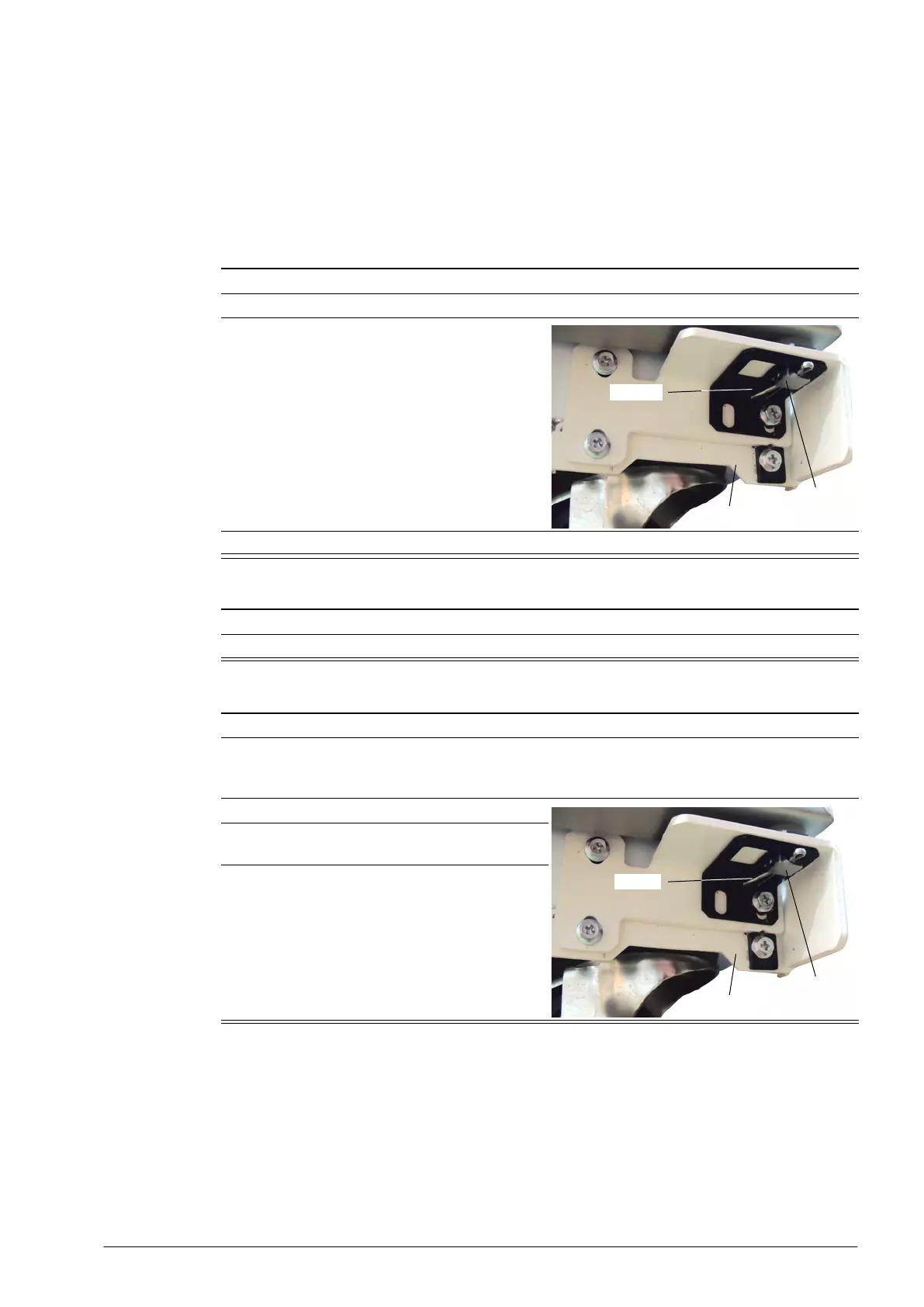

Procedure 18: To remove the door
1. Isolate the fridge from the power supply.
2. Remove the sign panel.
3. Remove the split pin from the capstan at the
bottom hinge (outside door pictured).
4. Unscrew the top hinge, and lift the door up and off the cabinet.
Procedure 19: To replace the top hinge bracket
1. Follow Procedure 18 to remove the door.
2. Remove the top hinge from the top of the door and replace.
Procedure 20: To refit the door
1. Lift the door onto the bottom hinge.
2. Fit the top hinge to the top of the door, and partially fix in place on the top of the cabinet. Align the
door with the cabinet and tighten the fixing screws.
3. Ensure the top hinge spacer is fitted under the top hinge before fixing the top hinge in place.
4. Apply tension to the door (see page 28).
5. Fit the split pin through the hole in the capstan to
lock the door in place (outside door pictured).
6. Fit the height adjustment block to the bottom
screw hole (not fitted to middle doors).
• As standard, the notched edges on the
bottom of the hinge and the top of the height
adjustment block align to set the door to the
correct level.
• If necessary, rotate the height adjustment
block to level the door.
Split pin
Bottom hinge
Capstan
Split pin
Bottom hinge
Capstan
