Replacement Procedures
Service Manual
SKOPE TME/SKT ActiveCore
Unit Electrics
Box Assembly
The unit electrics box assembly contains the mains supply socket, fuses, EMI filter and panel
mount socket connectors for the unit and cabinet. Refer to the label on the electrics box cover
for socket connection identification.
Due to the confined space within the unit electrics box, plugs may come loose as a result of
movement and vibrations. Take care when refitting to ensure all plugs are securely attached
to the correct sockets.

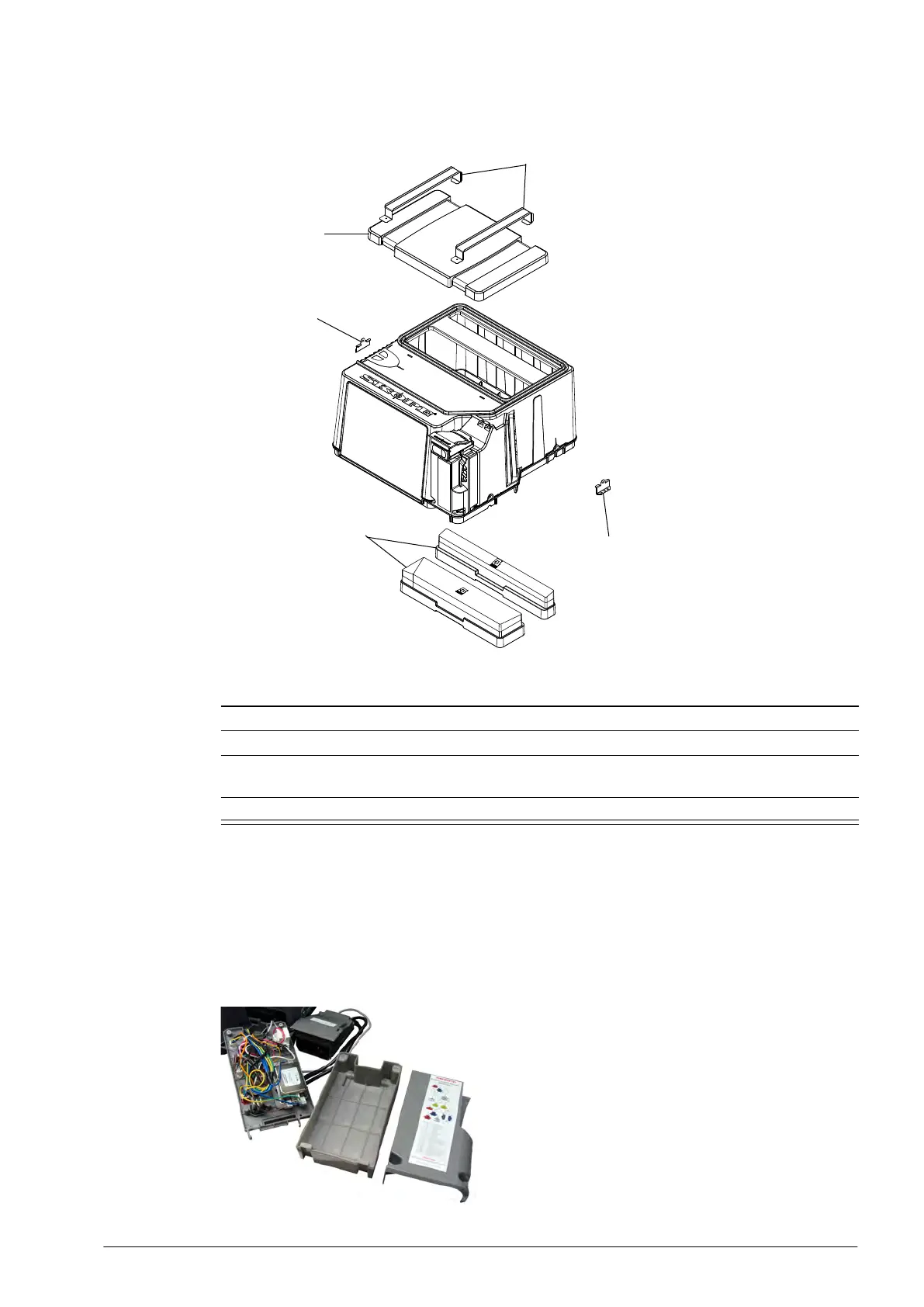

Evaporator
tub lid
Top strap
brackets
Hold down
bracket
Hold down
bracket
Bottom plugs
Procedure 27: To replace a unit with a SKOPE supplied spare part refrigeration unit
1. Isolate the fridge from the power supply and remove the existing unit (see page 34).
2. On the new unit, push the bottom plugs out of the bottom of the evaporator box.
3. Swap the evaporator tub lid, top strap brackets and hold down brackets from the existing unit to the
new unit.
4. Fit the new unit to the cabinet.
