Skope TME ActiveCore - TME1500 Series, SKT1500 Series - Cabinet Assembly

54
Spare Parts
Service Manual
SKOPE TME/SKT ActiveCore

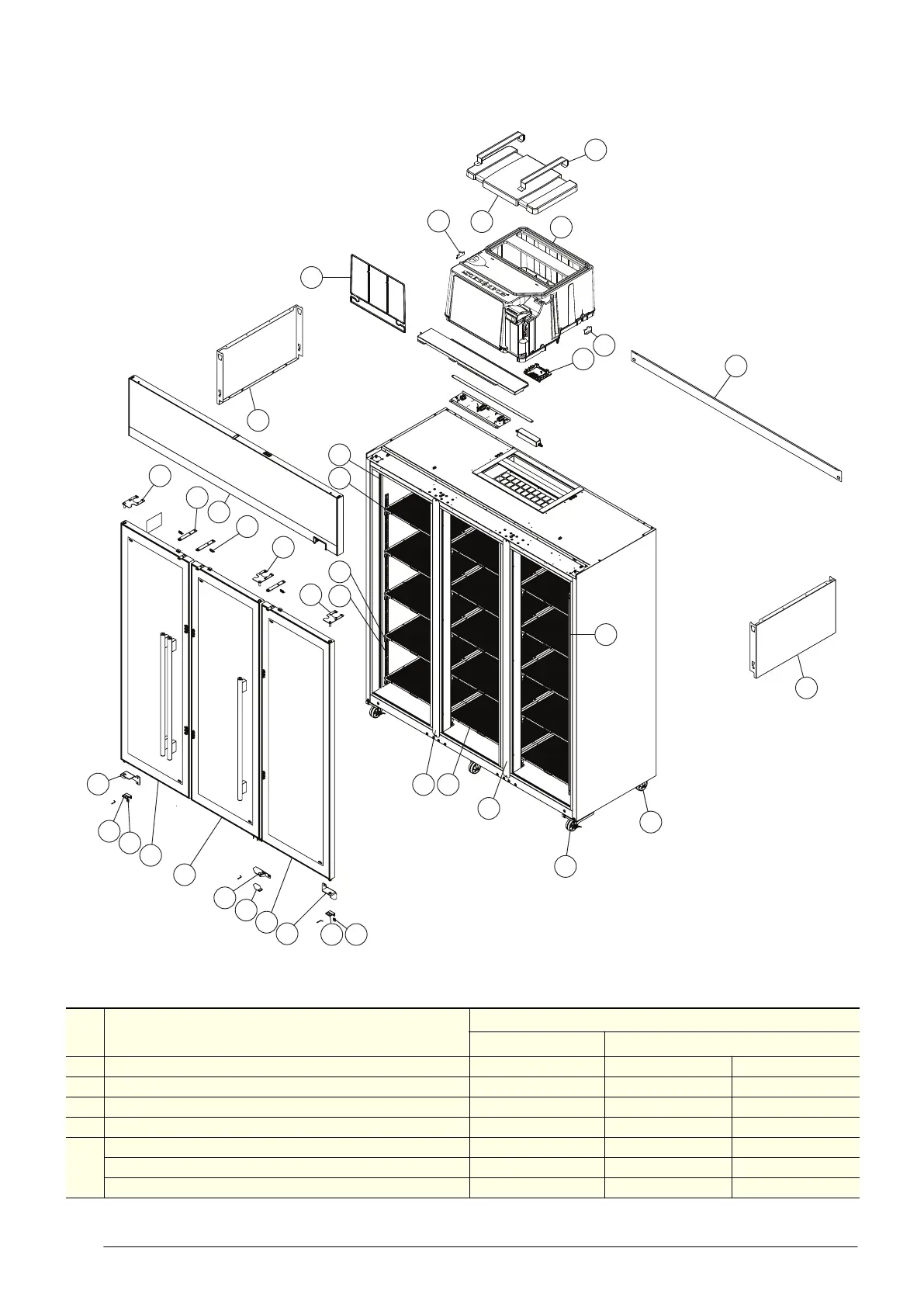

TME1500 Series, SKT1500 Series – Cabinet Assembly
1
2
3
22
4
6
7
5
8
9
9
10
11
12
13
14 16
14
16
15
17
18
19
20
22
25
26
27
21
28 *
29
30
31
31
23
24
32
Table 15: Parts – Cabinet assembly: TME1500 series, SKT1500 series
No. Description
SKOPE Part No.
Unpainted/standard Colour: White Colour: Black
1 Shelf clip – HB0070205867 PLM10903BK
2 Shelf support strip HB0070110331 – –
3 Wire shelf – outside – SM15BV/570S –
4 Wire shelf – middle – SM15BV/570 –
5
Door assembly right hand – standard* – HB0070824788 GLD11372R-BK
Door assembly right hand – tropical* – GLD11406R-WH GLD11406R-BK
Door assembly right hand – solid* MT10SZ/D40 MT10SZ/D40-32 MT10SZ/D40-49
