SKOPE TME/SKT ActiveCore
Shelves
The fridge is fitted with five wire shelves per door, which may be positioned at different heights
to suit various products
Shelf Clips Each wire shelf is held in place with four shelf clips, which engage in the shelf support strips
and slide up and down to the desired shelf position.
The support strips are numbered for easy location of shelf clips. View the numbers in the
bottom left hand corner of the shelf clip.
Procedure 2: To remove a door handle
1. Open the door, and peel back the door gasket from behind the handle mounts on the inside of the
door frame.
2. Unscrew the handle mounts through the holes on the inside of the door frame (top and bottom
screws only), and remove the handle.

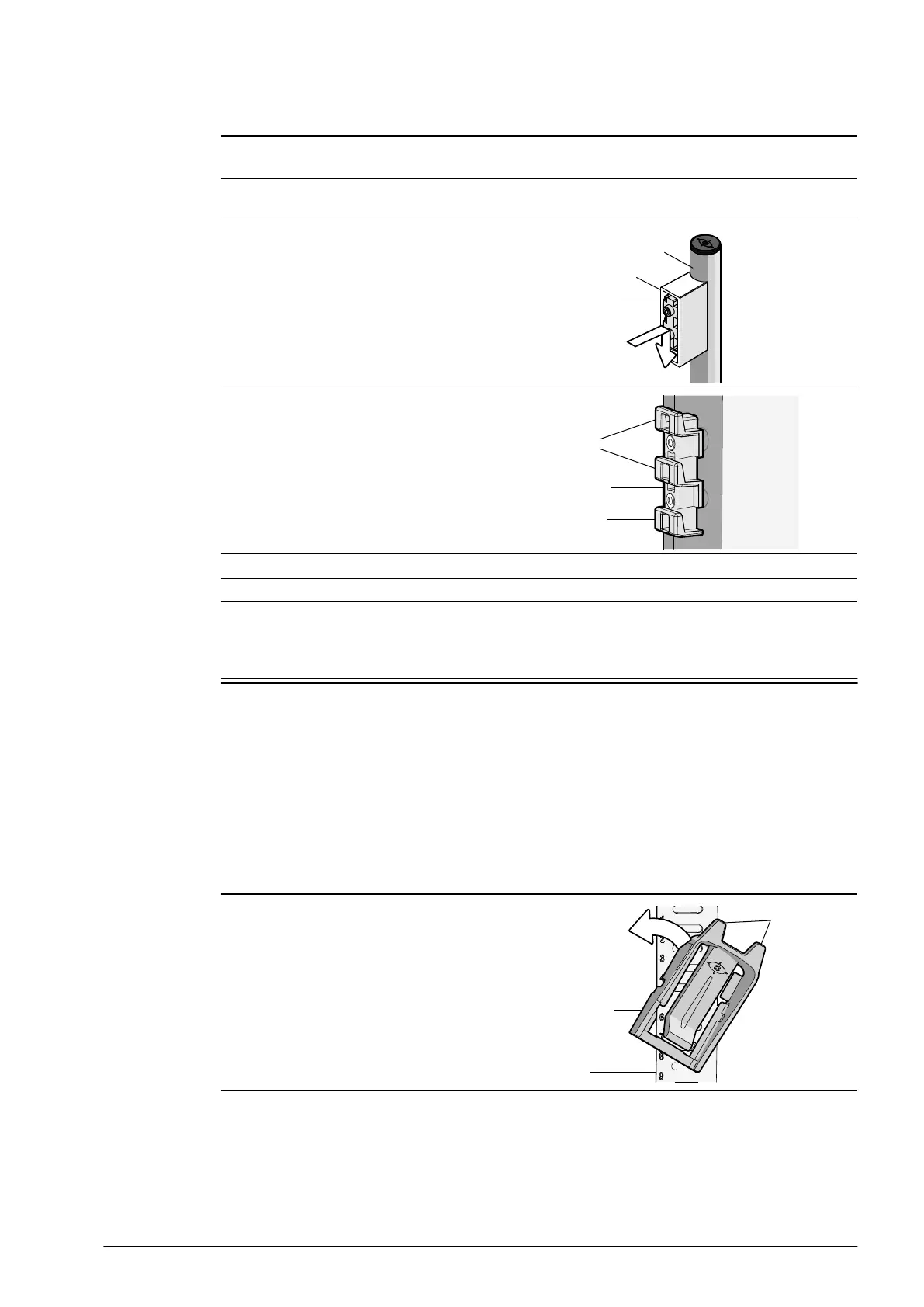

3. Remove the bracket/s from the handle mount by
pressing the bracket in and down until it unclips
from the handle mount.
4. Fit and screw the bracket/s back onto the door.
Ensure the catches are pointing up as pictured.
5. Refit the door gasket by clipping it back into place on the inside of the door frame.
6. If the gasket is out of shape after refitting it, use a hair drier to heat and reshape it.
Bracket
Handle mount
Handle
Bracket
Catch
Catch
Procedure 3: To fit a shelf clip
1. The shelf clip twists onto the shelf support
strip. Position the shelf clip with the flat side up
against the shelf support strip and the two
prongs pointing up. Twist the top of the clip
anticlockwise onto the shelf support strip until it
locks in place.
Shelf
support
strip
Prongs
Shelf clip
