42
Replacement Procedures
Service Manual

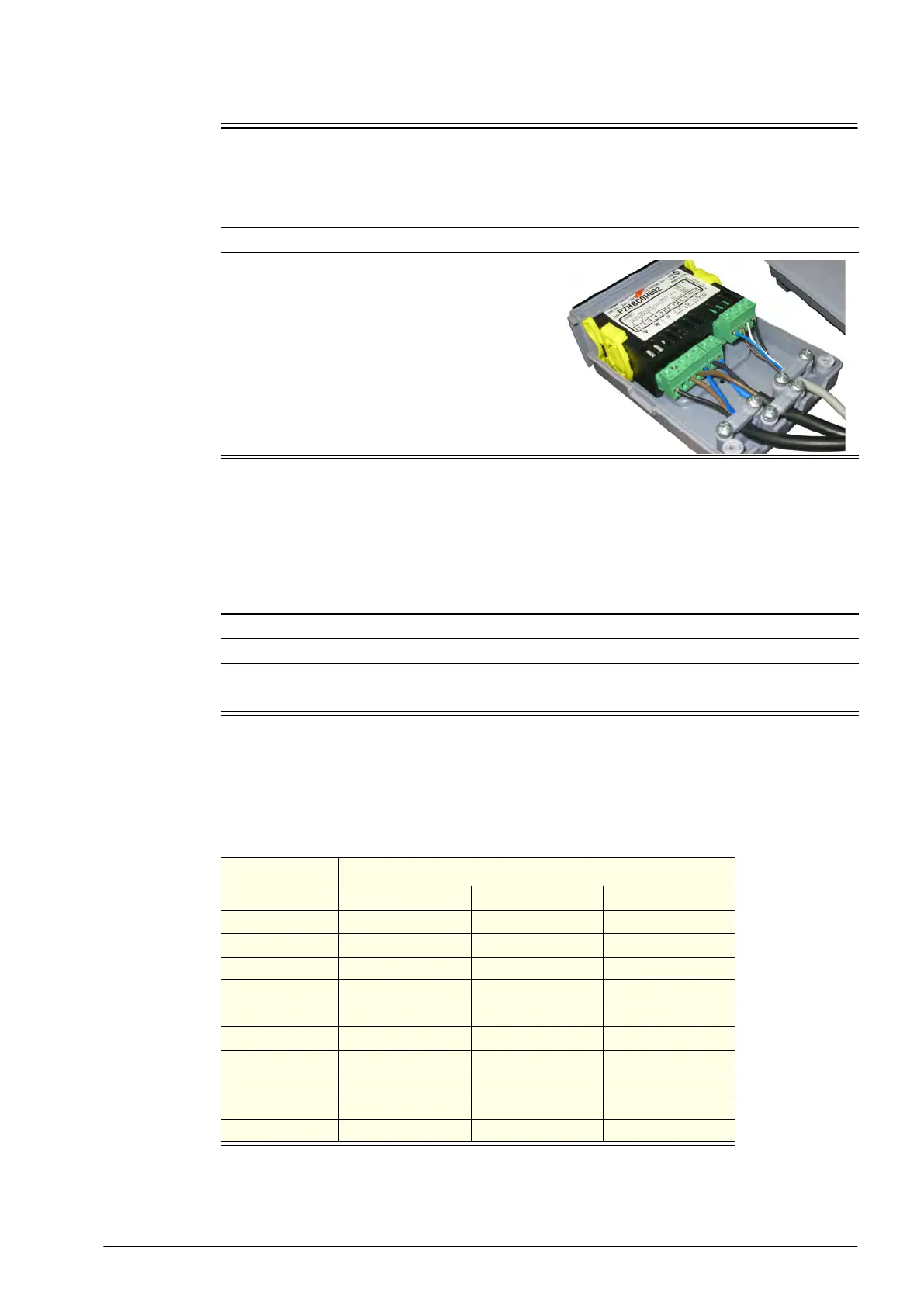

SKOPE TME/SKT ActiveCore
Electronic Controller
Electronic
Controller
Location
The electronic controller is located within the electronic controller box assembly.
Door Switch The fridge is fitted with a door switch above each door, which tells the electronic controller
when a door is opened. A small magnet in the door frame activates the switch. A cable
connects the switch to the electronic controller via an inline connector on top of the cabinet.
NTC Probe
Resistance
To test a probe for correct operation, check that its resistance falls within the limits in the table
below.
Procedure 37: To access the controller
1. Isolate the fridge from the power supply.
2. Open the electronic controller box assembly by
undoing the two fixing screws at the rear of the
assembly.
Procedure 38: To remove the door switch
1. Isolate the fridge from the power supply.
2. Disconnect the door switch cable plug from the inline connector on top of the cabinet.
3. Unscrew the two fixing screws from the door switch and remove from the door switch bracket.
4. Fit the replacement door switch and connect via the inline connector.
Table 12: Probe resistance
Temperature
Resistance (kΩ)
Maximum Typical Minimum
-10°C 43.52 42.47 41.43
-5°C 34.66 33.90 33.15
0°C 27.83 27.28 26.74
5°C 22.45 22.05 21.66
10°C 18.25 17.96 17.67
20°C 12.24 12.09 11.94
25°C 10.10 10.00 9.90
30°C 8.41 8.31 8.21
40°C 5.92 5.83 5.74
50°C 4.24 4.16 4.08
