Skope TME ActiveCore - TME1000 Series, SKT1000 Series - Cabinet Assembly

52
Spare Parts
Service Manual
SKOPE TME/SKT ActiveCore
TME1000 Series, SKT1000 Series – Cabinet Assembly
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
17
18
19
13
11
12
14
24
25
25
20 *
21
22
23
23

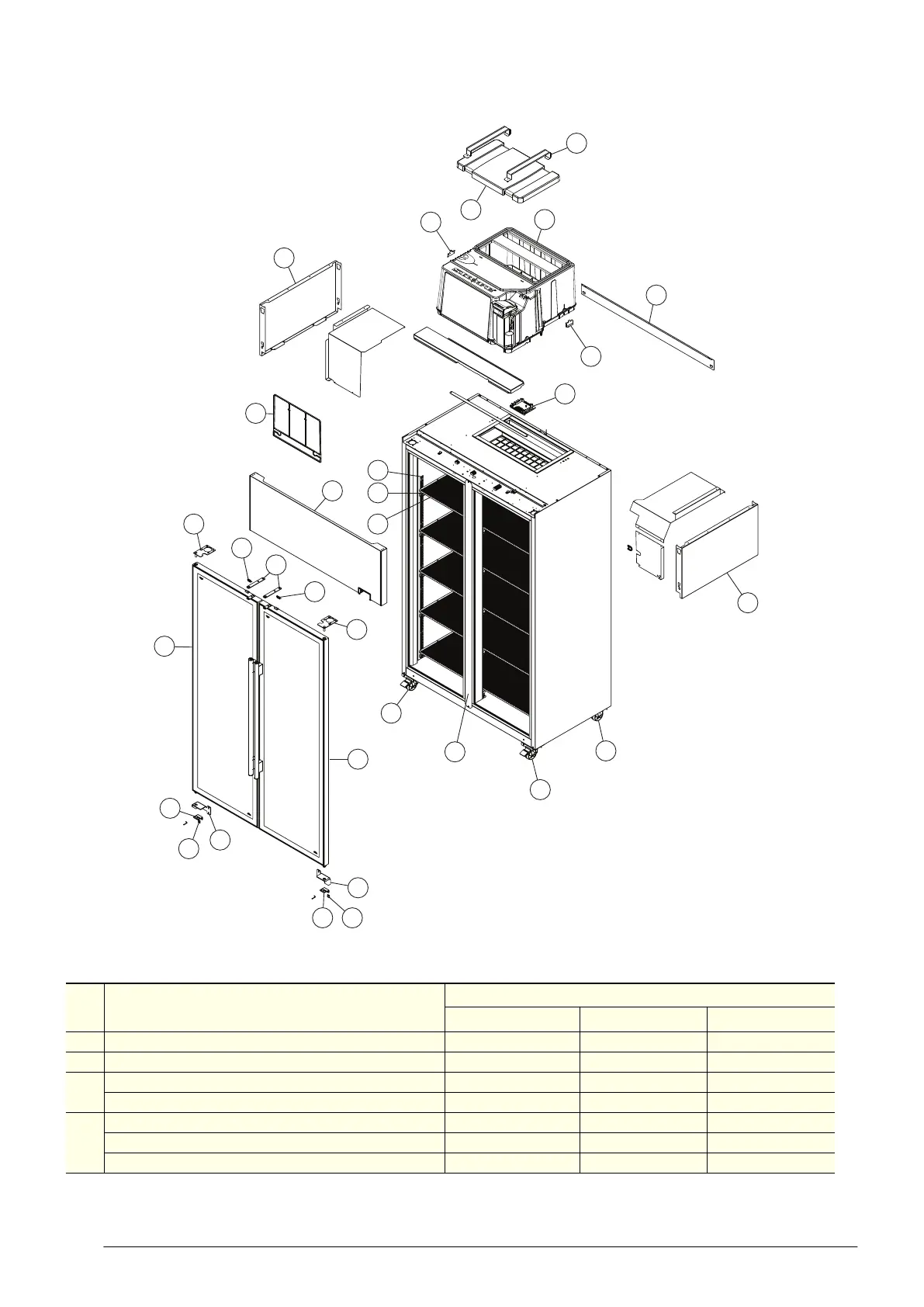

Table 14: Parts – Cabinet assembly: TME1000 series, SKT1000 series
No. Description
Part No.
Unpainted/standard Colour: White Colour: Black
1 Shelf clip – HB0070205867 PLM10903BK
2 Shelf support strip HB0070110331 – –
3
Wire shelf – split (10 per cabinet) – HB0070110862 –
Wire shelf – wide (5 per cabinet) – HB0070110863 –
4
Door assembly (right hand) – standard – HB0070824788 GLD11372R-BK
Door assembly (right hand) – tropical – GLD11406R-WH GLD11406R-BK
Door assembly (right hand) – solid MT10SZ/D40 MT10SZ/D40-32 MT10SZ/D40-49
