37
SKOPE TME/SKT ActiveCore
Replacement Procedures
Service Manual
Unit Cover Remove the unit cover to access parts within the unit assembly.
Condenser
Fan
The condenser fan assembly is made up of a fan motor, fan blade and mounting brackets
which can be replaced if necessary.
If the fan stops for any reason, check all connections to ensure no plugs have come loose.
Refer to the label on the electrics box cover to identify the condenser fan plug and socket in
the electrics box.
It is important that the fan blade and/or fan motor is replaced with the same part to ensure
correct alignment and refrigeration performance. Fan blades should be tightened to the fan
motor manufacturer recommended torque settings (shown in the table below).

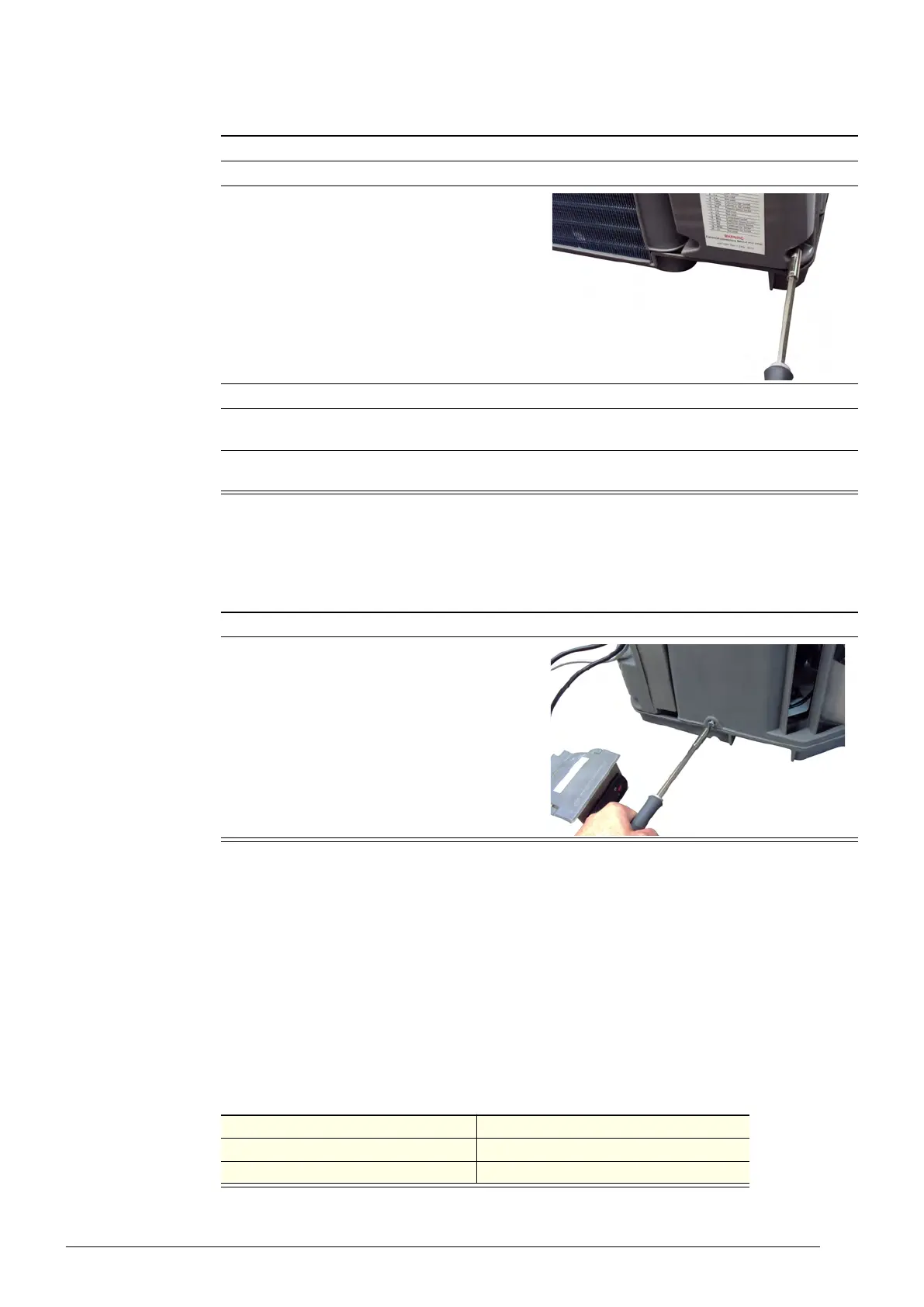

Procedure 28: To remove and open the unit electrics box assembly
1. Isolate the fridge from the power supply.
2. If present, unclip the electronic controller from the top of the electrics box.
3. Undo the two fixing screws at the bottom of the
electrics box cover, and remove the cover.
4. Unplug all unit plugs from the unit electrics box.
5. Undo the two fixing screws at the base of the electrics box, and detach the electrics box from the
unit.
6. To open the electrics box, undo the two fixing screws on the back of the electrics box and swing the
back cover off.
Procedure 29: To remove the unit cover
1. Isolate the fridge from the power supply and remove the refrigeration unit (see page 34).
2. Unscrew the four machine screws from the sides
of the refrigeration unit and lift the cover off the
unit.
Table 10: Fan motor manufacturer recommended torque settings
Fan motor manufacturer Torque setting
EBM 1.4 N m
Wellington Drive 2.1 N m
