SKOPE TME/SKT ActiveCore
Installation
Service Manual
Repositioning
Shelves
When repositioning standard shelves, unload and remove the shelf, establish the desired
position and slide the shelf clip in each of the shelf support strips to the desired position (see
Procedure 4 above). Sit the shelves on the shelf clips.
When repositioning shelves fitted with shelf lights, the height is adjusted as per normal with the
shelf clips. The shelves can be repositioned as far as the shelf light cable reasonably allows
via the fixed cut out in the side channel cover (see procedure below).
Top Shelf Light
and Ticket
Strip
Adjustment
Cabinets fitted with shelf lights are supplied with additional grey coloured shelf light clips. If
required, these can be fitted in place of the existing standard top shelf light clips to lower the
top shelf light and ticket strip, providing greater visibility to the top shelf.
Follow the procedure below to fit the grey clips.

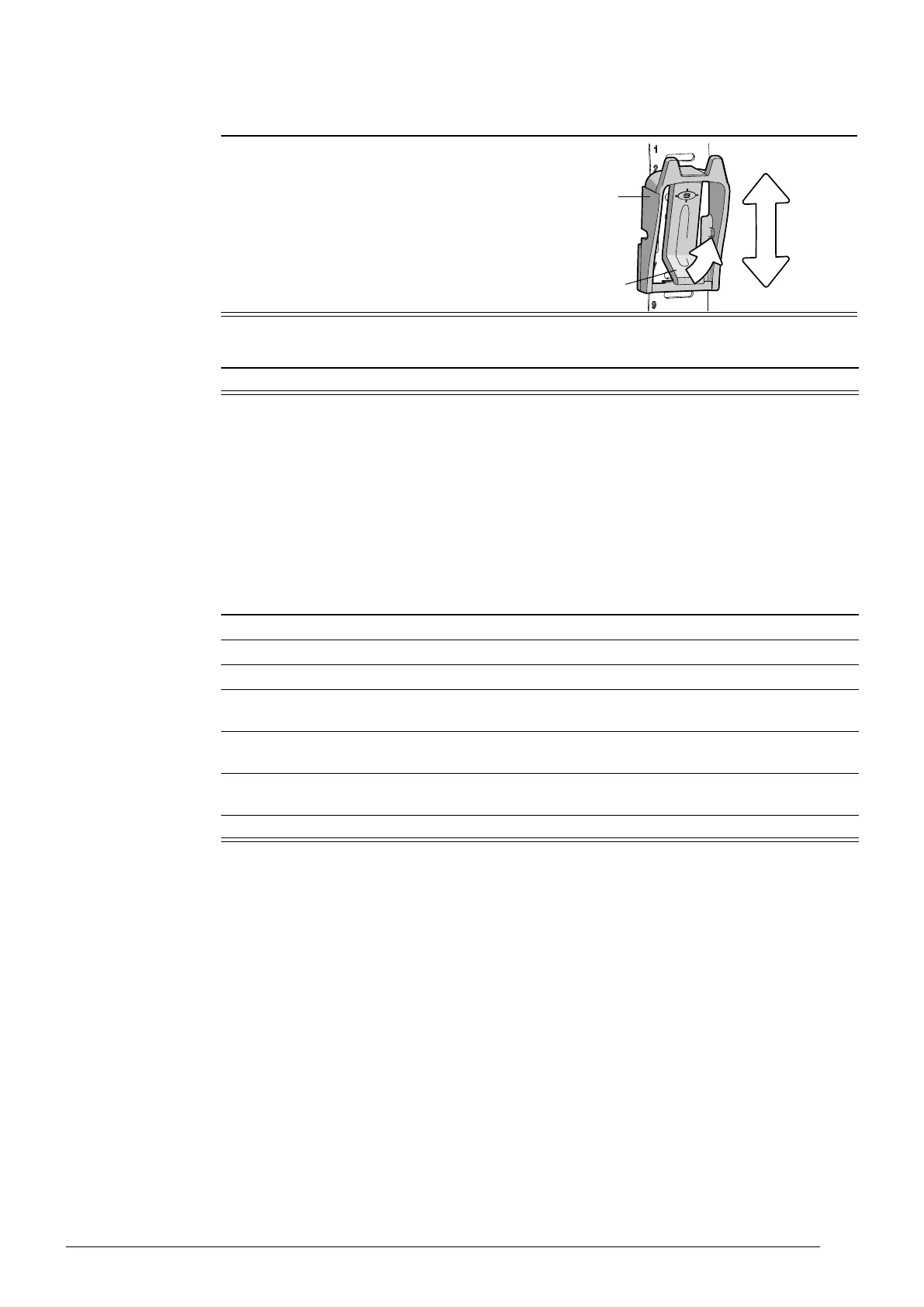

Procedure 4: To slide a shelf clip up and down
1. Pull the shelf clip tab up and slide the shelf clip
up or down as required. Once in position,
ensure the shelf clip is locked into place.
Procedure 5: To remove a shelf clip
1. Pull the shelf clip tab up and twist the top of the clip clockwise off the shelf support strip.
Shelf clip
Tab
Procedure 6: To reposition shelves fitted with lights
1. Isolate the fridge from the power supply (see “Replacement Procedures” on page 23).
2. Remove product from the shelf required to be moved, and from the shelf immediately above it.
3. Establish the desired shelf position.
4. Support the weight of the shelf and lift it up off the shelf clips. Be careful not to damage the
connected shelf light cables running through the front shelf clips.
5. Slide the shelf clip in each of the shelf support strips to the desired position (see “” on page 9). The
shelves can be repositioned as far as the shelf light cable reasonably allows.
6. After the shelves have been securely positioned, connect cabinet to the power supply and check for
correct operation.
7. Reload the shelves with product.
