Replacement Procedures
Service Manual
SKOPE TME/SKT ActiveCore

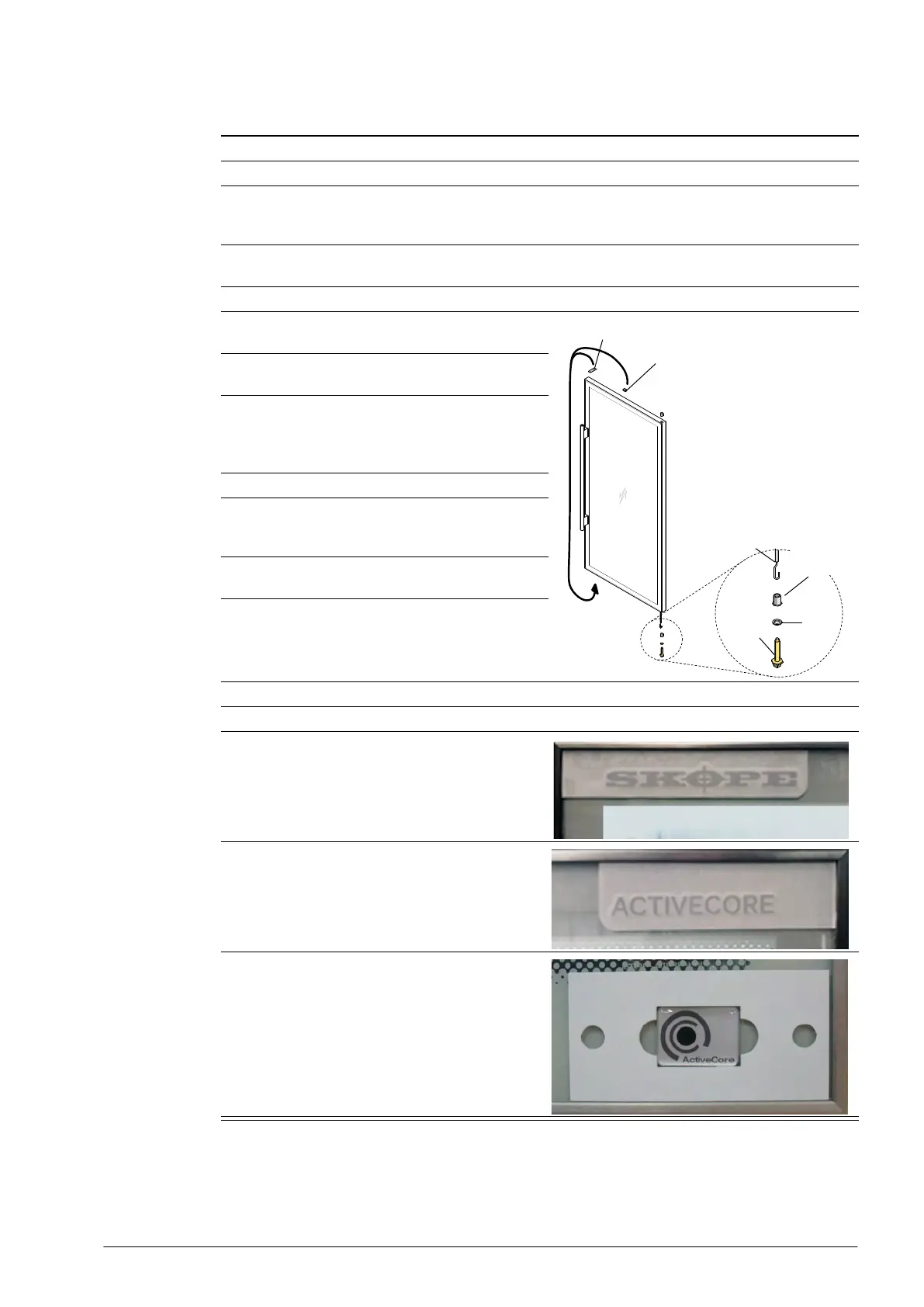

Procedure 23: To reverse the door hinging
1. Remove the door from the cabinet (see page 28).
2. Remove the door lock bracket from the top of the cabinet and fit to the other side.
3. Remove the bottom hinge, tension bracket and height adjustment block. Retain the tension bracket
and height adjustment block (these are fitted to the opposite side once the door is refitted). The
bottom hinge can be discarded.
4. Unplug the door switch cable from the cabinet. The door switch is fitted to the door switch bracket,
above the door.
5. Fit the new bottom hinge.
6. Remove the door lock bracket from the door,
and fit to the opposite end.
7. Remove the bush and retain for the other end of
the door.
8. Remove the capstan, bush and bush washer,
and unhook from the torsion bar.
Note: The torsion bar cannot easily be removed
from the door.
9.
Push the torsion bar into the door frame.
10. Fit the capstan, bush and bush washer to the
new torsion bar, and fit this assembly to the
opposite end of the door.
11. Fit the bush (retained from step 2) to the end of
the door, opposite the capstan.
12. Remove the door switch magnet from the end of
the door, and fit to the opposite end.
Note: Ensure the magnet is orientated correctly and
does not protrude past the frame edge.
13. Remove all labels from the door, and clean off any adhesive left by the labels.
14. Refit the door (see page 28).
15. Apply the SKOPE logo label to the top left hand
corner of the door. Use the label backing to align
the label as pictured.
16. Apply the ACTIVECORE label to the top right
hand corner of the door. Use the label backing to
align the label as pictured.
17. Use the supplied ActiveCore badge positioning
jig to position and apply the ActiveCore badge to
the bottom right hand corner of the door as
pictured.
Torsion bar
Bush
washer
Capstan
Bush
Door lock bracket
Door switch magnet
