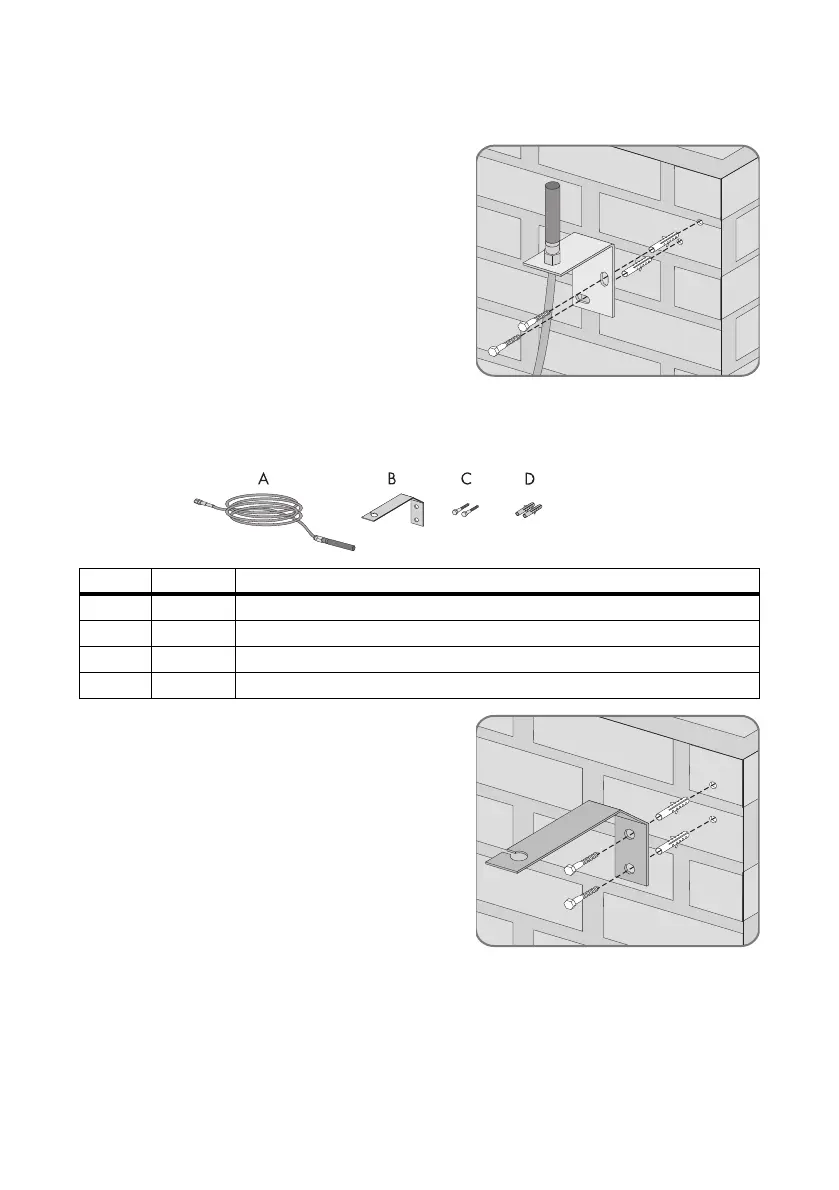

Mounting the GSM antenna with the supplied bracket

1. Hold the antenna bracket against the wall and

mark the holes with a pen.

2. Drill holes with 6 mm diameter at the marked points

and insert wall anchors.

3. Attach the antenna bracket to the wall using

suitable screws.

4. Lay the antenna cable to the Sunny WebBox.

☑ You have now successfully mounted the antenna.

Mounting a GSM Antenna with the GSM

Antenna Extension Set

Additional accessories available for the Sunny WebBox.

1. Hold the antenna bracket against the wall and

mark the holes with a pen.

2. Drill holes with 8 mm diameter at the marked points

and insert wall anchors.

3. Attach the antenna bracket to the wall using

suitable screws.

Position Quantity Designation

A 1 Antenna with 10 m antenna cable (pre-assembled)

B 1 antenna bracket

C2 Screws

D2 Wall anchors
