SMA Solar Technology AG Commissioning
Technical Description SWebBox-TEN101232 33

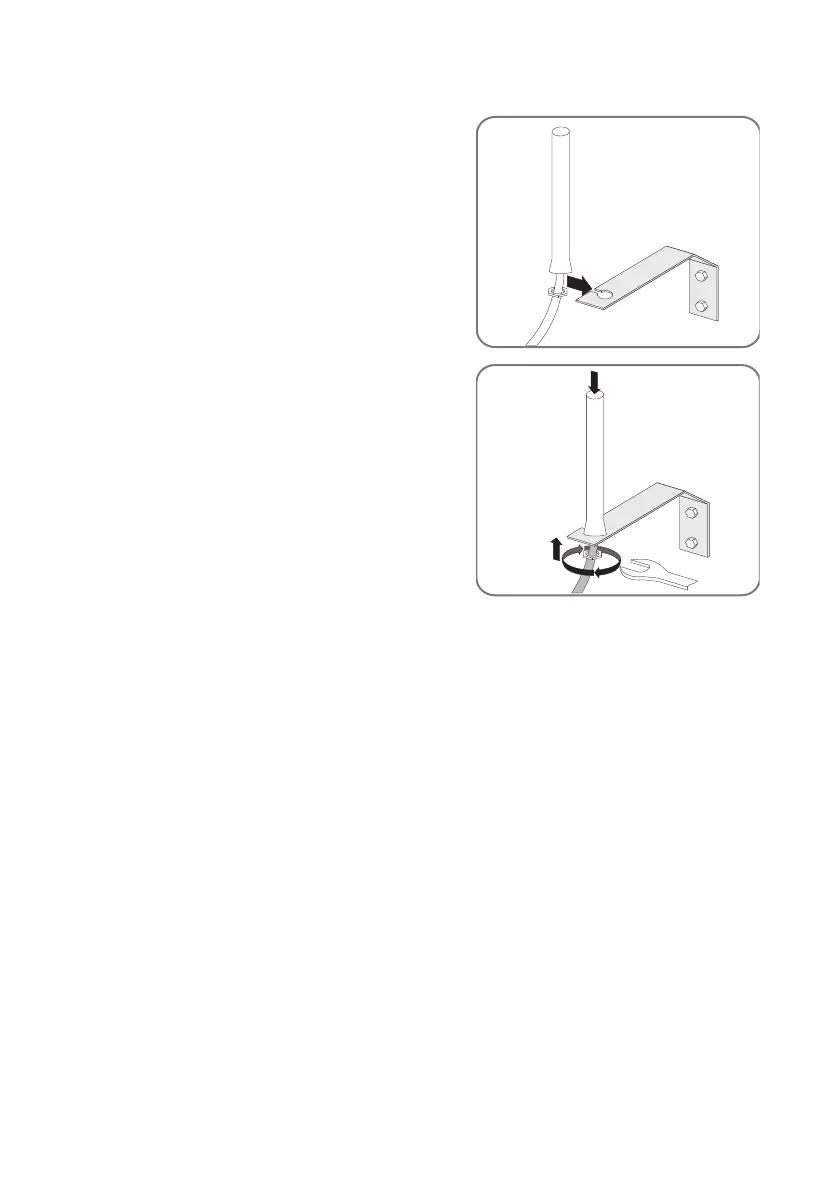

4. Loosen the counternut from the antenna, and pass
the antenna with the cable into the antenna bracket
from the side.
5. Insert the antenna from above into the antenna
bracket.
6. Hold the antenna to prevent the antenna cable
twisting. Tighten the antenna counternut by using a
wrench.
7. Lay the antenna cable to the Sunny WebBox.
☑ You have now successfully mounted the antenna.
