-111-
No.EX※※-OMX1011
■Device Level Ring (DLR) function
This SI unit can be used as an EtherNet/IP
TM
compliant node for network rings with the DLR function.
To enable the DLR function, all of the ring nodes need to be applicable to the DLR function. Since all of the
DLR function settings are performed by the Ring Supervisor, there is no need to perform any settings to the
SI unit. Refer to the manual for the Ring Supervisor for detailed settings.
■QuickConnect
TM
function
This SI unit can be used as an EtherNet/IP compliant node for networks with the QuickConnect
TM
function.
To enable the QuickConnect
TM
function, it is necessary to perform communication setting and
QuickConnect
TM
function setting to the SI units, as shown below. After satisfying these conditions, setting of
the QuickConnect
TM
compliant EtherNet/IP module (master), must be performed according to the specified
procedure. Refer to the manual for the EtherNet/IP module (master) for the procedure.
1. Communication setting
Disable the auto negotiation of the ports being used, set the communication speed to 100 Mbps, and the
communication method to full duplex. Change the EtherNet Link Object to the values shown below.
Please return setting to "0001 0000", when the QuickConnect
TM
function unused.

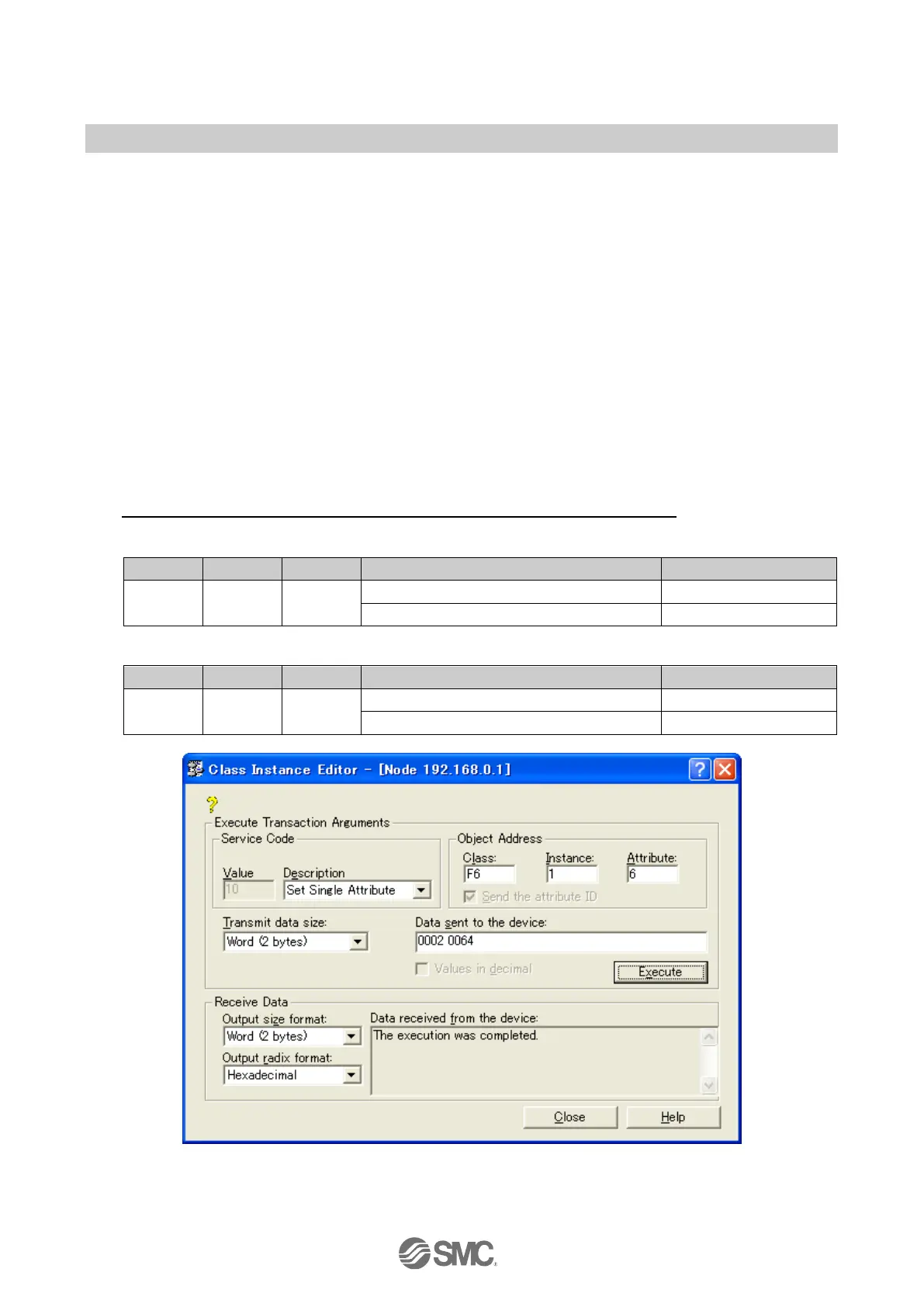

(1) Bus IN port setting
To Next Page
