System Outline

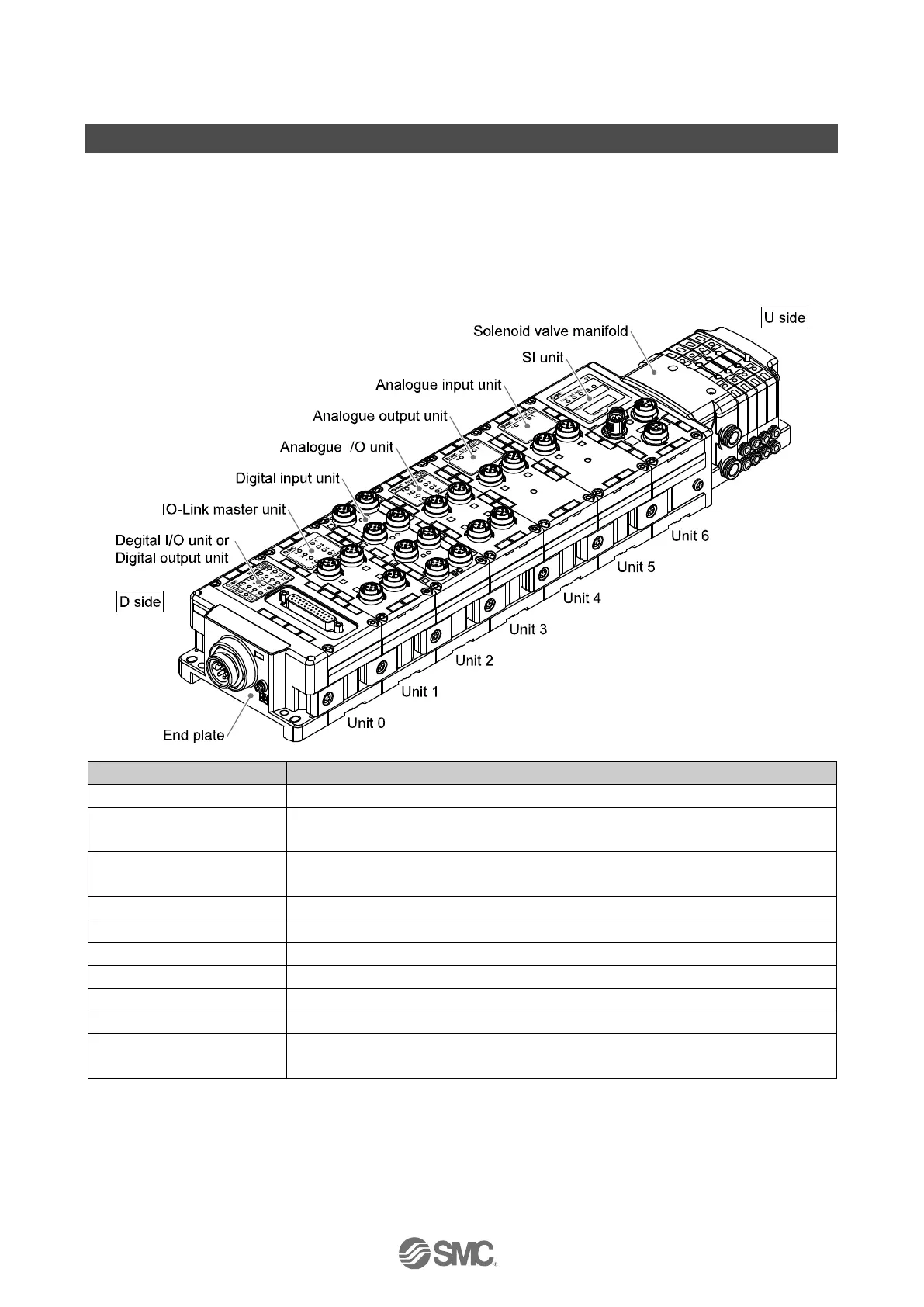

System configuration
The EX600 range of units can be connected to various types of fieldbus to realize the reduction of input or
output device wiring and the distributed control system.
The unit communicates with the fieldbus through the SI unit.
One SI unit can be connected with manifold valves with up to 32 output s and the input • output • I/O • IO-Link
master units with maximum 10 units.
Maximum numbers of connected IO-Link master units is 4.
Name
Function
SI unit
Performs fieldbus communication and solenoid valve manifold ON/OFF output.
Digital input unit
For connecting sensors with switch output capability. PNP and NPN types are
available.
Digital output unit
For connecting output device such as solenoid valves, lamps, buzzers, etc. PNP and
NPN types are available.
Digital I/O unit
This unit has both digital input and output functions. PNP and NPN types are available.
Analogue input unit
For connecting sensors with analogue output capability.
Analogue output unit
This can be connected to the equipment which can read analogue input.
Analogue I/O unit
This unit has both analogue input and output functions.
IO-Link master unit
Compatible with IO-Link devices. There are two port types, class A and class B.
End plate
Connected at EX600 Manifold’s D side, incorporating the power supply connection.
Solenoid valve manifold
An assembly of solenoid valves. One connector is used as the electric connection to all
connected valves.
