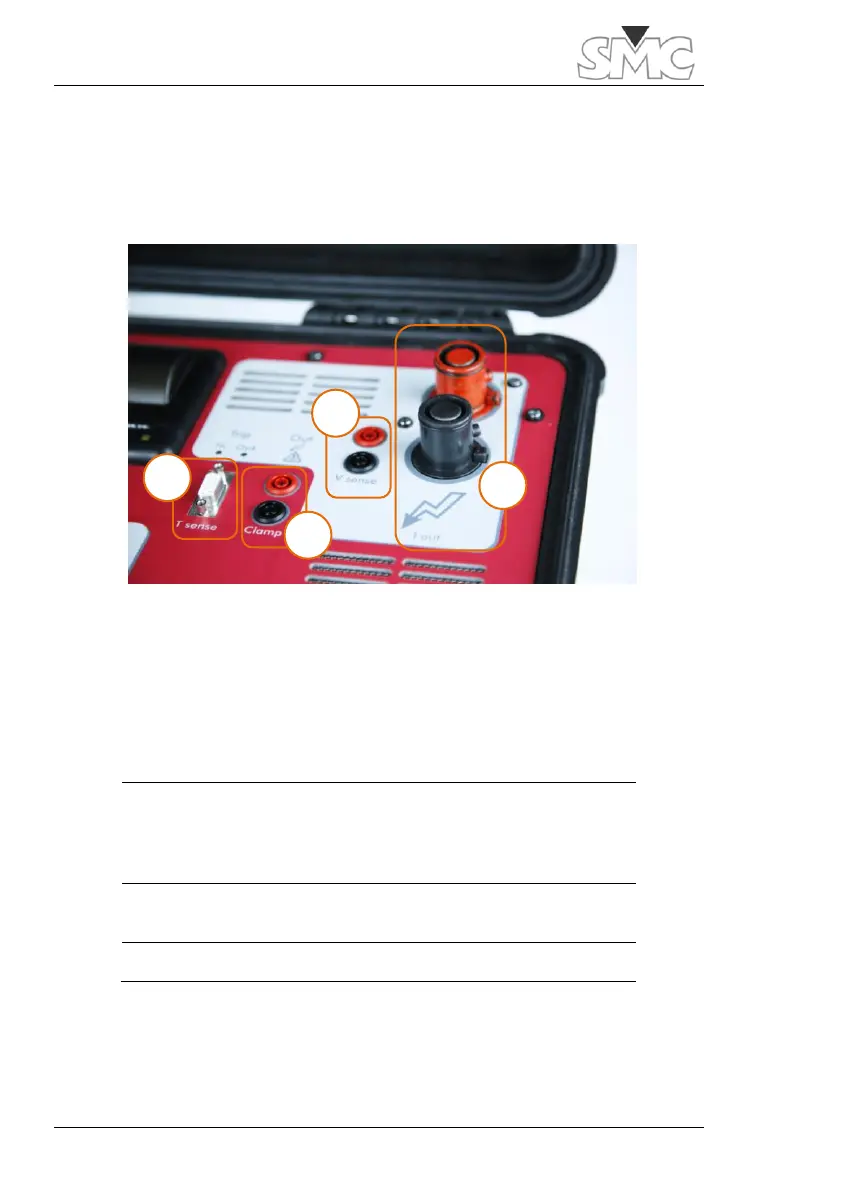

Prime – 600 (Measurement panel).
1
External temperature measurement.
Temperature 4-20 mA optical transducer input.
Used to compensate the resistance
measurement according to the temperature.
2
Clamp measurement connection.
“Dual Ground Clamp” live measurement input.
Its function is to compensate the current that
leaks to ground when calculating the resistance.
3
Voltage measurement connections.
To calculate the resistance tested.
4
Current injection connections.
4
3
2
1
