Prime - 600
58

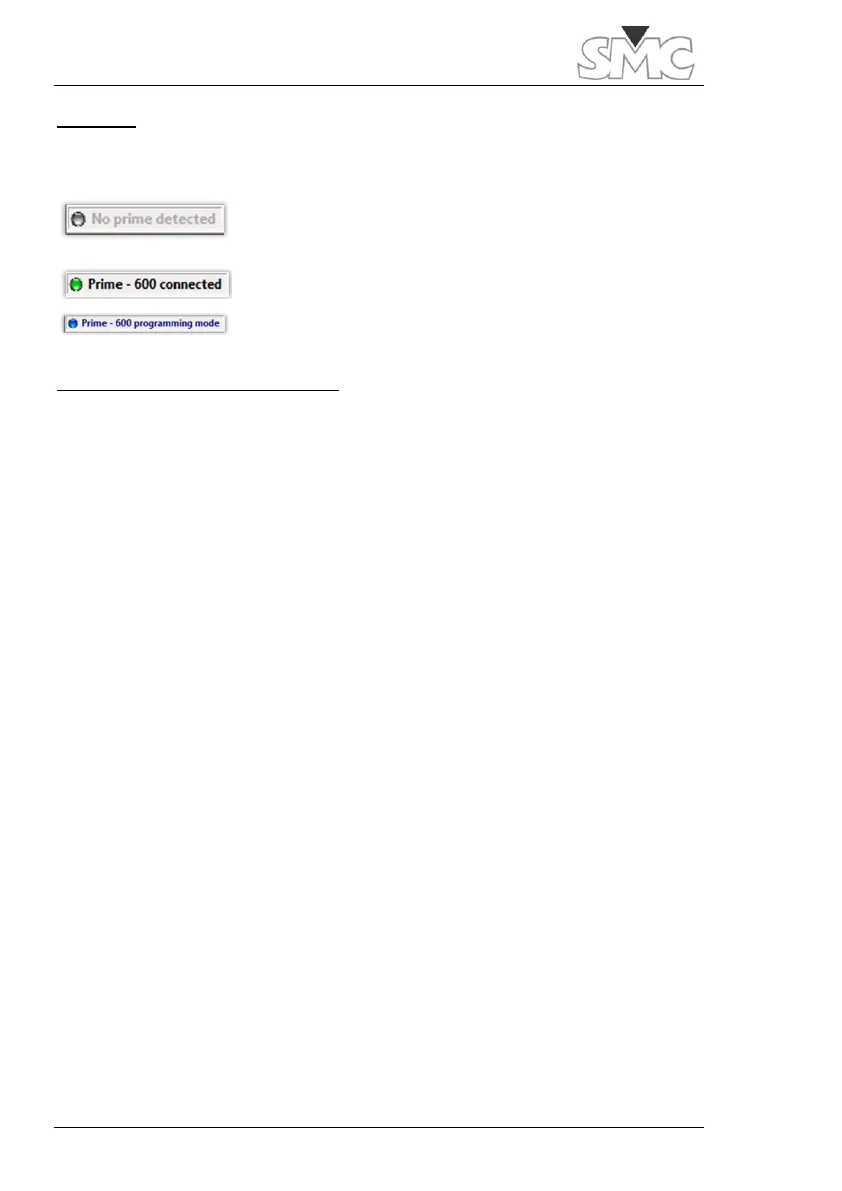

Status bar
This shows the information about the connection status with the Prime – 600.
Preparation to update the equipment
The equipment updating consists in saving new firmware in the equipment, using
the Primesync application for this task, through a USB connection between the
PC and the Prime – 600.
1. Connect the PC to Prime - 600 with a USB cable (from an available USB
port in the PC to the port indicated as USB-B on the front of the Prime –
600.)
2. Establish Programming Mode in Prime – 600.
a. Turn off Prime – 600.
b. After turning it off, press the rotary dial on the front of the Prime –
600 K and keep it pressed.
c. Keeping it pressed, start up the Prime – 600 equipment. The
luminous Remote indicator on the front of the equipment (blue)
must flash on and off in this status. The front screen must not
show any information.
d. At this point it is in Programming mode.
3. We open the PrimeSync application (if it is not open already) and on
the bottom of the window the indicator of the mode in which the
connection with the Prime – 600 has been connected (in this case
programming mode) must appear. The button of the action bar for
programming must also be enabled.
Prime – 600 is not connected by the USB cable to the
PC where PrimeSync is executed.
Prime – 600 is connected in normal work mode.
Prime – 600 connected in programming mode
